Schiltknecht Messtechnik MiniAir60 [MINIAIR60] Probe Anemometers

Schiltknecht Messtechnik MiniAir60 [MINIAIR60] Probe Anemometers
Schiltknecht Messtechnik MiniAir60 [MINIAIR60] Probe Anemometers
0 reviews • Write a review
from
Rp.24,599,9680
Schiltknecht Messtechnik Schiltknecht Messtechnik
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: AAB , ABM-100 , Smartphone , Anemometer

The MiniAir 60 is a vane anemometer for measuring the flow velocities of gases with a linear frequency output. The MiniAir 60 provides a 0-4vDC/TTL output relative to flow velocity ranges of up to 20m/s or 40m/s with Micro, Mini and Macro sized turbines. The units require a 4.5-5.5vDC power supply and the standard plastic, Aluminium probes can be used up to 80°C, with units available with separate electronics and Steel probes suitable for up to 250°C. The sensors are simple to install and can be easily integrate into a fixed system with other instrumentation including data loggers or displays.

The MiniAir 60 range of anemometers are designed with at least two component parts. A vane anemometer and probe handle. The probe handle contains all the electronic components and comes with 2m cable with flying leads. All plastic heads are designed to be replaceable with an Aluminium vane for non-aggressive gases and a Steel vane for aggressive gases. Probes for higher temperatures applications are supplied with a fully Steel head and turbine that is screwed to the probe handle and is not replaceable.

In anemometry, the accuracy achieved by a vane probe is acknowledged to be unmatched. The vane rotation is closely linear to flow velocity and is unaffected by pressure, temperature, density and humidity. In the MiniAir probes, as each metal blade passes the probe handle, a pulse is generated by a simple magnetic pick up in the handle. The electronics of the MiniAir 60 reads the pulse and converts these readings to a linear frequency signal.

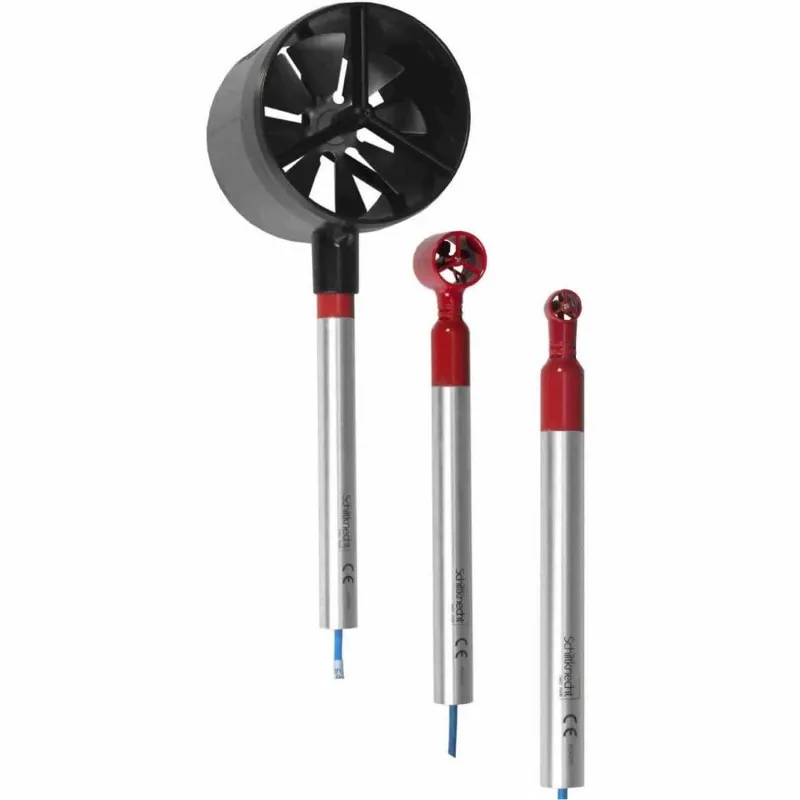

The MiniAir vane anemometers are available in three different sizes: Micro; Mini; and Macro, with two different flow ranges available for each: 0-20ms; and 0-40m/s. The standard probes are a synthetic plastic construction snap head with an Aluminium vane turbine and handle. A Steel vane and handle option is available for aggressive gases and a full Steel anemometer for high temperature applications up to 250°C.

Features:

  • MiniAir60: Micro 20 m/s
  • MiniAir60: Micro 40 m/s
  • MiniWater60: Micro 5 m/s
  • MiniAir60: Mini 20 m/s
  • MiniAir60: Mini 40 m/s
  • MiniWater60: Mini 5 m/s
  • MiniAir60 Macro: 20 m/s

What's In The Box:
  • (1) MiniAir 60 Micro vane anemometer
  • (1) Instruction manual
  • (1) Display and accesories (Sold Separately)

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice

  MiniAir 60 Probe Anemometers with Linear Frequency Outputs 0 Item Selected
Model
Product Name
Price
Available
Quantity
[MINI60112] MiniAir 60 Micro vane anemometer, 0-20m/s
MINI60112
Rp.25,500,0800
1 Availability
[MINI60114] MiniAir 60 Micro vane anemometer, 0-40m/s)
MINI60114
Rp.26,700,0160
1 Availability
[MINI60122] MiniAir 60 Mini vane anemometer, 0-20m/s
MINI60122
Rp.24,599,9680
1 Availability
[MINI60124] MiniAir 60 Mini vane anemometer, 0-40m/s
MINI60124
Rp.25,700,0160
1 Availability
[MINI60132] MiniAir 60 Macro vane anemometer, 0-20m/s
MINI60132
Rp.34,500,0800
1 Availability
[MINI60134] MiniAir 60 Macro vane anemometer, 0-40m/s
MINI60134
Rp.34,500,0800
1 Availability
