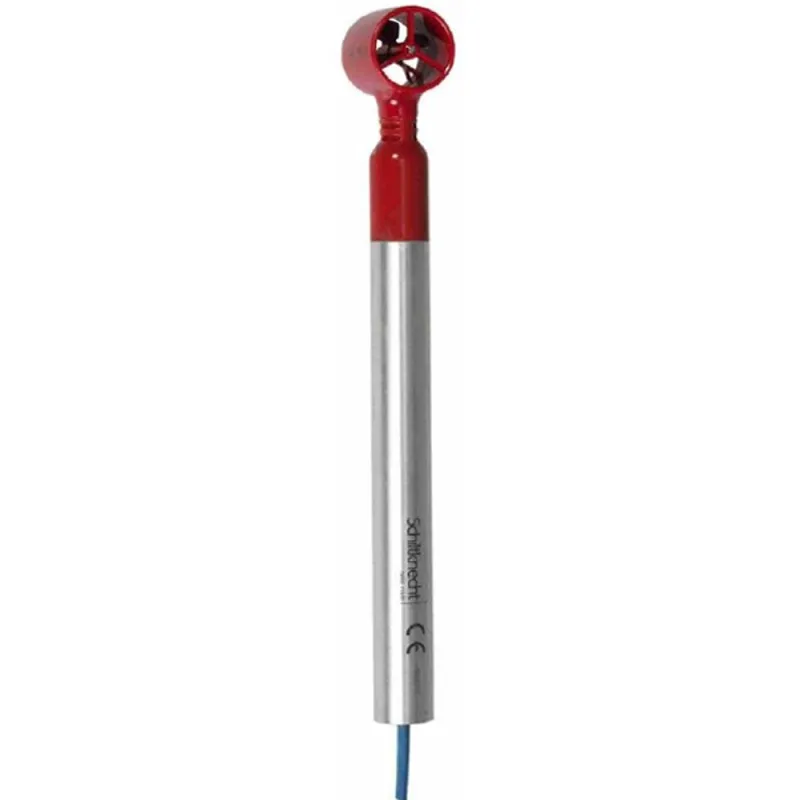

Name: Schiltknecht Messtechnik MiniAir64 [MINI64124] Mini Vane Anemometer, 0-40m/s with 2-wire 4-20mA Output
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Schiltknecht Messtechnik MiniAir64 [MINI64124] Mini Vane Anemometer, 0-40m/s with 2-wire 4-20mA Output

0 reviews • Write a review

from

Rp.24,500,000

Brand: Schiltknecht Messtechnik
Part Number: MINI64124
Availability: 3 - 4 WEEKS
Last Updated: 28 Jan 2020

Schiltknecht Messtechnik

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: AAB , ABM-100 , Smartphone , Anemometer

Description

The MiniAir64 vane anemometers provide a 4-20mA output relative to the flow velocity ranges of up to 20m/s or 40m/s. The units are simple to install or use as part of a fixed system or in conjunction with data loggers, displays or portable indicators. The sensors operate from a 9-24vDC power supply. The operating temperatures of the standard MiniAir64 probe is -10 to +80°C. High temperature units can be supplied with external electronics and probe operating temperature ranges up to 140°C.

The MiniAir 64 range of anemometers are designed with at least two component parts. A vane anemometer and probe handle. The probe handle contains all the electronic components and comes with 2m cable with flying leads. All plastic heads are designed to be replaceable with an Aluminium vane for non-aggressive gases and a Steel vane for aggressive gases. Probes for higher temperatures applications are supplied with a fully Steel head and turbine that is screwed to the probe handle and is not replaceable.

In anemometry, the accuracy achieved by a vane probe is acknowledged to be unmatched. The vane rotation is closely linear to flow velocity and is unaffected by pressure, temperature, density and humidity. In the MiniAir probes, as each metal blade passes the probe handle, a pulse is generated by a simple magnetic pick up in the handle. The electronics of the MiniAir 64 reads the pulse and converts these readings to a linear 4-20mA output.

The MiniAir vane anemometers are available in three different sizes: Micro; Mini; and Macro, with two different flow ranges available for each: 0-20ms; and 0-40m/s. The standard probes are a synthetic plastic construction snap head with an Aluminium vane turbine and handle. A Steel vane and handle option is available for aggressive gases and a full Steel anemometer for high temperature applications up to 250°C.

MiniAir 64 Mini vane anemometer. Sensing head 22mm diameter x 28mm, probe length 175mm. Air velocity range 0-40m/s with a 2-wire 4-20mA output. Accuracy ±0.5% of full scale, ±1.5% of reading. Power supply 9-24vDC Sensor is supplied with 2m cable. Operating range -10 to +80°C. Plastic sensing head with Aluminium blade turbine suitable for non-aggressive gas flow measurements

Features:

Range 20m/s: 0.3 - 20 m/s
Range 40m/s: 0.5 - 40 m/s
Accuracy: ±0.5% full scale; ±1.5% reading
Operating Temp: -10 to +80°C
Power Supply: 9 - 24vDC
Output Signal: 4-20mA
Head Dimensions: ø 22 x 28 mm
Access Opening: 35mm
Probe Length: 175mm
able Length 2 m Cable

What's In The Box:

(1) MiniAir64 Vane Anemometers
(1) Sensing head 22mm diameter x 28mm, probe length 175mm
(1) Instruction manual
(1) Display and accesories (Sold Separately)

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
