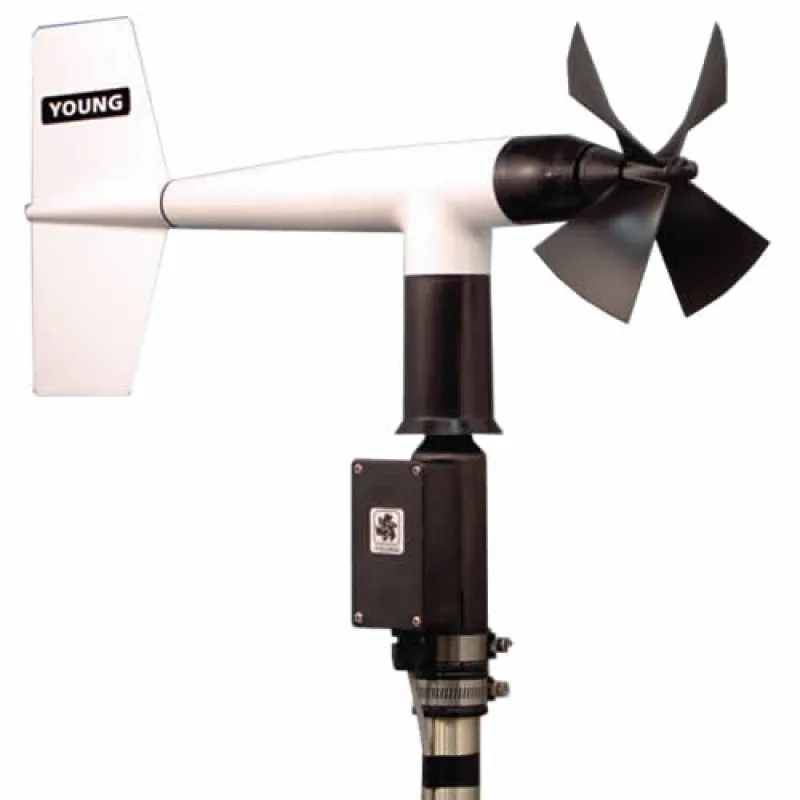

RM Young 05103 [05103] Wind Speed & Direction Monitor

RM Young 05103 [05103] Wind Speed & Direction Monitor
RM Young 05103 [05103] Wind Speed & Direction Monitor
from
Rp.40,800,0000
Ex Tax: Rp.40,800,0000
  • Brand: RM Young
  • Part Number: 05103
  • Availability: 4 - 6 WEEKS
  • Last Updated: 03 Jan 2024
RM Young RM Young
Add to Cart
Add to Wish List Compare this Product
Tags: RM Young , Ultrasonic , Anemometer , Analog , Serial Outputs

The RM Young wind monitor is a field proven, high performance wind sensor. The wind speed sensor is a four blade helicoid propeller. Propeller rotation produces an AC sine wave voltage signal with frequency directly proportional to wind speed. Slip rings and brushes are eliminated for increased reliability.

The wind direction sensor is a rugged yet lightweight vane with a sufficiently low aspect ratio to assure good fidelity in fluctuating wind conditions. Vane angle is sensed by a precision potentiometer housed in a sealed chamber. With a known excitation voltage applied to the potentiometer, the output voltage is directly proportional to vane angle. A mounting orientation ring assures correct realignment of the wind direction reference when the instrument is removed for maintenance.

The instrument is made of UV stabilized plastic with stainless steel and anodized aluminum fittings. Precision grade, stainless steel ball bearings are used. Transient protection and cable terminations are in a convenient junction box. The instrument mounts on standard 1" pipe.

The Wind Monitor is available with two additional output signal options. Model 05103V offers calibrated 0-5 VDC outputs, convenient for use with many data loggers, including the NexSens iSIC data logger. Model 05103L provides a calibrated 4-20 mA current signal for each channel, useful in high noise areas or for long cables (up to several kilometers). Signal conditioning electronics are integrated into the sensor junction box.
