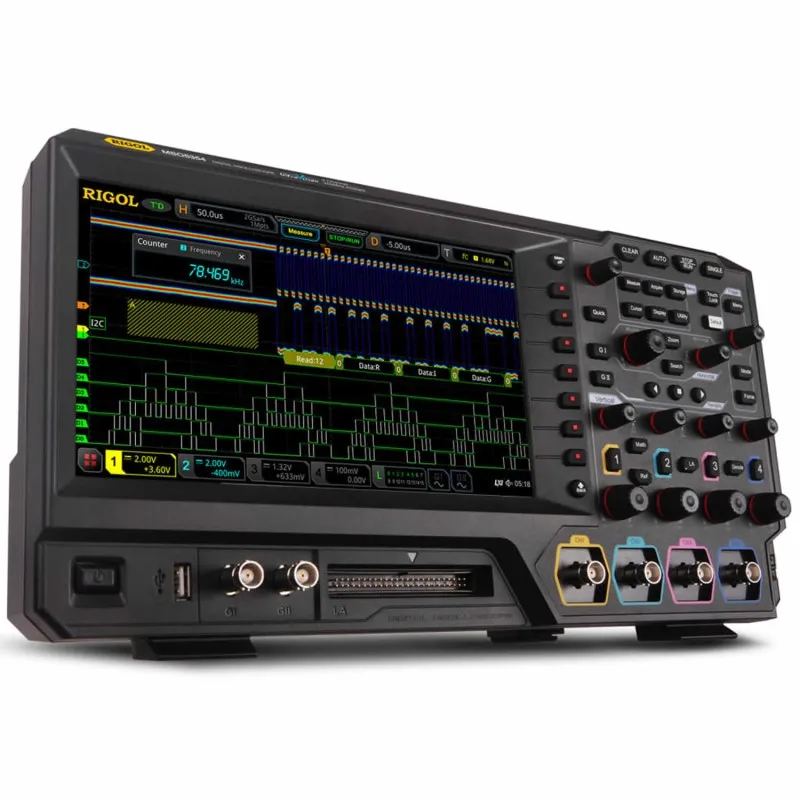

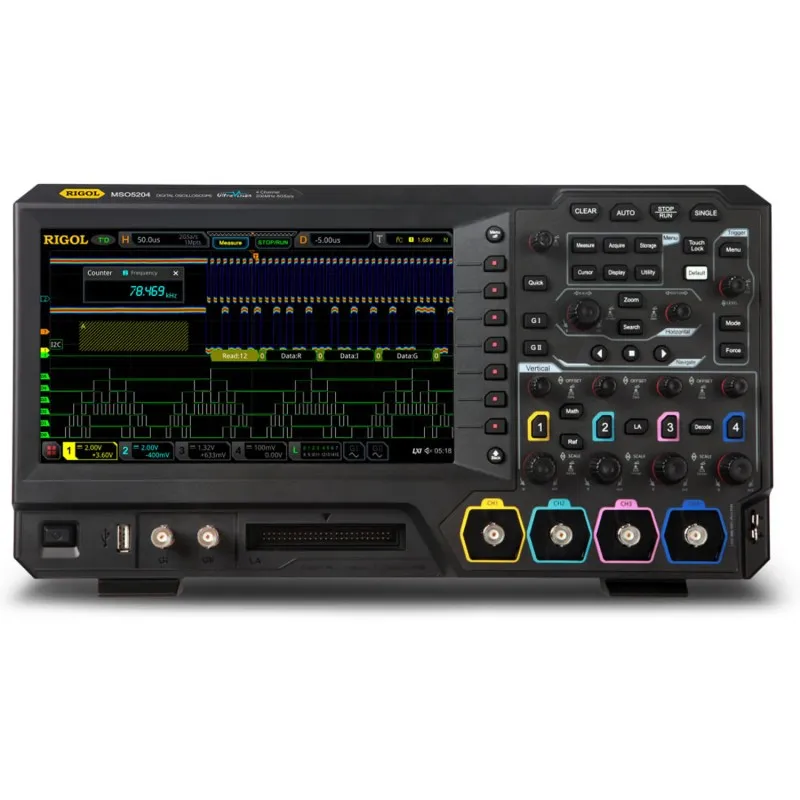

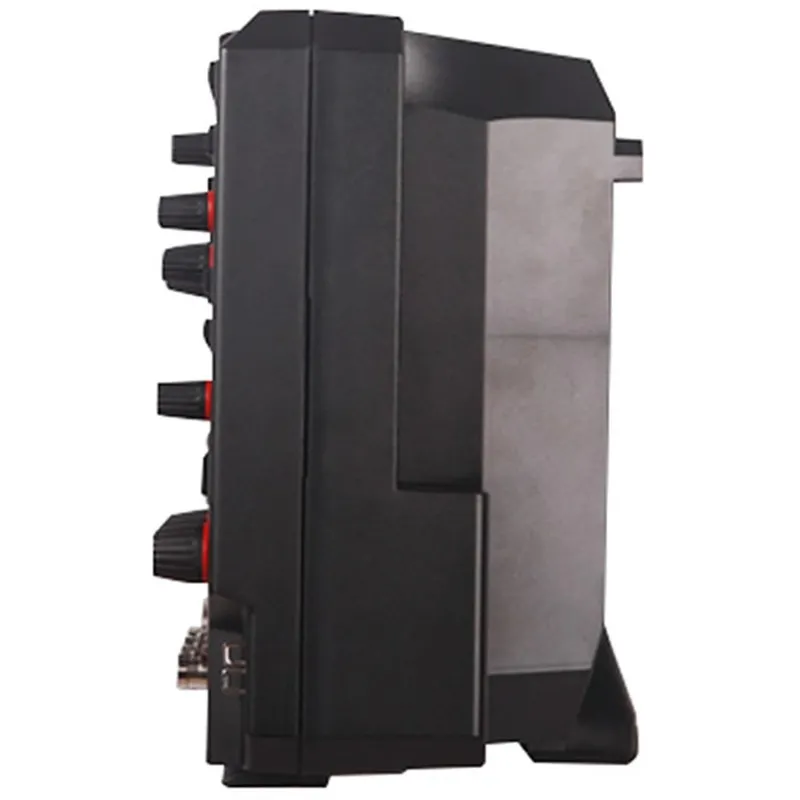

Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope

Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
Rigol MSO5000 Series [MSO5204] 200 MHz 4-Channel Digital / Mixed Signal Oscilloscope
from
Rp.54,850,0000
Ex Tax: Rp.54,850,0000
  • Brand: Rigol
  • Part Number: MSO5204
  • Availability: 4 - 6 WEEKS
  • Last Updated: 20 Dec 2023
Tags: Fluke , Basic , Battery , Analyzer

The MSO5204 is a high-performance 200MHz 4-ch oscilloscope model designed based on RIGOL UltraVision II technology, with optional 16-ch logic analysis capability. Sampling at 8GSa/s, and with a huge 100Mpt (200Mpts opt.) memory, and fast waveform capture rate (over 500,000wfm/s), the MSO5204 integrates 7 independent instruments into one: digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a 6-digit frequency counter and totalizer, and a serial protocol analyzer.  The 9” touch-screen LCD offers 256-levels of intensity grading with color persistence.   With convenient control via a capacitive multi-touch screen or conventional knob/keystroke entry, all of the MSO5000 series products support multiple channels, bandwidths, and the upgrade of the analysis software.

A unique feature of these MSO5000 oscilloscopes is that their upgradeability: 2-channel models can be upgraded to 4-channel, 16-ch logic capability, higher bandwidth, or adding a 2-ch 14-bit 25MHz arbitrary waveform generator at any time.  All MSO5000 models come with the built-in hardware required for these features.  All that is need to make an MS5000 oscilloscope into a full MSO is the purchase of a PLA2216 16-ch probe set, or just a software key for the other capabilities.
