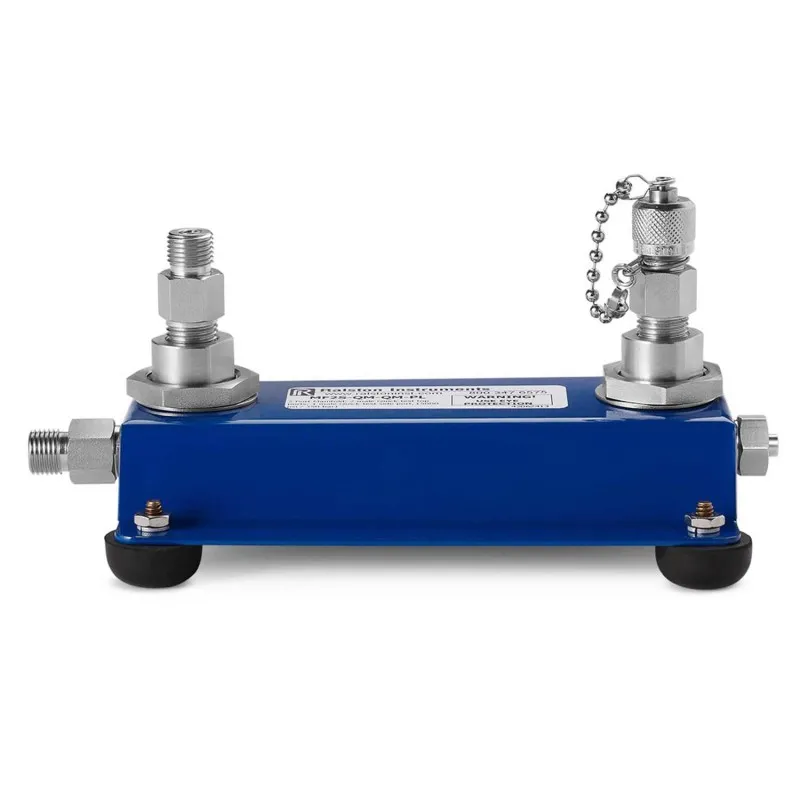

Ralston MF2S [MF2S-QM-QM-PL] 2-Port Benchtop Manifold with Quick-Test Connections, 5000 psi (350 bar) *DISCONTINUED SEE MF2S-QM*

Ralston MF2S [MF2S-QM-QM-PL] 2-Port Benchtop Manifold with Quick-Test Connections, 5000 psi (350 bar) *DISCONTINUED SEE MF2S-QM*
Ralston MF2S [MF2S-QM-QM-PL] 2-Port Benchtop Manifold with Quick-Test Connections, 5000 psi (350 bar) *DISCONTINUED SEE MF2S-QM*
from
Rp.18,500,0000
  • Brand: Ralston Instruments
  • Part Number: MF2S-QM-QM-PL
  • Availability: DISCONTINUED
  • Last Updated: 07 Dec 2023

The Ralston MF2S-QM-QM-PL 2-Port Benchtop Manifold with Quick-Test Connections can test multiple pressure instruments at the same time, at up to 5000 psi (350 bar). The benchtop manifold therefore allows users to simultaneously calibrate multiple pressure gauges, transmitters or transducers. It features vertically mounted ports, which are spaced far enough apart to ensure that larger gauges will fit easily. Users can quickly pressurize the system using a Quick-test hose (sold separately). In addition, pressure connections on devices under test can be switched without a wrench.

The benchtop manifold is compatible with all Ralston Quick-test NPT, BSP, and flare gauge adapters. It is excellent for calibrating multiple pressure instruments in a thermal chamber. The second side connection can be used to daisy-chain multiple manifolds together (additional units sold separately).
