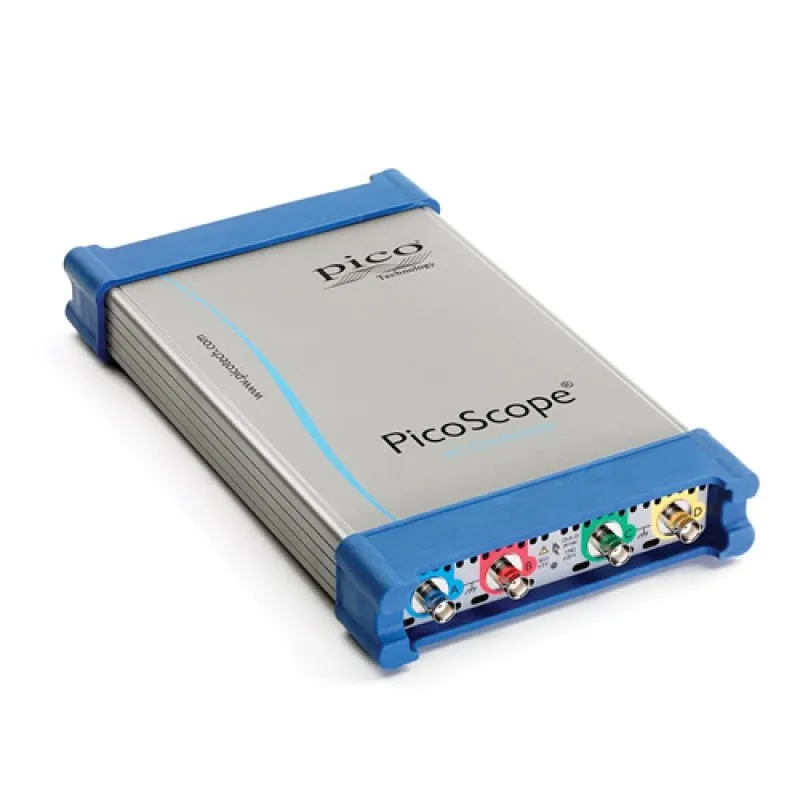

Pico Technology PicoScope 6000 Series 6407 [PP795] 1 GHz, 4-Channel, 8-Bit High-speed USB Oscilloscope / Digitizer

Pico Technology PicoScope 6000 Series 6407 [PP795] 1 GHz, 4-Channel, 8-Bit High-speed USB Oscilloscope / Digitizer
Pico Technology PicoScope 6000 Series 6407 [PP795] 1 GHz, 4-Channel, 8-Bit High-speed USB Oscilloscope / Digitizer
0 reviews • Write a review
from
Rp.234,500,0000
Ex Tax: Rp.234,500,0000
  • Brand: Pico Technology
  • Part Number: PP795
  • Availability: 4 - 6 WEEKS
  • Last Updated: 04 Jul 2024
Pico Technology Pico Technology
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

High–speed data acquisition
The PicoScope 6407 Digitizer is a compact USB plug–in device that turns your PC or laptop into a 4–channel, high–speed digitizer. With a PicoScope 6407 you can easily digitize a 1 GHz  sine wave with a timing resolution of 200 ps.

Huge buffer memory
Your PicoScope 6407 digitizer has a memory depth of one billion samples. Other digitizers have high maximum sampling rates, but without the deep memory of the PicoScope 6407 they can’t sustain these rates on long timebases. Your PicoScope 6407 can sample at 5 GS/s  at timebases all the way down to 20 ms/div, giving a total acquisition time of 200 ms. If that’s not enough, the driver supports streaming mode for capturing unlimited gap–free data directly to your PC’s RAM or hard disk at over 10 MS/s.

The large buffer enables the use of segmented memory. Each captured waveform segment is stored in the buffer so you can rewind and review thousands of previous waveforms. No longer will you see a glitch on the screen only for it to vanish before you stop the scope.

Advanced triggers
As well as the standard range of triggers found on all oscilloscopes, your PicoScope 6407 offers a comprehensive set of advanced triggers including pulse width, windowed and dropout triggers to help you capture the data you need.

USB–connected. Why make things difficult?
Many digitizers use complicated — and often expensive — interfaces to connect the digitizer to your PC. The PicoScope 6407 doesn’t. Your PicoScope high–speed digitizer simply connects to a USB port on any compatible Windows–based PC or laptop. So there’s no need to buy a separate interface or waste time dismantling your PC to connect the digitizer. (The ability to just plug–in your digitizer to a USB port, along with the small size and weight of the PicoScope 6407, also means that you can take your PicoScope Digitizer with you — giving you access to a high–speed digitizer wherever you are.)
