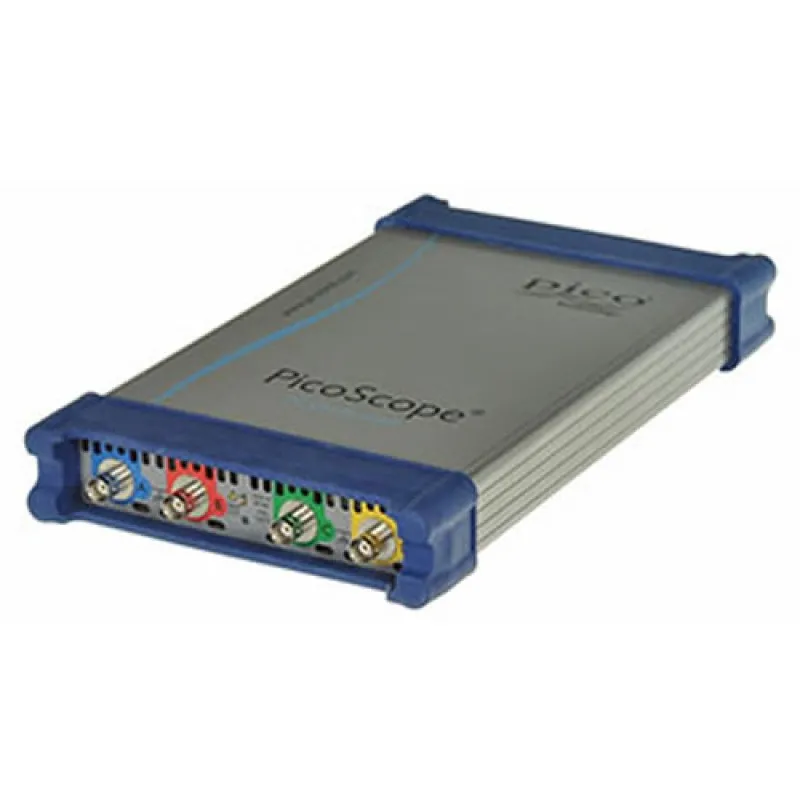

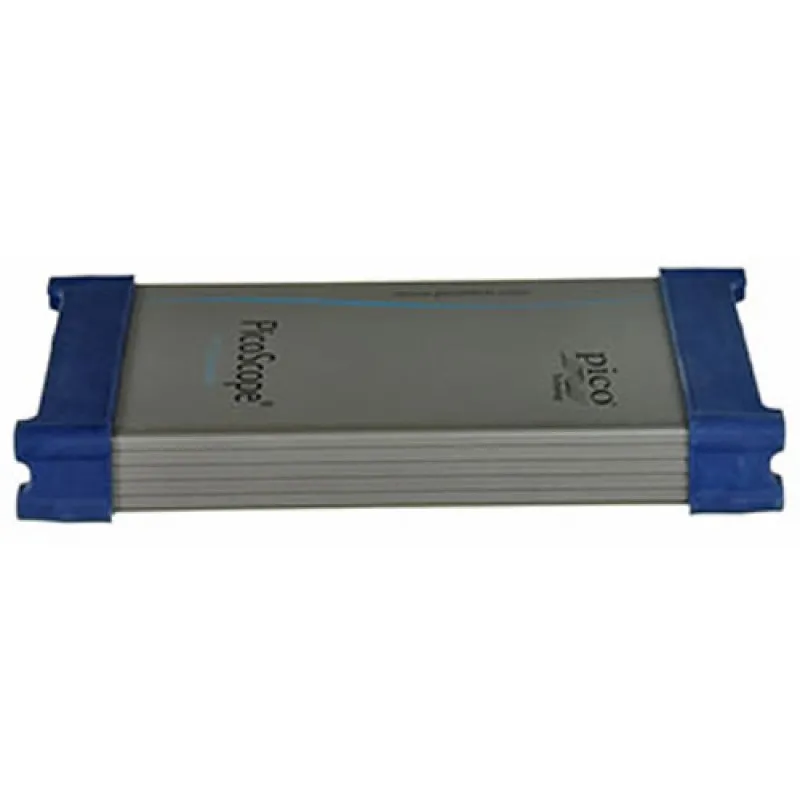

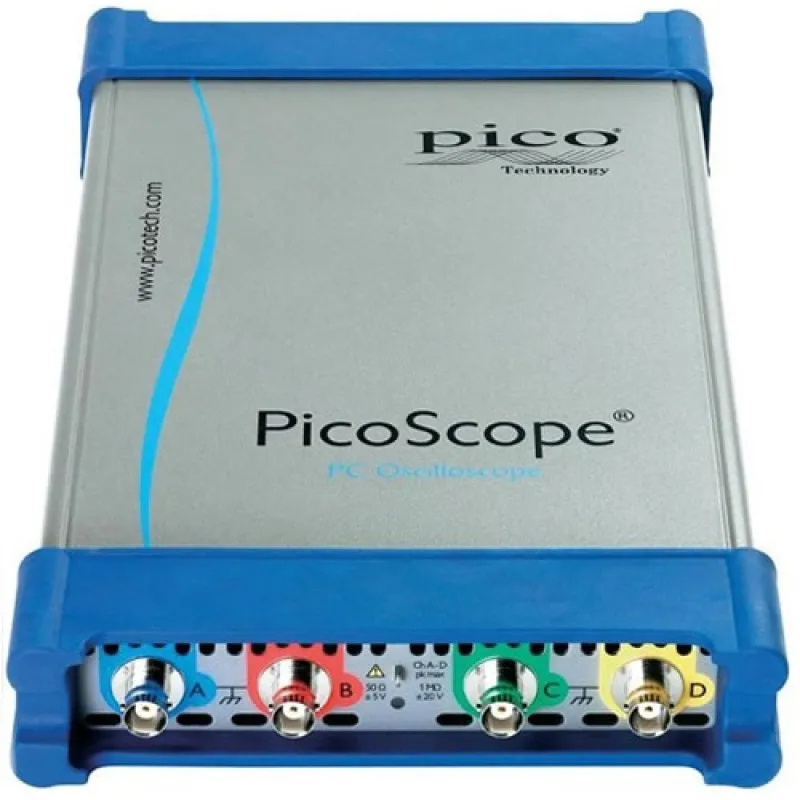

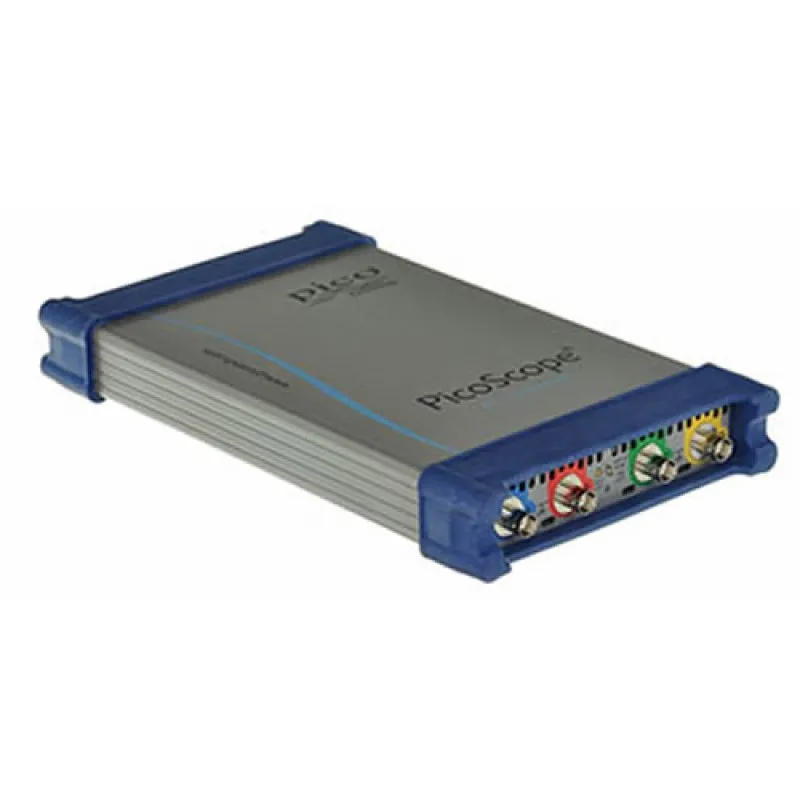

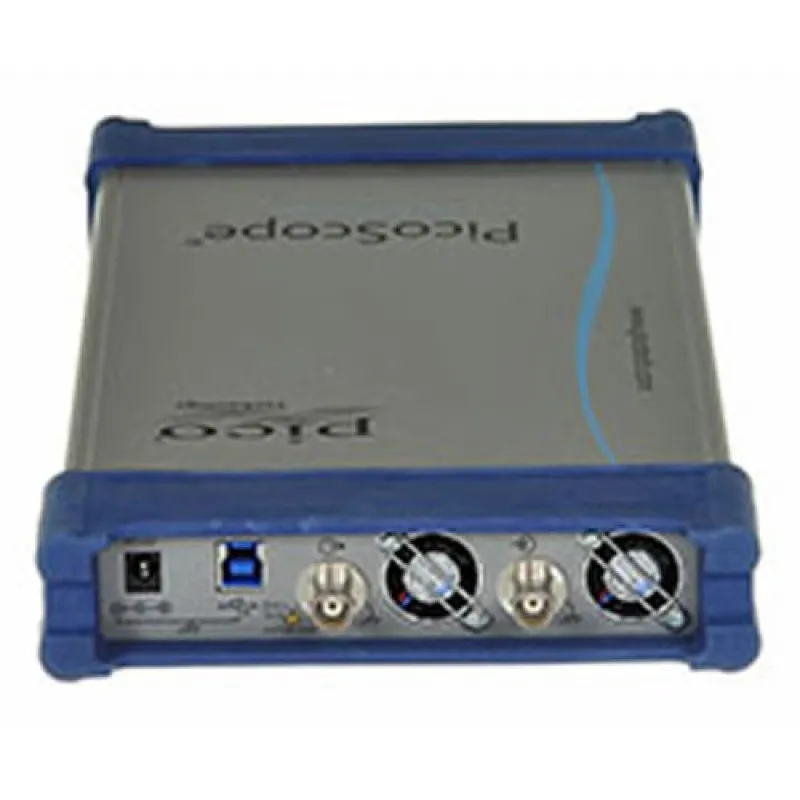

Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes

Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
Pico Technology PicoScope 6000 Series 6403D [PP887] 350MHz, 4-Channel, USB Oscilloscope with AWG and Probes
from
Rp.139,500,000
Ex Tax: Rp.139,500,000
  • Brand: Pico Technology
  • Part Number: PP887
  • Availability: 4 - 6 WEEKS
  • Last Updated: 04 Jul 2024
Pico Technology Pico Technology
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Best-in-class bandwidth, sampling rate and memory depth
With 250 MHz to 500 MHz analog bandwidths complemented by a real-time sampling rate of 5 GS/s, the PicoScope 6000 Series scopes can display single-shot pulses with 200 ps time resolution. Equivalent time sampling (ETS) mode boosts the maximum sampling rate to 50 GS/s, giving an even finer timing resolution of 20 ps for repetitive signals.

The PicoScope 6000 Series gives you the deepest buffer memory available as standard on any oscilloscope at any price. The SuperSpeed USB 3.0 interface and hardware acceleration ensures that the display is smooth and responsive even with long captures. Other oscilloscopes have high maximum sampling rates, but without deep memory they cannot sustain these rates on long timebases. The 2-gigasample buffer on the PicoScope 6404D can hold two 200 ms captures at the maximum sampling rate of 5 GS/s. To help manage all this data, PicoScope can zoom up to 100 million times using a choice of two zoom methods. There are zoom buttons as well as an overview window that lets you zoom and reposition the display by simply dragging with the mouse.

Hardware Acceleration Engine (HAL4)
Some oscilloscopes struggle when you enable deep memory; the screen update rate slows and controls become unresponsive. The PicoScope 6000 Series avoids this limitation with use of a dedicated hardware acceleration engine inside the oscilloscope. Its massively parallel design effectively creates the waveform image to be displayed on the PC screen and allows the continuous capture and display to the screen of 2.5 billion samples every second.

PicoScope oscilloscopes manage deep memory better than competing oscilloscopes, both PC-based and benchtop.
The PicoScope 6000 Series is fitted with fourth-generation hardware acceleration (HAL4). This speeds up areas of oscilloscope operation such as allowing waveform update rates in excess of 170 000 waveforms per second and the segmented memory/rapid trigger modes. The hardware acceleration engine ensures that any concerns about the USB connection or PC processor performance being a bottleneck are eliminated.

170 000 waveforms per second
An important specification to understand when evaluating oscilloscope performance is the waveform update rate, which is expressed as waveforms per second. While the sample rate indicates how frequently the oscilloscope samples the input signal within one waveform, or cycle, the waveform capture rate refers to how quickly an oscilloscope acquires waveforms.

Oscilloscopes with high waveform capture rates provide better visual insight into signal behavior and dramatically increase the probability that the oscilloscope will quickly capture transient anomalies such as jitter, runt pulses and glitches – that you may not even know exist.

PicoScope deep memory oscilloscopes use hardware acceleration to achieve over 170 000 waveforms per second.

Waveform buffer and navigator
Ever spotted a glitch on a waveform, but by the time you’ve stopped the scope it has gone? With PicoScope you no longer need to worry about missing glitches or other transient events. PicoScope can store the last ten thousand oscilloscope or spectrum waveforms in its circular waveform buffer.

The buffer navigator provides an efficient way of navigating and searching through waveforms, effectively letting you turn back time. Tools such as mask limit testing can also be used to scan through each waveform in the buffer looking for mask violations.

Signal integrity
Most oscilloscopes are built down to a price. PicoScopes are built up to a specification.

Careful front-end design and shielding reduces noise, crosstalk and harmonic distortion. Years of oscilloscope design experience can be seen in improved bandwidth flatness and low distortion.

We are proud of the dynamic performance of our products and, unlike most oscilloscope manufacturers, publish our specifications in detail. The result is simple: when you probe a circuit, you can trust in the waveform you see on the screen.

USB connectivity
The USB connection not only allows high-speed data acquisition and transfer, but also makes printing, copying, saving, and emailing your data from the field quick and easy.

PicoScope 6000 Series oscilloscopes feature a SuperSpeed USB 3.0 connection, making the already-optimized process of data transfer and waveform update rates even faster. Further benefits of a USB 3.0 connection include faster saving of waveforms and faster gap-free continuous streaming of over 150 MS/s when using the SDK, while the scope is still backward-compatible with older USB systems.
