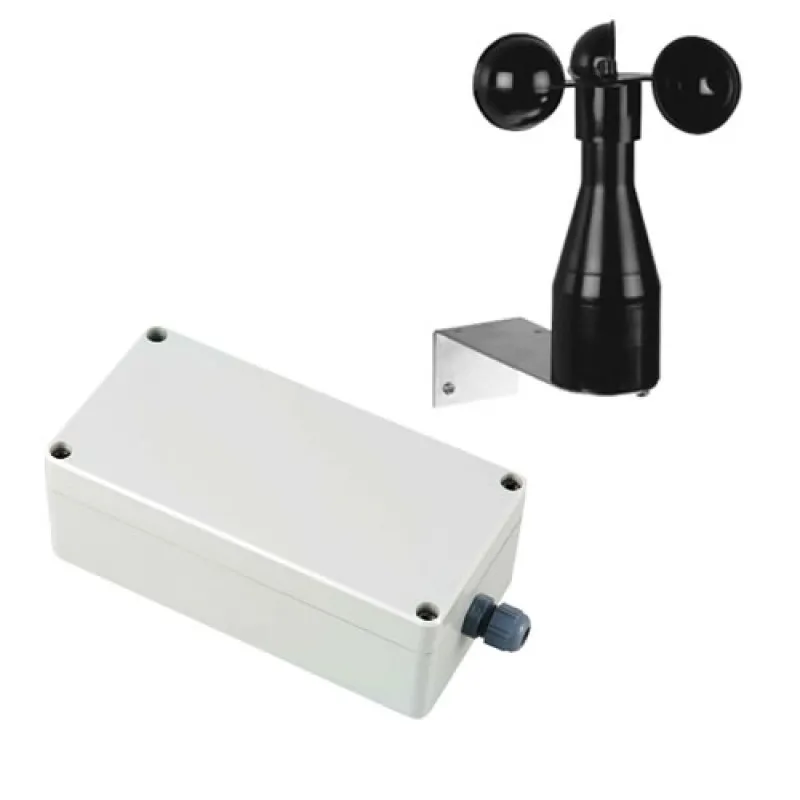

PCE Instruments PCE-WL1[PCE-WL 1] Air Velocity Meter

PCE Instruments PCE-WL1[PCE-WL 1] Air Velocity Meter
PCE Instruments PCE-WL1[PCE-WL 1] Air Velocity Meter
0 reviews • Write a review
from
Rp.25,500,0000
  • Brand: PCE Instruments
  • Part Number: PCE-WL-1
  • Availability: 4 - 6 WEEKS
  • Last Updated: 03 Jul 2024
PCE Instruments PCE Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Fluke , Basic , Battery , Analyzer

Air Velocity Meter PCE-WL 1For long-term measurements of the wind speed / microSD card storage battery operation up to 3 years / operating temperature: -15 ... +50 °C internal temperature sensor / 2 digital inputs / 1 analogue input / 1 NTC input.
The air velocity meter PCE-WL 1 is an ideal tool to measure and store the wind speed over a long period of time. The battery operation enables you to use the airflow meter for mobile applications. Since a wind power station is an expensive investment, you usually want to know what profits it will generate in advance. The air velocity meter PCE-WL1 helps you determine these profits. The measurement data is recorded on a microSD memory card. The user can select the desired measurement rate (1 min or 10 min) when setting up the device. The flow meter creates a report file once a month which is saved in *.csv format. The *.csv files stored on the microSD memory card can be transmitted to a computer via the RS-232 interface and can be analyzed there by using Excel. This way, it is possible to determine the optimal location for a wind power station. The device comes with two digital inputs where you can connect sensors with isolated contacts, Hall effect devices, TTL signals and output SO-signals. The flow meter has an analog input to record the wind direction, as well as a NTC input for an external temperature sensor. The flow meter is configurated via an RS-232 port. This option also allows real-time data transmission. The cup wind sensor of the flow meter does not need to be aligned with the wind direction to measure the horizontal wind speed. The dynamic and supportive materials are made of plastic and ensure a safe and almost maintenance-free condition. The resolution of the wind speed measurement is 0.4 m / s. The L-bracket for mounting that is included in the delivery easily holds the wind sensor. The wind sensor also comes with a built-in heater (needs an external power source), which warms up the device for an optimal performance at low temperatures in winter.
