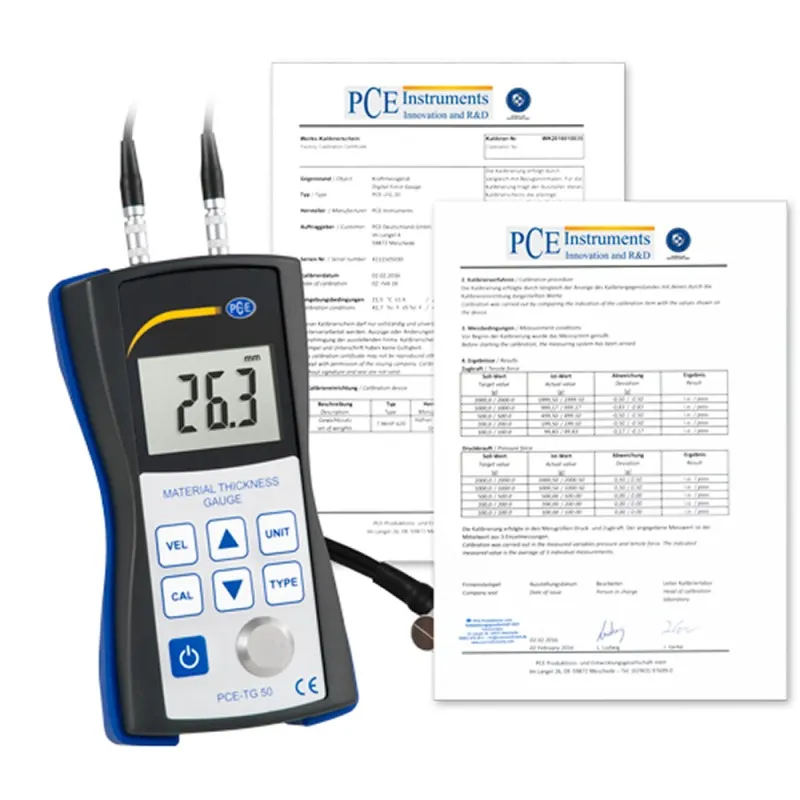

PCE Instruments PCE-TG 50 [PCE-TG 50] Ultrasonic Material Thickness Meter

PCE Instruments PCE-TG 50 [PCE-TG 50] Ultrasonic Material Thickness Meter
PCE Instruments PCE-TG 50 [PCE-TG 50] Ultrasonic Material Thickness Meter
0 reviews • Write a review
from
Rp.20,500,0000
  • Brand: PCE Instruments
  • Part Number: PCE-TG-50
  • Availability: 2 - 4 WEEKS
  • Last Updated: 02 Jul 2024
PCE Instruments PCE Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

PCE-TG 50 Ultrasonic Material Thickness Meter Portable handheld thickness gauge with a measuring range of 1.2 ... 200.0 mm / 0.05 ... 7.87 inches (steel) and adjustable ultrasound speed / velocity.
PCE-TG 50 is a compact ultrasonic material thickness meter or gauge used to measure the thickness of metal, glass, plastic and other homogeneous materials. This portable handheld material thickness gauge operates with an external ultrasonic contact transducer sensor probe and requires the use of coupling gel or paste. The probe directs ultrasonic waves through the coupling gel into the material to be tested. Since different materials conduct ultrasound at different speeds or velocities, the PCE-TG 50 material thickness gauge allows for ultrasound velocity adjustments to accommodate a wide variety of material testing applications.

With the PCE-TG 50 ultrasonic material thickness gauge, you can determine the thickness of metal, glass, plastic and other homogeneous materials in seconds. Operation of the ultrasonic material thickness gauge is easily carried out via the seven-button interface. Using the integrated calibration block, the measuring device can be calibrated onsite or in the field with minimal effort. Measured values ​​can be transferred to a PC using the optional software and connection cable (sold separately - see accessories for details). The software also offers the possibility to export the data into Microsoft Excel..
