Name: PCE Instruments PCECM40 [PCE-CM 40] Digital Multimeter w/ Flexible Current Clamp
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

PCE Instruments PCECM40 [PCE-CM 40] Digital Multimeter w/ Flexible Current Clamp

from

Rp.6,500,0000

Ex Tax: Rp.6,500,0000

Brand: PCE Instruments
Part Number: PCE-CM-40
Availability: 2 - 4 WEEKS
Last Updated: 03 Jul 2024

PCE Instruments

Qty

Add to Cart

Add to Wish List Compare this Product

This product has a minimum quantity of 3

Tags: Additel , Digital , Pressure , Calibrators

Description

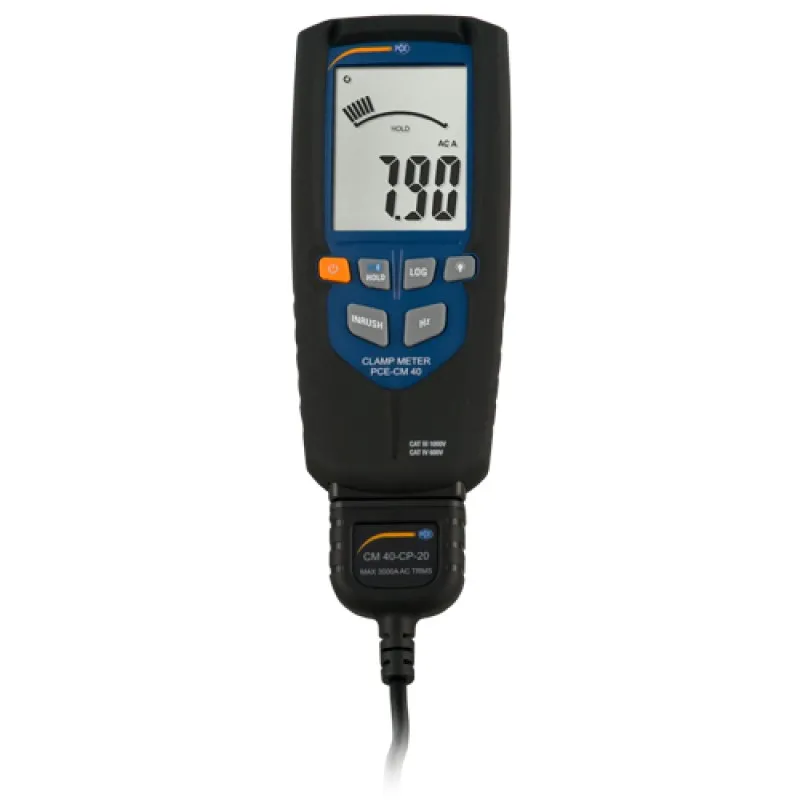

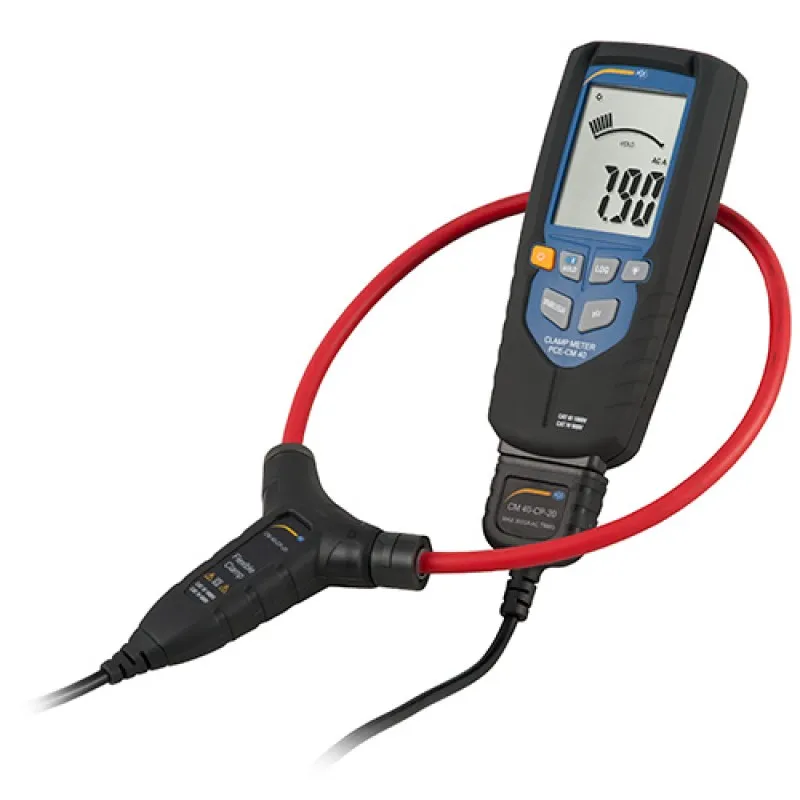

Digital multimeter PCE-CM 40 Flexible current clamp up to 3000 A / Rogowski coil with 170 mm (6.7 in) diameter / Inrush function / Frequency measurement / LC display.

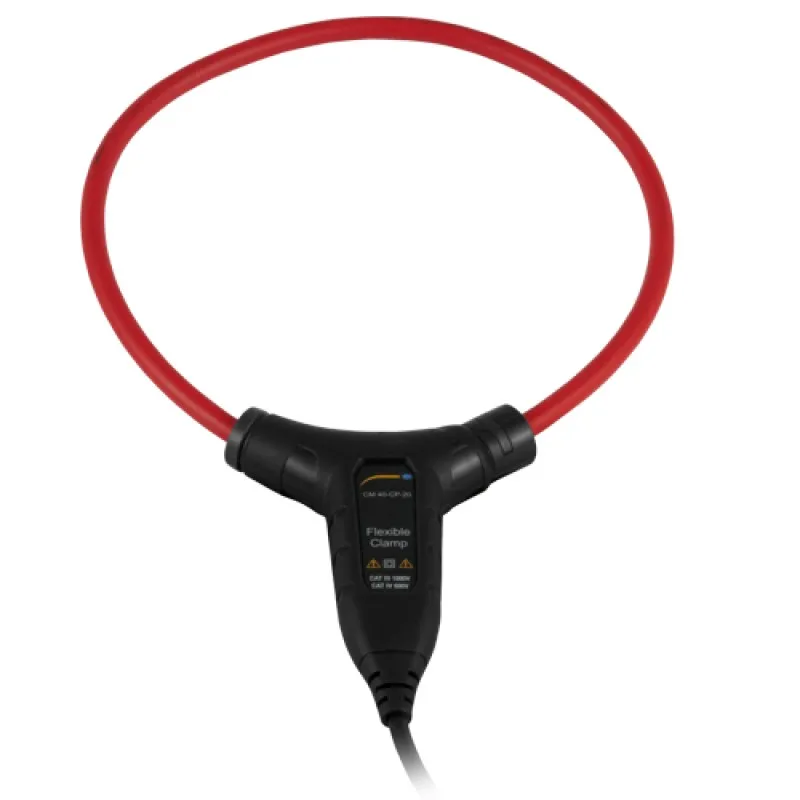

The flexible current clamp PCE-CM 40 is suitable for current measurements up to 3000 A AC. In addition to TRMS current measurement, the flexible current clamp can be used to measure inrush currents. The measurement of the current takes place via a flexible Rogowski coil. This means that the electrical conductor around which the flexible current clamp is placed induces a voltage in the ammeter. This voltage is proportional to the current flow through the electrical conductor. This makes it possible to measure very high currents with the flexible current clamp almost without risk. In addition to the current measurement, the flexible current clamp is able to measure frequencies in the range of 50 ... 400 Hz.

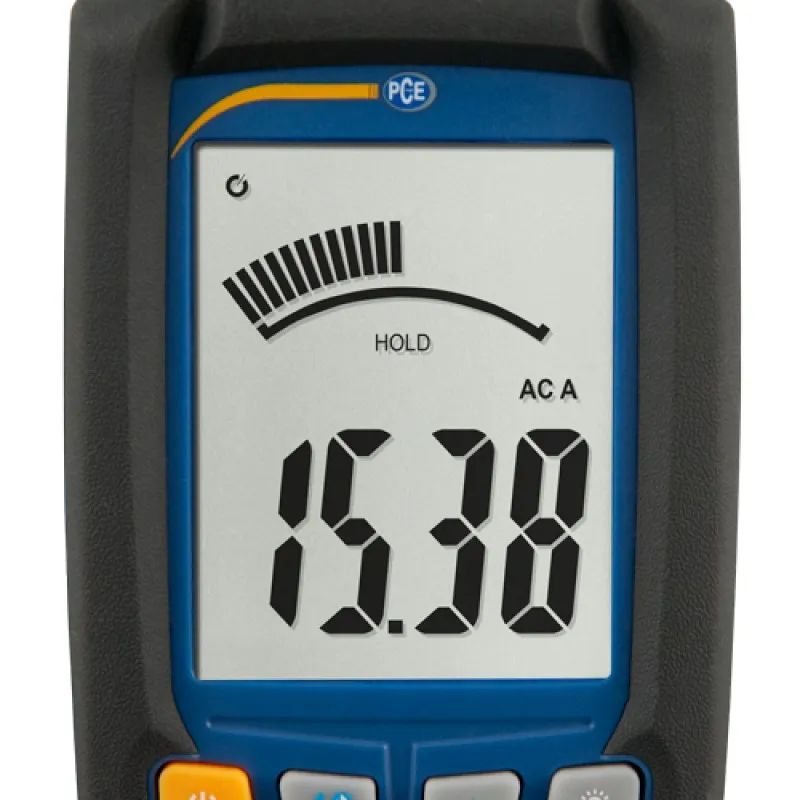

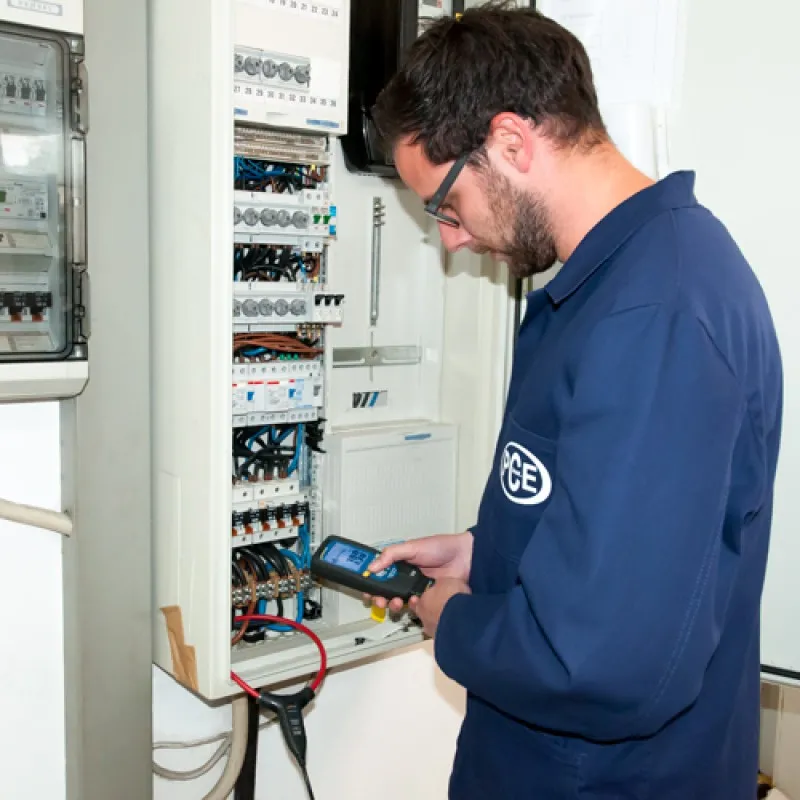

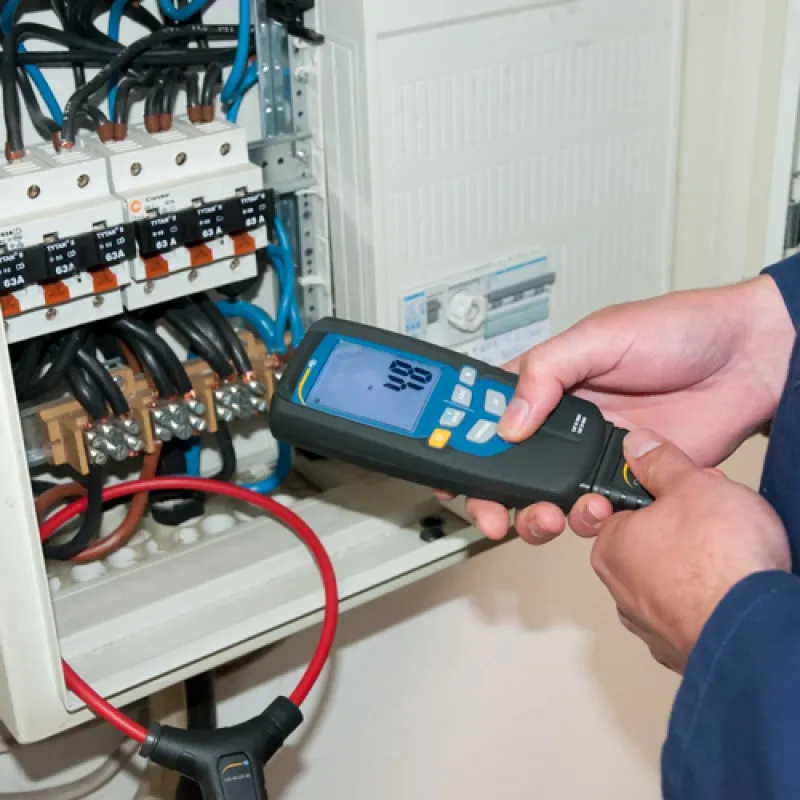

The PCE-CM 40 flexible current clamp is used to measure the AC current in machines, systems and electrical installations. Due to the flexible Rogowski coil, which has a diameter of 170 mm, the clamp can be used wherever conventional space clamps can not be used. The measured value of the alternating current is displayed on the illuminated LCD. Furthermore, the measured values can be stored in a memory that can be read out via the Bluetooth interface.
