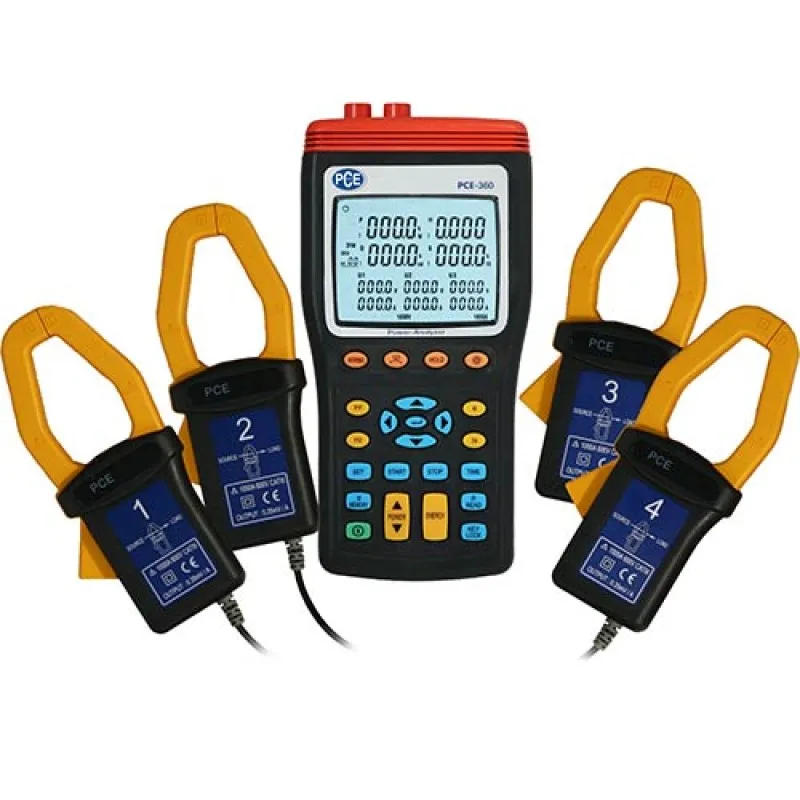

PCE Instruments PCE360 [PCE-360] Three Phase Power Meter with Data Logger

PCE Instruments PCE360 [PCE-360] Three Phase Power Meter with Data Logger
PCE Instruments PCE360 [PCE-360] Three Phase Power Meter with Data Logger
PCE Instruments PCE360 [PCE-360] Three Phase Power Meter with Data Logger
PCE Instruments PCE360 [PCE-360] Three Phase Power Meter with Data Logger
PCE Instruments PCE360 [PCE-360] Three Phase Power Meter with Data Logger
from
Rp.66,310,8060
Ex Tax: Rp.66,310,8060
  • Brand: PCE Instruments
  • Part Number: PCE-360_2
  • Availability: 4 - 6 WEEKS
  • Last Updated: 03 Jul 2024
PCE Instruments PCE Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

3-Phase Power Meter / 3-Phase Power Analyzer Power-analyzing clamp meter with data logger functionality / Includes clamps, clips, leads, PC software and data cable

The PCE-360 is a 3-Phase Power Meter / 3-Phase Power Analyzer or clamp meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period. The PCE-360 is used for the analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 ... 63 order, via software), and waveforms (via software).

The meter's large and easy-to-read screen displays up to 10 measurements simultaneously. In manual mode, the device stores up to 99 measurements directly. In data logger mode, the device stores up to 10,000,000 sets of measurements to the 4 GB internal memory. Measured values are transferred easily to a PC using the included Windows-compatible software and data cable. In addition, four current clamps, four alligator clips, and four measuring leads are included in the delivery contents.
