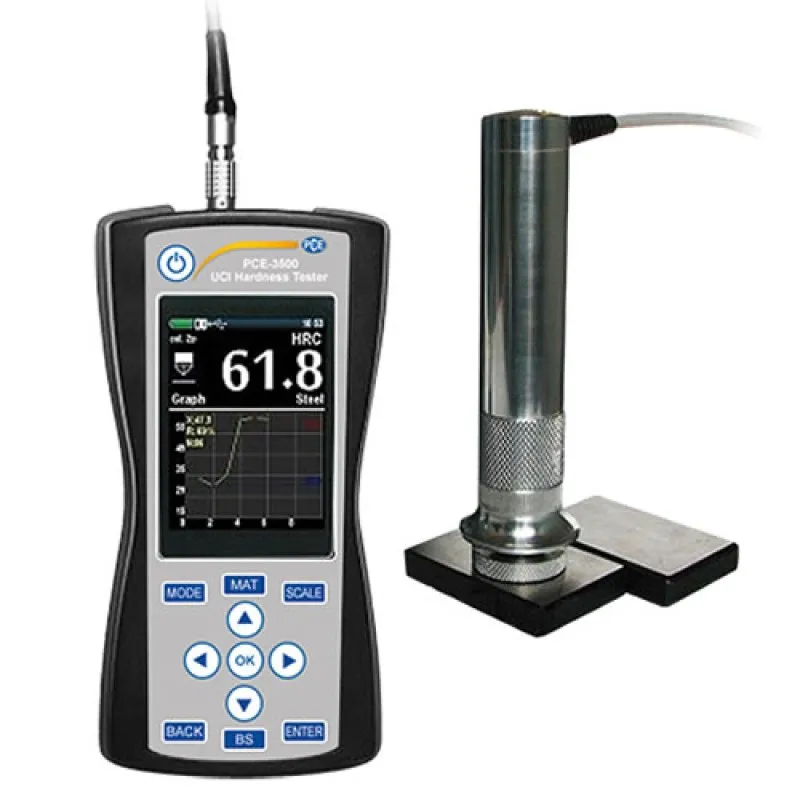

PCE Instruments PCE-3500-10 Hardness Tester

PCE Instruments PCE-3500-10 Hardness Tester
PCE Instruments PCE-3500-10 Hardness Tester
from
Rp.87,500,000
Ex Tax: Rp.87,500,000
  • Brand: PCE Instruments
  • Part Number: PCE-3500-10
  • Availability: 4 - 6 WEEKS
  • Last Updated: 02 Jul 2024
PCE Instruments PCE Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

UCI hardness tester PCE-3500 for non-destructive hardness measurement / large colour LC display / including software / HV, HRC, HRB, HB and MPa scale /with memory function / probes interchangeable / 136 ° Vickers diamond
The UCI hardness tester PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. The UCI hardness tester works on the basis of the Ultrasonic Contact Impedance test procedure. This UCI procedure works as follows: a Vickers diamond at the probe is stimulated with its self-resonance. By pushing the probe, the vibration frequency is reduced depending on the hardness of the surface and on the e module of the material and of the contact surface. The hardness of the surface can be determined on the basis of the frequency shift, taking the characteristic curve of the material into consideration.

The UCI hardness tester works non-destructively. There is a microscopically slight pressure against the surface, however, this is normally not visible. Due to the low penetration depth of the Vickers diamond, this UCI hardness tester is especially suitable for edge layer hardened components such as, for example, those that emerge when nitriding or induction hardening. It is typically used for punching tools, presses, thin-walled components, cog wheels, turbine blades, camshafts or weld seams. The UCI hardness tester is also suitable for many other hardness testing applications. It has exchangeable probes with different pressure forces and can therefore cover diverse applications.

After measuring the hardness of a component, the UCI hardness tester PCE-3500 shows different statistical values such as the MAX / MIN values and average values. Moreover, the standard deviation and further coefficients can be determined. A bar chart can be indicated. Since the UCI hardness tester is equipped with an internal memory, the measured data can be evaluated by means of a software.
