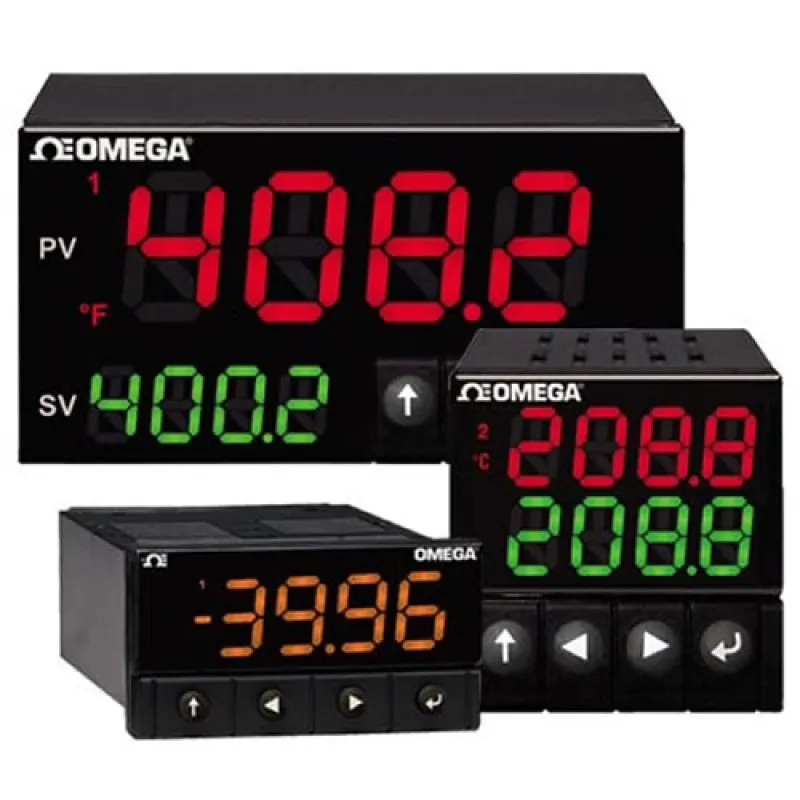

Name: Omega CNPT Series [CN32PT-220] 1/32 DIN 4 Digit Display Controller with Dual SSR Outputs
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Omega CNPT Series [CN32PT-220] 1/32 DIN 4 Digit Display Controller with Dual SSR Outputs

from

Rp.10,375,000

Ex Tax: Rp.10,375,000

Brand: OMEGA Engineering
Part Number: CN32PT-220
Availability: 3 - 4 WEEKS
Last Updated: 27 Jun 2024

OMEGA Engineering

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Aalborg , GFM , Mass Flow Meters

Description

The Industry Leading PLATINUM Series family of microprocessor-based PID controllers offer unparalleled flexibility in process measurement. While extremely powerful and versatile, great care has gone into designing a product that is very easy to set-up and use. The automatic hardware configuration recognition eliminates the need for jumpers and allows the firmware to automatically simplify itself, eliminating all menu options that do not apply to a specific configuration. Offered in 1⁄32, 1⁄16, and 1⁄8 DIN sizes, the 1⁄16 and 1⁄8 DIN models can be configured with dual displays, models are available with single and dual 4 digit displays or single 6 digit display.

Each unit allows the user to select the input type from 9 thermocouple type, Pt RTDs, thermistors, DC voltage, or DC current, and Strain & Bridge inputs. The full bidirectional voltage or current inputs are fully scalable to virtually all engineering units, with a selectable decimal point that is perfect for use with pressure, flow, or other process input.

Up to 6 programmable outputs and additional unique features make the PLATINUM Series "The Most Powerful" product in its class. Some of these additional standard features are: remote setpoint for cascaded control set-ups, high-high/low-low alarm functionality, external latch reset, external ramp and soak program initiation, combination heat/cool control mode, configuration save and transfer, and configuration password protection.
