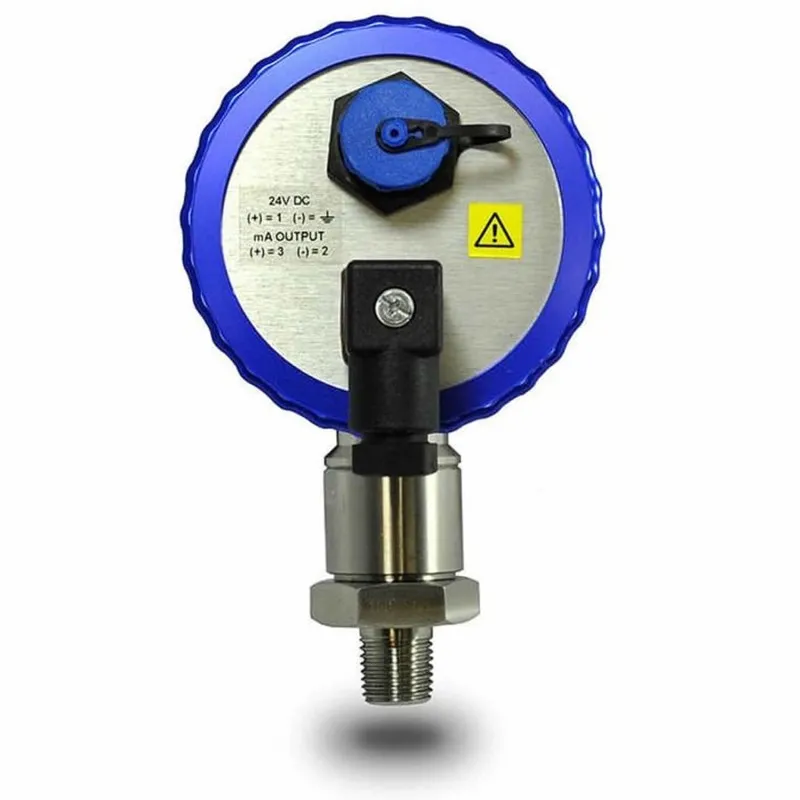

Monarch Track-It [5396-1335-CAL] 0-2000 PSIA Pressure Transmitter/Data Logger With Display 24 Vdc & NIST

Monarch Track-It [5396-1335-CAL] 0-2000 PSIA Pressure Transmitter/Data Logger With Display 24 Vdc & NIST
Monarch Track-It [5396-1335-CAL] 0-2000 PSIA Pressure Transmitter/Data Logger With Display 24 Vdc & NIST
Monarch Track-It [5396-1335-CAL] 0-2000 PSIA Pressure Transmitter/Data Logger With Display 24 Vdc & NIST
Monarch Track-It [5396-1335-CAL] 0-2000 PSIA Pressure Transmitter/Data Logger With Display 24 Vdc & NIST
Monarch Track-It [5396-1335-CAL] 0-2000 PSIA Pressure Transmitter/Data Logger With Display 24 Vdc & NIST
0 reviews • Write a review
from
Rp.23,500,0000
  • Brand: Monarch Instrument
  • Part Number: 5396-1335-CAL
  • Availability: 3 - 4 WEEKS
  • Last Updated: 24 Jun 2024
Monarch Instrument Monarch Instrument
Add to Cart
Add to Wish List Compare this Product
Tags: Fluke , Basic , Battery , Analyzer

The Track-It™ Pressure Transmitter/Data Loggers with Digital Display are 24Vdc powered 4 wire transmitters that can also record up to 130,000 samples for logging, redundant data backup or archive. These are different than the Pressure Display standalone Data Loggers which do not transmit but store data internally and download through a USB cable to a PC. They can be configured to record both pressure or vacuum and ambient temperature or just pressure or vacuum alone to maximize data storage space. Real time data, alarms and min/max information can be displayed on the mult-line LCD. The unit is easily configured using the free downloadable Track-It™ Software. Simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Default configuration of the unit is 4mA = 0 and 20mA = full scale. Custom scaling over a smaller range can be accommodated using Track-It™ Software. The data logging sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the even of a power loss. Track-It™ Pressure Transmitter/Data Loggers can be ordered in various ranges. The logger is packaged in a rugged anodized aluminum and stainless steel housing and has a standard 1/4" NPT fitting (1/2" NPT for 8700 and 14,500 ranges).

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data. Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.

View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.

Note: Compatible with Win XP/Vista/7/8/10, 32 and 64 Bit.
