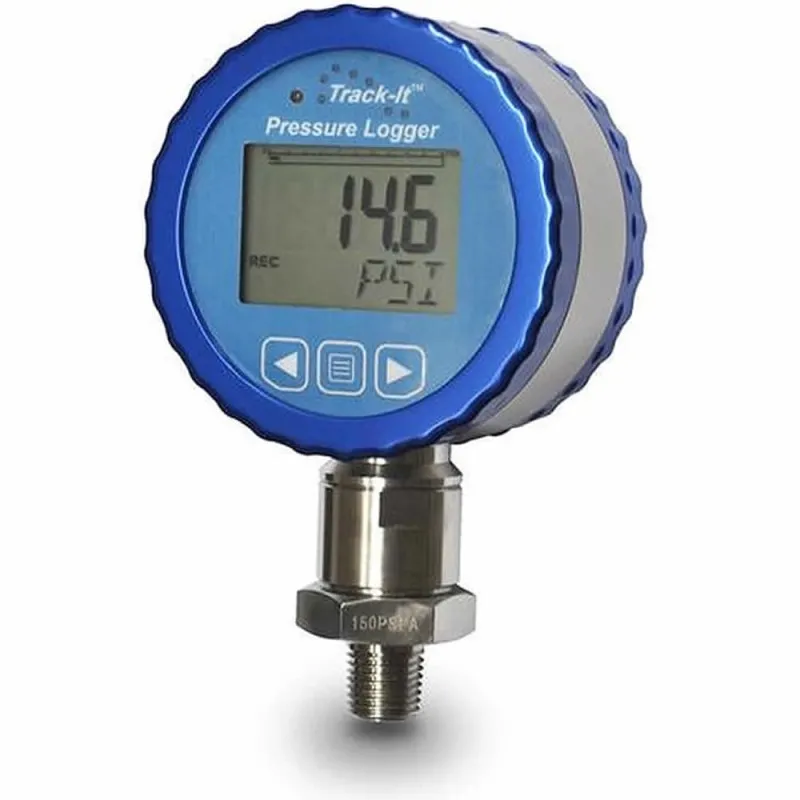

Name: Monarch Track-It [5396-0334] Pressure with Display, 0-35 PSIA Pressure/Temp Logger with USB Cable
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Monarch Track-It [5396-0334] Pressure with Display, 0-35 PSIA Pressure/Temp Logger with USB Cable

0 reviews • Write a review

from

Rp.16,500,000

Brand: Monarch Instrument
Part Number: 5396-0334
Availability: 3 - 4 WEEKS
Last Updated: 24 Jun 2024

Monarch Instrument

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Fluke , Basic , Battery , Analyzer

Description

The Track-It™ Pressure/Temperature and Vacuum/Temperature Data Loggers with Display are battery powered stand alone water tight compact data loggers that record up to 130,000 samples. They can be configured to record both Pressure or Vacuum and Temperature or either parameter alone to maximize data storage space. Real time data, alarms and min/max information can be displayed on the multi-line LCD. The unit is easily configured using the included Track-It™ Software. Simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Software automatically identifies the logger. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. Track-It™ Pressure/Temp and Vacuum/Temp Data Loggers can be ordered in various ranges (see below). The logger is packaged in a rugged submersible anodized aluminum and stainless steel housing and has a standard 1/4” NPT fitting (1/2" NPT for 8700 and 14,500 ranges). The replaceable internal lithium battery has up to a 3 year life.

Track-It™ Software is a powerful Windows based software package that is included with every Track-It™ Data Logger. It allows for easy setup, retrieval, interpretation and export of the recorded data. Simply connect your Track-It™ data logger to an open USB port and begin communicating immediately.

Point and click to select your sample interval, alarm set points, engineering units, start recording triggers and LCD Displays.

View a numerical data table or graphical representation of data readings relative to time. Use the graph tools such as zoom, cursor, min and max to examine and analyze the record. Track-It™ Software turns your PC into a real time data acquisition system by allowing you to stream graphical or tabular data directly to your PC (capability varies by model). Use the one click export function to automatically export stored data into an Excel spreadsheet.

Note: Compatible with Win XP/Vista/7/8/10, 32 and 64 Bit.
