Megger TDR500/3 [1002-227] Time Domain Reflectometer

Megger TDR500/3 [1002-227] Time Domain Reflectometer
Megger TDR500/3 [1002-227] Time Domain Reflectometer
from
Rp.26,750,0000
Ex Tax: Rp.26,750,0000
  • Brand: AEMC
  • Part Number: 1002-227
  • Availability: 10 - 14 DAYS WORK
  • Last Updated: 19 Jun 2024
AEMC AEMC
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

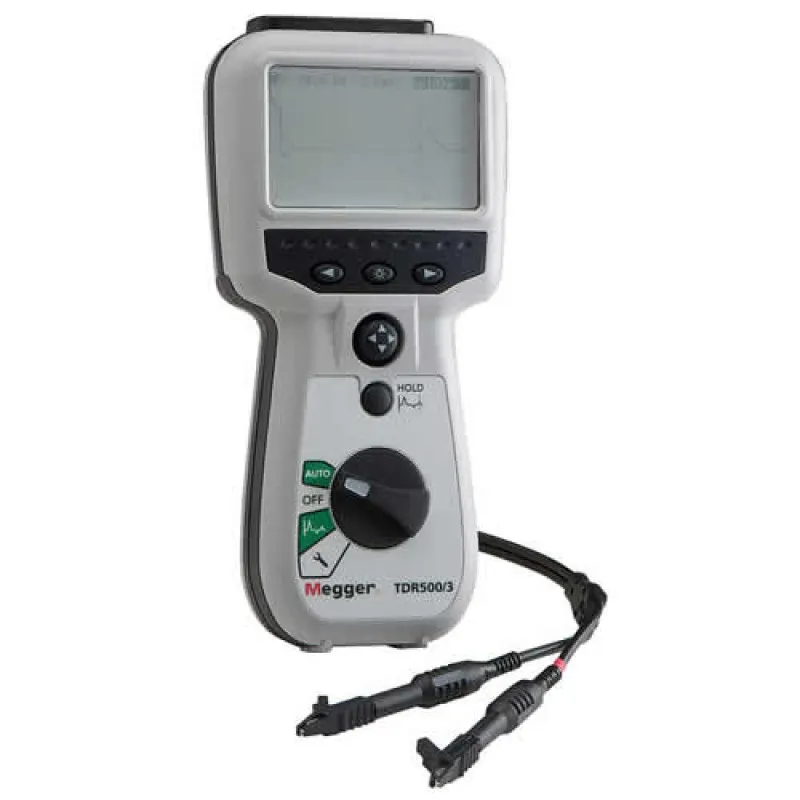

The Megger TDR500/3 Time Domain Reflectometer is for locating faults on metallic cables. It has a minimum resolution of 0.1m/0.3ft and a 5km/15kft maximum range depending on velocity factor selected and cable type. Four output impedances are available (25, 50, 75, and 100Ω) and a velocity factor between 0.2 and 0.99 will meet any cable test requirements. The TDR500/3 has a simple selection option which together with a 4 way control switch offers an intuitive operation for the user.

An AUTO selection option ensures that the most effective parameters are selected depending on the range required, aiding rapid diagnosis of the TDR trace. A clear operator controlled cursor allows instant measurement of the distance to the fault.

A trace HOLD feature also allows the operator to hold a trace on the screen, something not seen on most other handheld TDRs. Extra high resolution together with whitelight backlight and grey scale tones give the graphical display a vibrancy, aiding the user in identifying key events on the trace.
