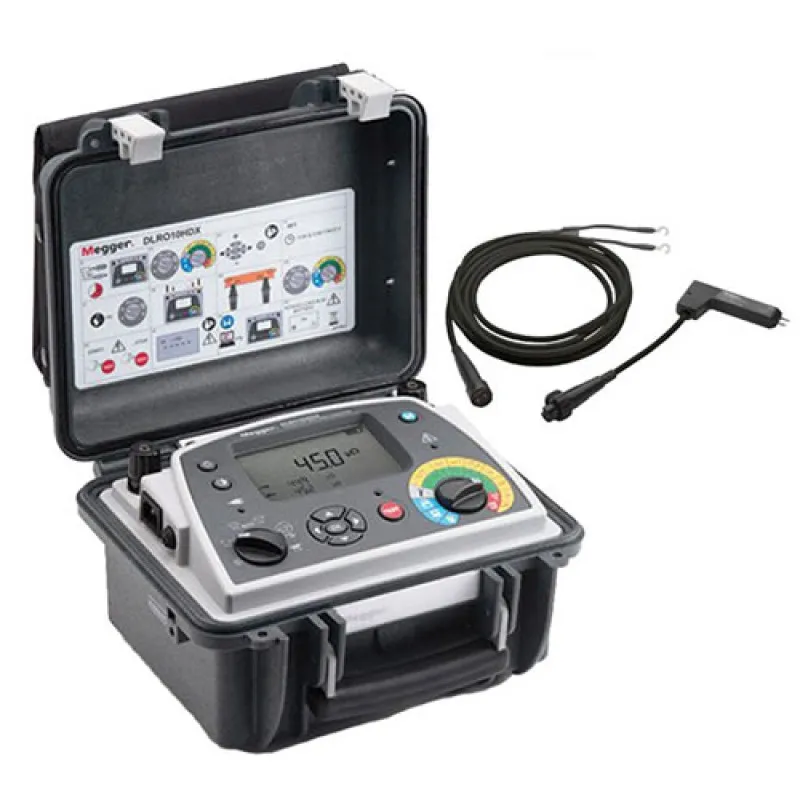

Megger DLRO-10HDX-DH4C [1008-075] Digital Low Resistance 10A w/ Hand Spikes

Megger DLRO-10HDX-DH4C [1008-075] Digital Low Resistance 10A w/ Hand Spikes
Megger DLRO-10HDX-DH4C [1008-075] Digital Low Resistance 10A w/ Hand Spikes
from
Rp.143,817,000
  • Brand: Megger
  • Part Number: 1008-075
  • Availability: 4 - 6 WEEKS
  • Last Updated: 19 Jun 2024

Megger DLRO-10HDX-DH4C  (1008-075) Digital Low Resistance Ohmmeter provides memory storage as well as the ultimate simplicity of operation with a rugged IP65 case designed for stable ground and bench operation.

The DLRO-10HDX-DH4C is powered from either a rechargeable battery or AC power, making it suitable for continuous testing in production line/repetitive use environments.

Rotary switch controls are simple and easy to operate in all weather conditions and with gloved hands. A large, clear, backlit LCD display is easy to read from a distance. The DLRO-10HDX-DH4C provides significantly enhanced compliance and is capable of delivering 10 A into measurements up to 250 milliohms and 1 A into measurements up to 2.5 ohms. The duration of each test may be up to 60 seconds. The DLRO-10HDX-DH4C is rated CAT III 300 V when the optional terminal cover (sold separately) is fitted to the instrument.

The DLRO-10HDX-DH4C provides five test modes each of which is selected through a simple rotary control on the Mode selection rotary switch. All memory functions, delete, download to PowerDB and recalling test results are also accessible via the Range Selection rotary switch.

A simple control panel enables easy navigation for configuration settings.

The DLRO-10HDX-DH4C is supplied with the DH4-C 1.5m Duplex Connect Handspike Lead Set, which features terminations that may easily be changed as required.
