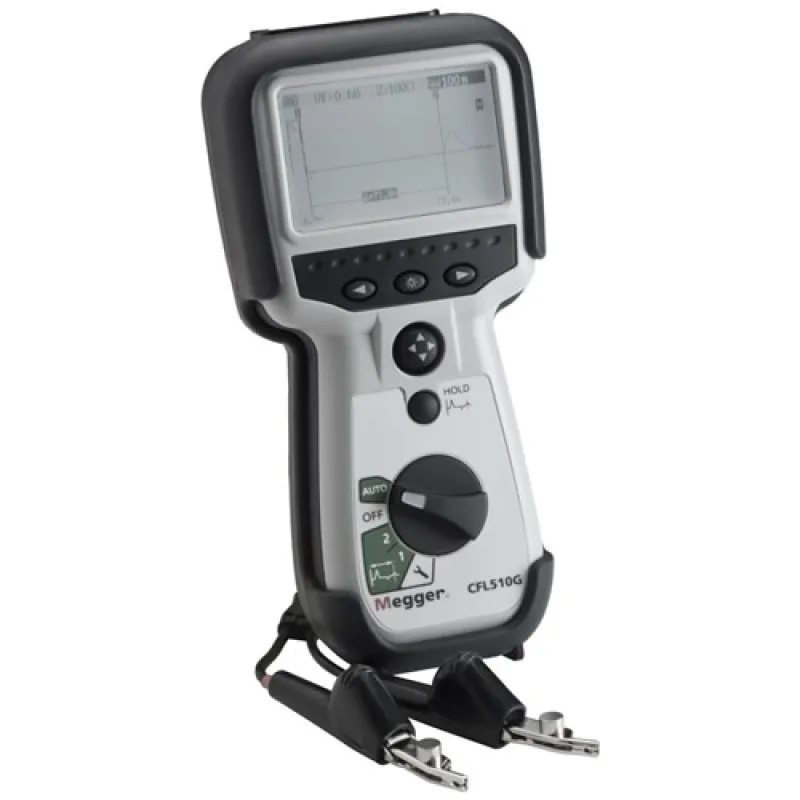

Megger CFL510G [1001-790] Time Domain Reflectometer

Megger CFL510G [1001-790] Time Domain Reflectometer
Megger CFL510G [1001-790] Time Domain Reflectometer
from
Rp.50,800,0000
Ex Tax: Rp.50,800,0000
  • Brand: AEMC
  • Part Number: 1001-790
  • Availability: 4 - 6 WEEKS
  • Last Updated: 19 Jun 2024

The Megger CFL 510G Time Domain Reflectometer is a hand held, compact Time Domain Reflectometer for locating faults on metallic cables. It has a minimum resolution of 0.1m/0.3ft and a 5km/15,000ft maximum range depending on velocity factor selected and cable type.
Four output impedances (25, 50, 75, and 100Ω) are available and a velocity factor between 0.2 and 0.99 will meet any cable test requirements.

The CFL510G has a simple selection option which, together with a four-way control switch, offers an intuitive operation for the user.
This CFL510G is primarily designed for linemen in both the communication and power industries. Specific capabilities include:

Telephony: Provides fast and accurate results when uncovering transmission related problems. Designed to be carried on a linesman's belt and used in the first line of defense when diagnosing and locating cable faults. Specific line activities by this unit are:

  • Bridge taps and splices
  • Presence of water in the cable
  • Opens in tip/ring or sheath
  • Shorts between tip, ring, and/or sheath
  • Capacitive networks
  • Load coils
  • Wet splices and high-resistance splices
CATV/Cellular: Ideal for testing the physical integrity of cables within a network. The unit is also capable of locating illegal cable taps. Specific cable conditions identified include:

  • Bends or crimps in the cable
  • Cuts or shorts in the cable
  • Taps and splits
  • Water saturation
Power: An ideal tool for identifying faults on secondary power cables. This unit identifies:
  • Burnouts in aluminum conductors
  • Good splices, wet splices, and high-resistance splices
  • Shorts between phases
