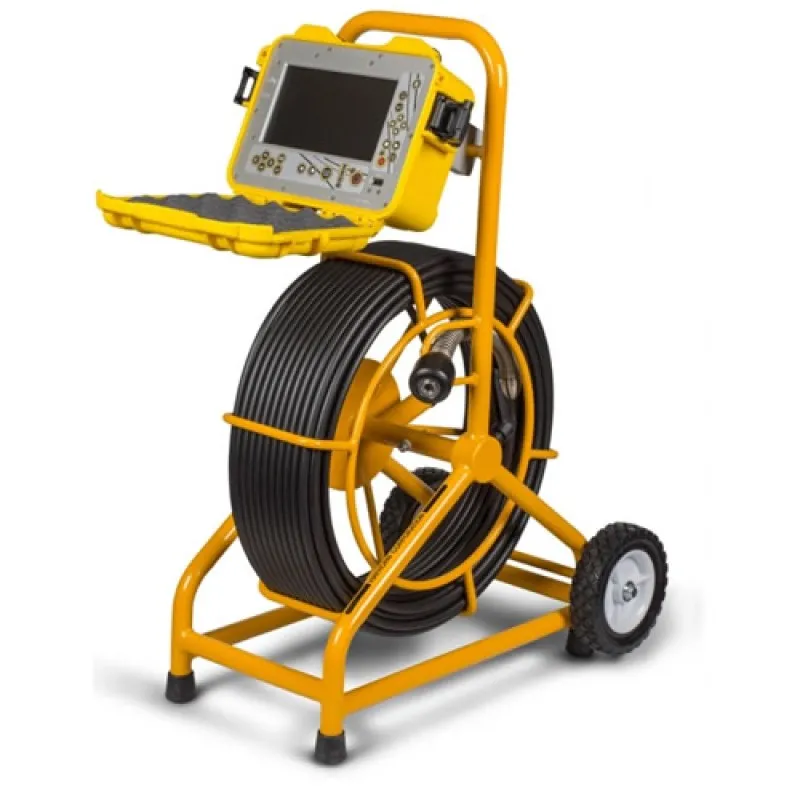

The TRITON M7 pipe inspection camera is an industrial grade tool.
The M7 system is the perfect blend of compact and light weight, yet extremely rugged and durable for heavy daily use. These Canadian manufactured units are packed with features to inspect pipes from 1.5” up to 8”, and are great for a variety of applications including; sewers, drains, laterals, oil pipelines, pools, hot tubs, ducts, pipe fitting or sprinkler lines. The M7 pipe inspection camera includes 3 components; the portable DVR box in a hard plastic carrying case, the strong, durable, push cable installed on a stand up reel, and the tough stainless steel camera head, with LED lights and a great flexible spring section.
The DVR features a built in color 7.4” monitor with an acrylic shield, USB recording to save images, video, text, and on-screen footage readings direct to a USB thumb stick or hard drive. It also features adjustable lighting controls, click touch controls, and a 2 hour rechargeable Li battery for portable inspections.
The push cable comes in a spiral wound premium poly blend design, which is very strong and durable, and resistant to abrasion and rough surfaces. These units available in a length of either 100 feet (30.5 meters) or 200 feet (61 meters), with the push cable installed on a powder coated steel frame. The reel features a built in onscreen foot counter, and a connection point to secure the M7 DVR box.
The camera heads are available in 4 different diameters; 1.23” (31mm), 1.36” (34.5mm), 1.4” (35.6mm) and 1.68” (43mm), all of which have solid stainless steel construction with a scratch resistant sapphire lens, IP68 waterproof rating, an integrated 512 Hz Sonde to locate the camera head underground and behind walls, a sleek rounded designs with no sharp edges making them highly maneuverable. There are also bright white LED lights built into each camera head to properly illuminate inspection areas. Some of these camera heads are also available in a self-leveling option, which refers to the fact that the live image on the monitor, or in captured files, is always right side up no matter how the camera bends or twists around in the pipe.
The 1.23” Mini camera head is extremely flexible, and specially designed to navigate tight bends in a wide range of areas. This will make 90 degree bends in 2” pipes, and thanks to the very light sensitive camera chip, will provide a crisp, high-quality image in pipes up to 6” in diameter. Integrated into this camera head are 12 HI-LEDs. The 1.23” camera heads are available in straight view, or self-leveling options.
The 1.36” Drain scope camera head is specially designed to be more flexible to access tight inspection areas. It features a specially designed spring section and a rounded plastic skid that makes it capable of navigating 90 degree bends in 1.5” diameter pipes, and can be used to inspect pipes up to 6” in diameter. This camera head is only available in a straight view option though. This option would be great for pools, hot tubs, and sprinkler line inspections.
The 1.4” and 1.68” color camera heads also feature a light sensitive camera chip, but these units have more HI-LEDs to offer more illumination to inspect bigger inspection areas, typically from 3” to 8”, or a bit larger with the use of a camera head skid. Both of these camera heads are only available in the self-leveling configuration, so the image on the M7 monitor and captured files will always be right side up.
There are two options available for the TRITON M7 pipe inspection camera sets:
A WIFI module to record images and video onto a smartphone or tablet. The WIFI module generates a WIFI signal that you connect your smartphone or tablet to. Once connected, a custom App is used to view the live image from the Triton M7 on your device, and to capture files directly to your device memory. You can then store, text, email, or post to social media.
An XT512 detection wand or locator. This is used to detect the 512 Hz signal given off by the camera heads, to determine the location and depth of the camera head underground or behind walls. All of the Triton camera heads feature an integrated 512Hz Sonde transmitter built into them
