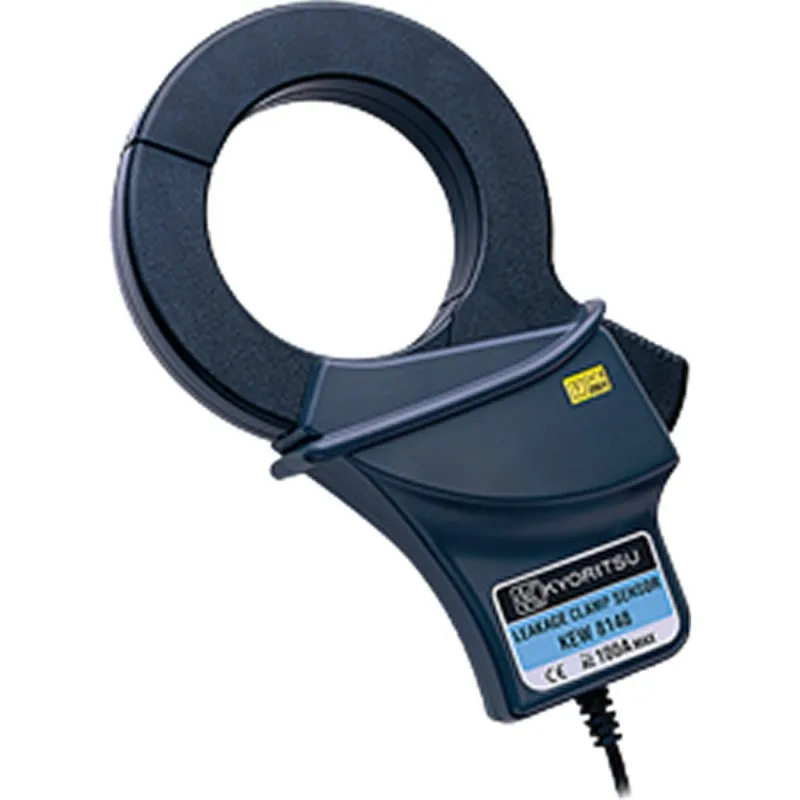

Kyoritsu 8148 [KEW8148] 100A AC Leakage & Load Current Clamp Sensor

Kyoritsu 8148 [KEW8148] 100A AC Leakage & Load Current Clamp Sensor
Kyoritsu 8148 [KEW8148] 100A AC Leakage & Load Current Clamp Sensor
from
Rp.7,800,0000
Ex Tax: Rp.7,800,0000
  • Brand: Kyoritsu (KEW)
  • Part Number: KEW8148
  • Availability: 2 - 4 WEEKS
  • Last Updated: 11 Jun 2024
Kyoritsu (KEW) Kyoritsu (KEW)
Add to Cart
Add to Wish List Compare this Product
This product has a minimum quantity of 2
Tags: Additel , Digital , Pressure , Calibrators

Kyoritsu 8148 leakage and load current clamp sensor. In order to monitor energy saving and to control the electric facilities, it is essential and imperative to control the leak and load currents from mains and branch power lines up to the equipment. Clamp sensor is easy to carry and simple to install. Rated current 100A AC. 68mm conductor size. Output voltage: AC 5000mV/100A (AC 50mV/A). Output connector: Mini-DIN 6-pin. 0 to 50 degree c temperature range. Withstand voltage: 3540V AC for 5 seconds. Approximate 2m cable length. Approximate 60 ohm output impedance. Accessories includes: portable case, instruction manual, cable marker. Measures 186 mm length by 129 mm width by 53mm depth.

Features:

  • Conductor size: Ø68mm
  • Rated current AC 100A
  • Output voltage: AC 5000mV/100A (AC 50mV/A)
  • Accuracy:
  • 0 - 80A
    • ±1.0%rdg±0.1mV (50/60Hz)
    • ±2.0%rdg±0.2mV (40Hz - 1kHz)
  • 80 - 100A
    • ±5.0%rdg (50/60Hz)
    • ±10.0%rdg (45Hz - 1kHz)
  • Cable length:  Approx. 2m
  • Output connector: MINI DIN 6pin
  • Output impedance: Approx. 60Ω
  • Applicable standards:
    • IEC 61010-1:2001,
    • IEC 61010-2-032:2002,
    • CAT III 300V pollution degree 2
  • Operating temperature & humidity range: 0 - 50ºC, less than 85% RH (without condensation)
  • Dimensions: 186(L) x 129(W) x 53(D) mm
  • Weight: Approx.510g
  • Included Accessories: 9094 (Portable case), Instruction manual, Cable marker
  • Optional Accessories:
    • 7146 (Banana Ø4 adjuster plug)
    • 7185 (Extension Cable)

    What's In The Box:

    • (1) 9094 (Portable case)
    • (1) Instruction manual
    • (1) Cable marker

    Brochure/Datasheet

    Instruction manual

    Note: Prices are not binding , subject to change without prior notice
