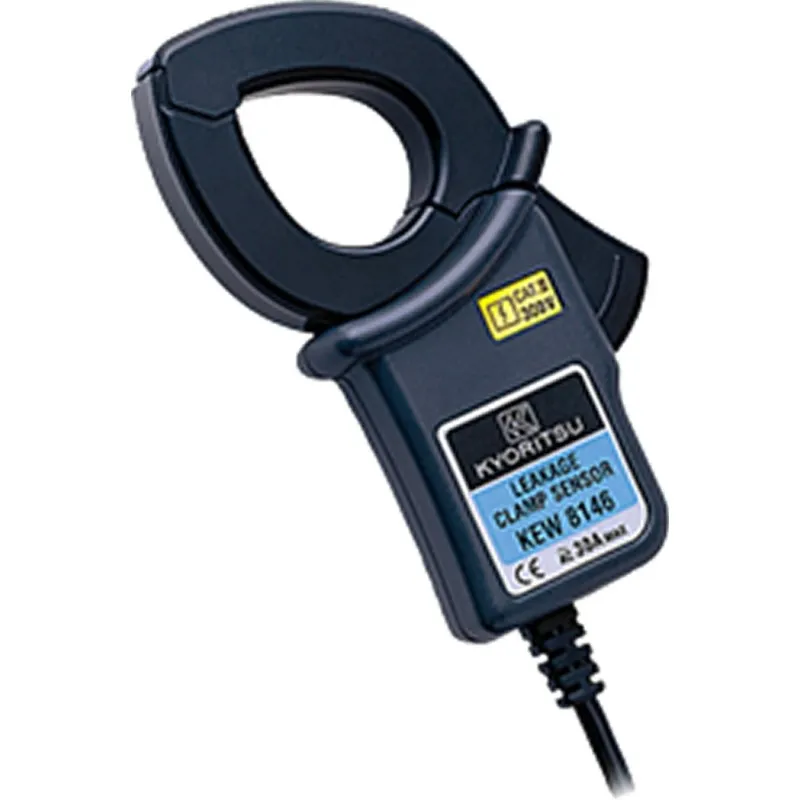

Kyoritsu 8146 [KEW8146] 30A AC Leakage & Load Current Clamp Sensor

Kyoritsu 8146 [KEW8146] 30A AC Leakage & Load Current Clamp Sensor
Kyoritsu 8146 [KEW8146] 30A AC Leakage & Load Current Clamp Sensor
0 reviews • Write a review
from
Rp.4,900,0000
  • Brand: Kyoritsu (KEW)
  • Part Number: KEW8146
  • Availability: 2 - 4 WEEKS
  • Last Updated: 11 Jun 2024
Kyoritsu (KEW) Kyoritsu (KEW)
Add to Cart
Add to Wish List Compare this Product
This product has a minimum quantity of 3
Tags: Additel , Digital , Pressure , Calibrators

Non-contact Clamp-on system provides you easy and safe installations of the clamp sensor in the existing facilities without any errors.

Features:

  • Conductor size: Ø24mm
  • Rated current: AC 30A
  • Output voltage: AC 1500mV/30A (AC 50mV/A)
  • Accuracy:
  • 0 - 15A
    • ±1.0%rdg±0.1mV (50/60Hz)
    • ±2.0%rdg±0.2mV (40Hz - 1kHz)
  • 15 - 30A
    • ±5.0%rdg (50/60Hz)
    • ±10.0%rdg (45Hz - 1kHz)
  • Cable length Approx. 2m
  • Output connector: MINI DIN 6pin
  • Output impedance: Approx. 90Ω
  • Applicable standards
    • IEC 61010-1:2001,
    • IEC 61010-2-032:2002,
    • CAT III 300V pollution degree 2
  • Operating temperature & humidity range: 0 - 50ºC, less than 85% RH (without condensation)
  • Dimensions: 100(L) x 60(W) x 26(D) mm
  • Weight: Approx.150g
  • Included Accessories: 9095 (Portable case), Instruction manual, Cable marker
  • Optional Accessories:
    • 7146 (Banana Ø4 adjuster plug)
    • 7185 (Extension Cable)

What's In The Box:

  • (1) 9095 (Portable case)
  • (1) Instruction manual
  • (1) Cable marker

    Brochure/Datasheet

    Instruction manual

    Note: Prices are not binding , subject to change without prior notice
