KEP KEPtrol R/T Ratemeter / Totalizer

KEP KEPtrol R/T Ratemeter / Totalizer
KEP KEPtrol R/T Ratemeter / Totalizer
from
Rp.20,950,0000
Ex Tax: Rp.20,950,0000
KEP (Kessler-Ellis Products) KEP (Kessler-Ellis Products)
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

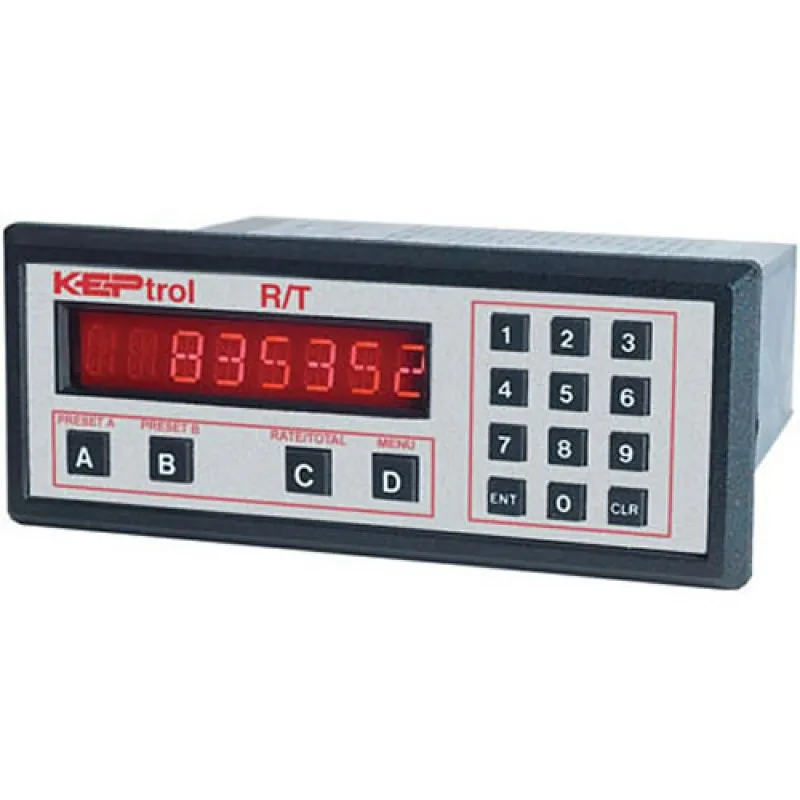

The KEP KEPtrol R/T ratemeter and totalizer features 8 digits of bright, 0.55", alphanumeric display. The pulse input version can accept up to 20,000 pulses per second and the analog input version accepts inputs, such as 4 to 20mA or 1 to 5V. The standard KEPtrol R/T has two separate, 8 digit, floating decimal, "K" factors to convert the inputs to meaningful total and rate data. An optional 16 point Kfactor can linearize flow from meter outputs. The user, with the push of a button, can toggle back and forth to view the total, the rate of flow and the grand total count. Two control outputs can be assigned independently by the user to activate at preset limit of total, rate or grand total for 0.1 to 9.9 seconds or until reset.

A scaled pulse output is also provided by an open collector driver. Since the output frequency is user selectable at 10, 200, 2K or 20K Hz, the unit can transmit the total data to remote electromechanical or electronic totalizers as well as computers, programmable controllers or other monitor equipment.

An optional analog output allows the user to select low and high settings to control strip chart recorders or other peripherals. Up to 15 units can be connected to optional RS232 or RS422 communications port to set control points or access data.

Features:

  • Two Alarm Outputs
  • User Selectable Total, Rate or Grand Total
  • Pulse Input to 20 kHz Count Frequency
  • K-Factor Programmable to 8 Places
  • Password Protection
  • NEMA 4X/IP 65 Front Panel

What's In The Box:

  • (1) Instruction manual

Brochure/Datasheet

Instruction manual

    Note: Prices are not binding , subject to change without prior notice
