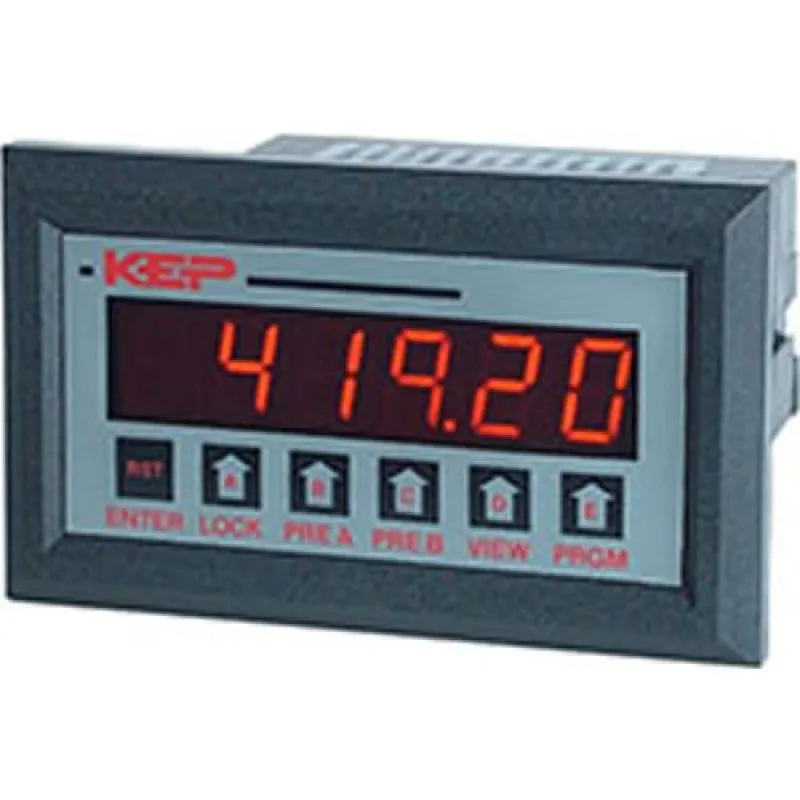

KEP INTELLECT-69 Ratemeter / Totalizer

KEP INTELLECT-69 Ratemeter / Totalizer
KEP INTELLECT-69 Ratemeter / Totalizer
0 reviews • Write a review
from
Rp.8,900,0000
KEP (Kessler-Ellis Products) KEP (Kessler-Ellis Products)
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

The KEP INTELLECT-69 Ratemeter / Totalizer features 6 digits of bright, 7-segment LED displays, the Intellect-69 is an integrating totalizer/ratemeter which accepts analog signal inputs. The unit can be field programmed to accept 4-20mA, 0-20mA, 0-5V, 0-10V or 1-5V signals. An optional Square Law input is available for inputs that require square root extraction. A 4-20mA output option is available to control strip recorders or to transmit linear signal other peripherals. Two assignable set points are standard. The high and low scaling settings are programmable from the front panel. By pressing the "view" button, the unit will display: integrated total, rate, peak or valley. Press the "lock" key once to freeze the display. RS422 or RS232 serial communications are available options for data communication with a host computer.

Features:
  • High / low scaling from front panel
  • 2 set points assignable to rate or total
  • Display rate, integrated total and peak & valley
  • 0-5V, 0-10V, 1-5V, 4-20mA or 0-20mA analog Input
  • NEMA 4X/IP 65 front panel
  • 24V output power for peripherals
  • RS422/232 Serial Communications option
  • 4-20mA output option

What's In The Box:

  • (1) Power cord
  • (1) Instruction manual

Brochure/Datasheet

Instruction manual

    Note: Prices are not binding , subject to change without prior notice
