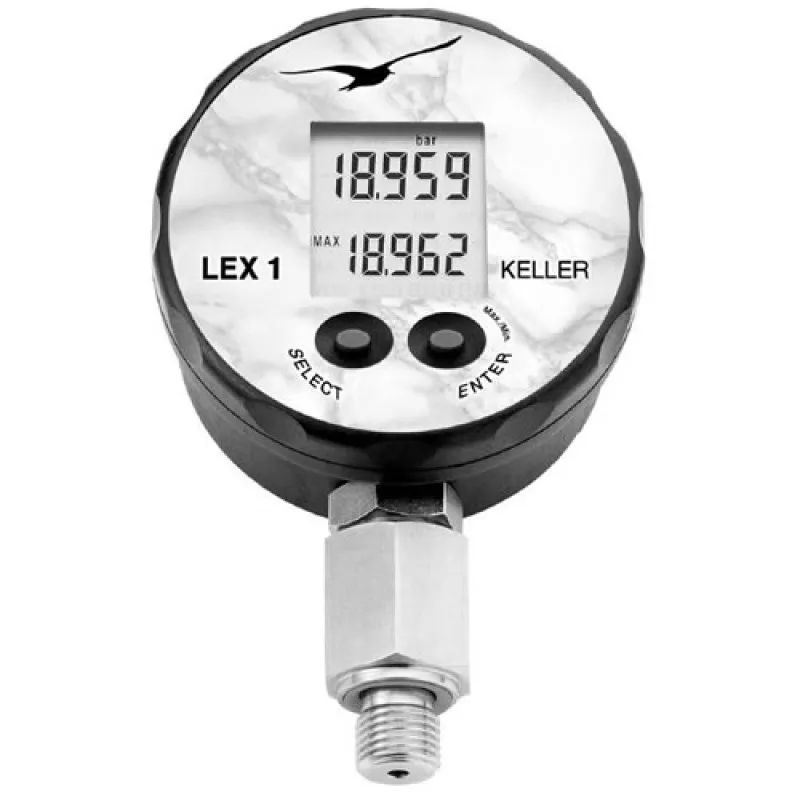

Keller LEX1 [LEX1] Digital Pressure Gauge

Keller LEX1 [LEX1] Digital Pressure Gauge
Keller LEX1 [LEX1] Digital Pressure Gauge
from
Rp.26,500,0000
Ex Tax: Rp.26,500,0000
  • Brand: Keller
  • Part Number: LEX1
  • Availability: 4 - 6 WEEKS
  • Last Updated: 10 Jun 2024
 Configure Options

The Keller LEX1 Digital Pressure Gauge is a highly accurate, microprocessor controlled digital pressure gauge. With an optional accuracy of up to ±0.01% over ranges from -1 to 1000 bar, the LEX1 is suitable for nearly any application. Temperature compensation ensures accuracy in all conditions.

The LEX1 Gauge is easy to set up. Two buttons perform set-up and all functions. A dual LCD display indicates current pressure as well as MIN/MAX value. RS485 communications allow the LEX1 to interface with a computer.

The battery-powered LEX1 is a robust instrument with an IP65 rating and optional Ex II 2 G EEx ia IIC T4 classification making it suitable for a wide range of locations and environments. An intrinsically safe version of the LEX1 incorporates an additional protection switch is available for hazardous locations.


Features:


  • Ranges from -1 to 1000 bar
  • Dual LCD display
  • ±0.05% FS standard accuracy (Optional .025% and .01%, for ranges ≥20 Bar)
  • 0 to 50°C compensated temperature range
  • RS485 communications
  • G 1/4" pressure connection
  • IP65 protection
  • Intrinsically Safe version available

What's In The Box:
  • (1) Carrying case
  • (1) 5-point calibration certificate.
  • (1) Manual

Brochure/Datasheet


Instruction manual


Note: Prices are not binding , subject to change without prior notice
