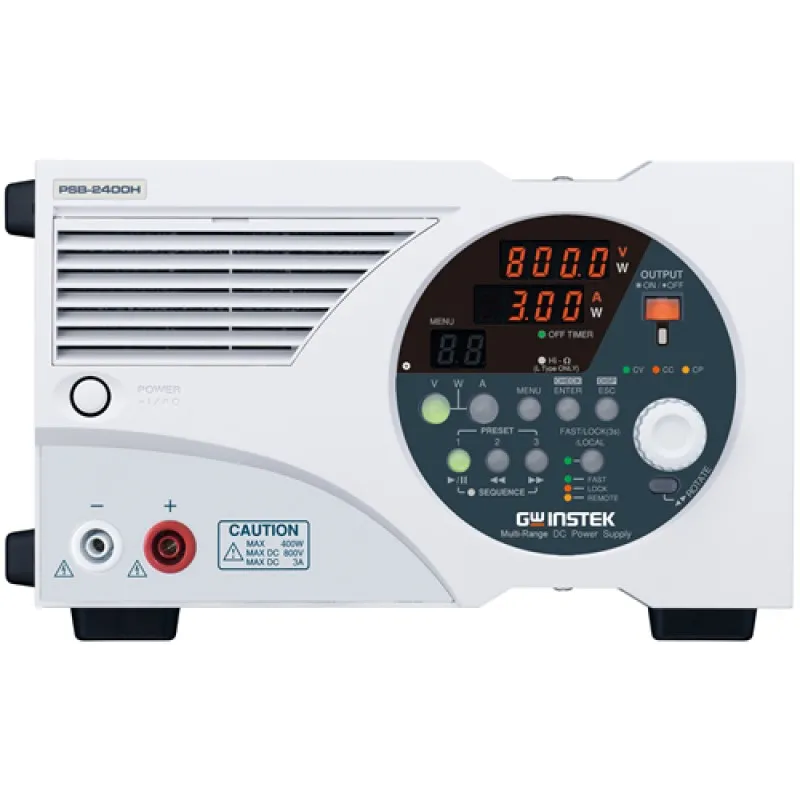

Instek PSB-2400H [PSB-2400H] 400W Multi-Range Programmable Switching D.C. Power Supply

Instek PSB-2400H [PSB-2400H] 400W Multi-Range Programmable Switching D.C. Power Supply
Instek PSB-2400H [PSB-2400H] 400W Multi-Range Programmable Switching D.C. Power Supply
Instek PSB-2400H [PSB-2400H] 400W Multi-Range Programmable Switching D.C. Power Supply
Instek PSB-2400H [PSB-2400H] 400W Multi-Range Programmable Switching D.C. Power Supply
Instek PSB-2400H [PSB-2400H] 400W Multi-Range Programmable Switching D.C. Power Supply
from
Rp.57,500,0000
  • Brand: GW Instek
  • Part Number: PSB-2400H
  • Availability: 4 - 6 WEEKS
  • Last Updated: 07 Aug 2023

The GW Instek PSB-2400H is a high power density, programmable and multi-range output DC power supply. The PSB-2400H has the output voltage of 800V, and the output power range of 400W. The multi-range output functionality facilitates flexible collocations of higher voltage and larger current under the rated power range. Both series and parallel connections can be applied to the PSB2400H to fulfill the requirements of higher power output range.

The PSB-2400H provides three sets of preset function keys to memorize regularly used settings of voltage, current and power that users can recall rapidly. The sequence function, via RS232C, USB interface or optional GPIB interface, can connect with the computer to produce output power defined by sequence of a series of set voltage and current steps that are defined by the computer. This function is often used to establish a standard test procedure for the verification of the influence on DUTs done by the swiftly changing operating conditions.

The PSB-2400H protects over voltage and over current. The power supply output function will be shut down to protect DUTs while the protection mechanism is triggered to function. When conducting battery charging operation, the Hi-W mode of the PSB2400H will prevent reverse current from damaging power supply. The PSB-2400H provides analog control and analog monitor interfaces on the rear panel to control the output via the external voltage or to externally monitor voltage and current output status of power supply. The panel can be rotated 90 degree angle suitable for vertical or horizontal position to accommodate the ideal space utilization.
