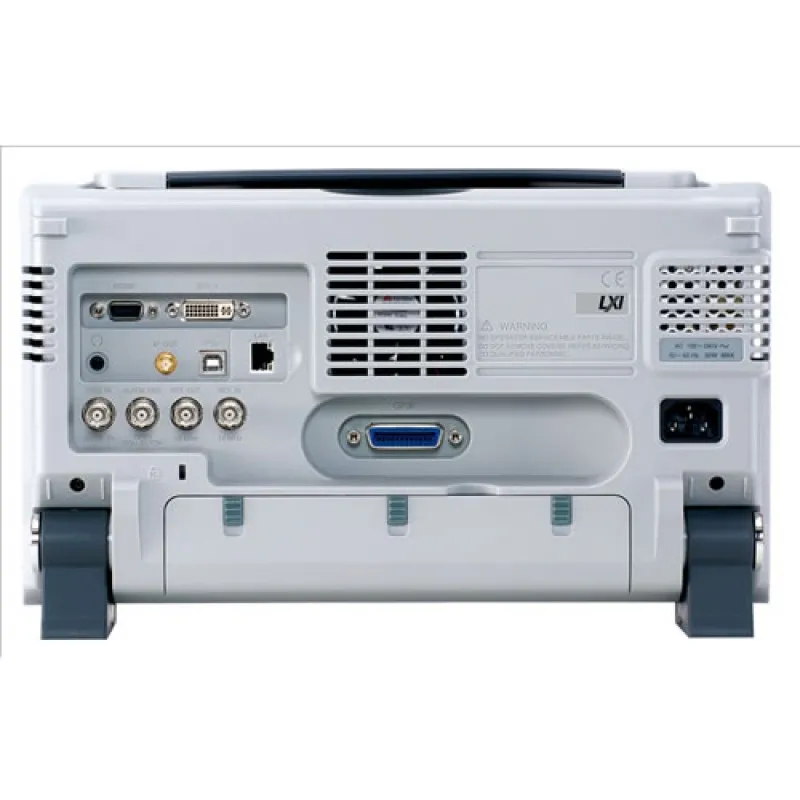

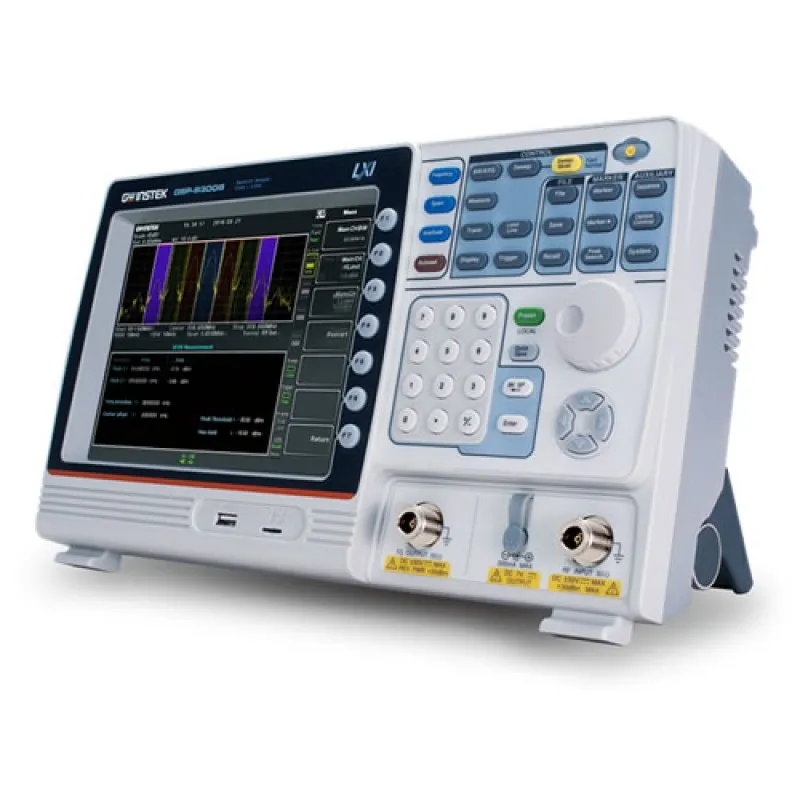

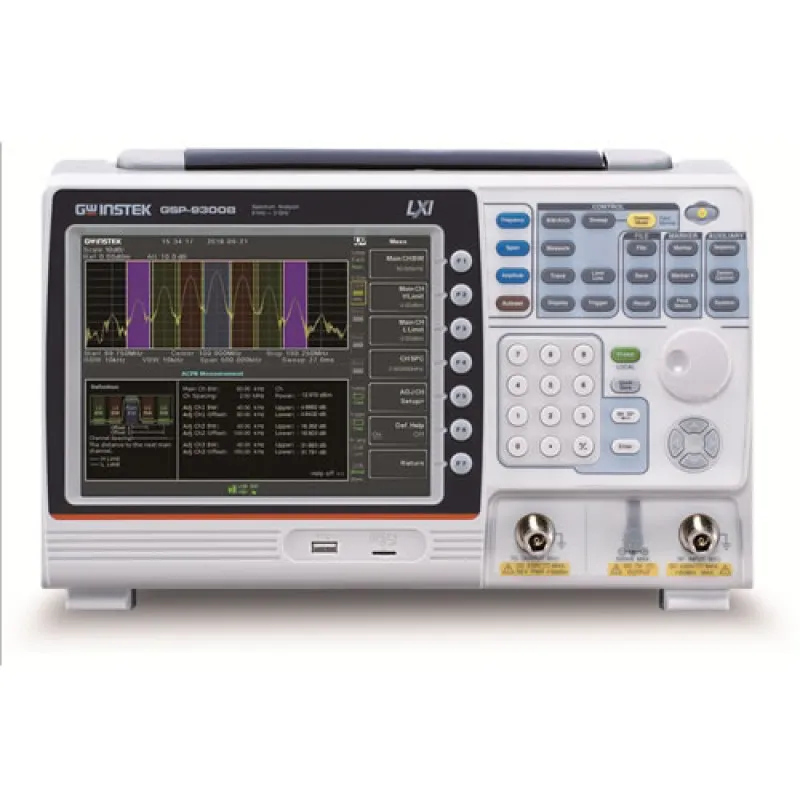

Instek GSP-9300BTG 9 kHz - 3 GHz Spectrum Analyzer with Built-in Preamp and Tracking Generator

Instek GSP-9300BTG 9 kHz - 3 GHz Spectrum Analyzer with Built-in Preamp and Tracking Generator
Instek GSP-9300BTG 9 kHz - 3 GHz Spectrum Analyzer with Built-in Preamp and Tracking Generator
Instek GSP-9300BTG 9 kHz - 3 GHz Spectrum Analyzer with Built-in Preamp and Tracking Generator
Instek GSP-9300BTG 9 kHz - 3 GHz Spectrum Analyzer with Built-in Preamp and Tracking Generator
Instek GSP-9300BTG 9 kHz - 3 GHz Spectrum Analyzer with Built-in Preamp and Tracking Generator
Instek GSP-9300BTG 9 kHz - 3 GHz Spectrum Analyzer with Built-in Preamp and Tracking Generator
Instek GSP-9300BTG 9 kHz - 3 GHz Spectrum Analyzer with Built-in Preamp and Tracking Generator
from
Rp.86,700,0000
Ex Tax: Rp.86,700,0000
  • Brand: GW Instek
  • Part Number: GSP-9300BTG
  • Availability: 4 - 6 WEEKS
  • Last Updated: 04 Aug 2023
GW Instek GW Instek
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The Instek GSP-9300BTG is a 3GHz spectrum analyzer with installed tracking generator that meets basic RF measurement requirements. It provides the frequency stability of 0.025ppm; the aging rate of 1ppm/year; a built-in preamplifier; the base noise of -149dBm/Hz, and more than 20 measurement applications, including AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test. While collocating with TG option, GSP-9300BTG can conduct frequency response or power linearity tests for components.

For monitoring signals, the GSP9300BTG provides a Topographic display mode, which is capable of distinguishing continuous or random signals by using color temperature. Spectrogram mode provides a time axis on spectrum display that allows users to observe signal variations based upon the reference of time. Split window mode allows different parameter settings for each display window. Additionally, the GSP-9300BTG also provides user-friendly interfaces such as display mode, help, multi-languages, and fast data logging, etc. Interfaces and software include USB/RS-232/LXI/MicroSD/GPIB (option)/DVI output and dedicated PC software IVI Driver.

TThe GSP-9300BTG, with its unique features, including auto wake-up, sequence function, and limit line testing, is specially designed to meet the requirements of production lines. The patent design of heat conduction allows the GSP-9300BTG to substantially reduce the warm-up time so as to expedite production processes. Options include carrying bag, battery module, EMI antenna set and rack accessories. The compact design of GSP-9300BTG satisfies either field testing or the integration of automatic testing systems.
