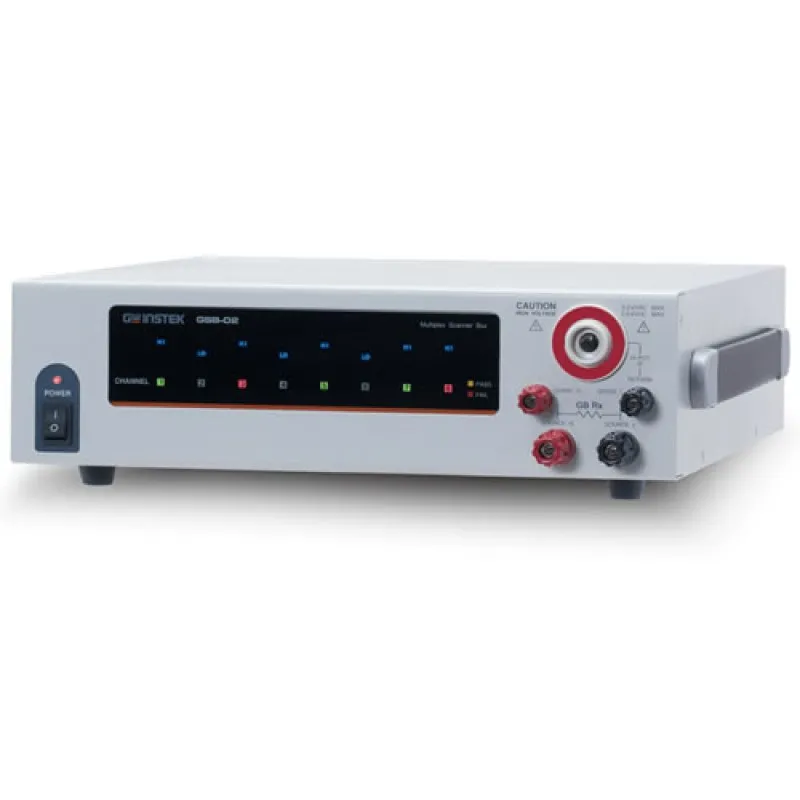

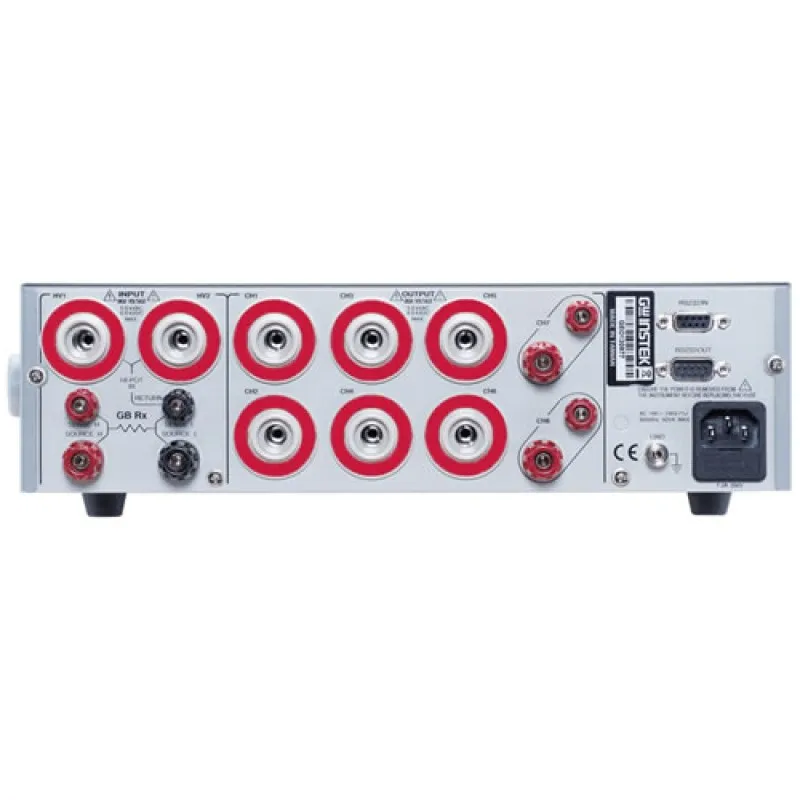

Name: Instek GSB-02 Multiplex Scanner Box, 6-Channel High Voltage Scan & 2-Channel Ground Bond Scan
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Instek GSB-02 Multiplex Scanner Box, 6-Channel High Voltage Scan & 2-Channel Ground Bond Scan

0 reviews • Write a review

from

Rp.39,700,000

Brand: GW Instek
Part Number: GSB-02
Availability: 4 - 6 WEEKS
Last Updated: 04 Aug 2023

GW Instek

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

The Instek GSB02 6 Channel High Voltage and 2 Channel Ground Bond Scanner Box has a function that distributes the test voltage or current provided by the models GPT-9800/9900/9900A series to multiple test points. Up to eight channels can be used for outputs on one scanner. Up to four scanners can be connected to the tester, allowing a maximum of 32 channels. The user can conduct AC/DC withstanding, insulation resistance and ground bond test on test points depending selected scanner model.

An electric potential mode for each channel - HI (voltage applied), LO (return) and X (open mode) can be set either by the front panel operation or through commands by the USB/GPIB(Option) of models GPT-9800/9900/9900A. The multiplex scanner permits specified setting - AC/DC withstanding or insulation resistance or ground bond tests on assigned one of the eight test channel.
