GW Instek PSW [PSW 250-13.5] Single-Channel Multi-Range Programmable Switching DC Power Supply, 250V/13.5A, 1080W

GW Instek PSW [PSW 250-13.5] Single-Channel Multi-Range Programmable Switching DC Power Supply, 250V/13.5A, 1080W
New
GW Instek PSW [PSW 250-13.5] Single-Channel Multi-Range Programmable Switching DC Power Supply, 250V/13.5A, 1080W
0 reviews • Write a review
Add to Cart
Add to Wish List Compare this Product

The GW Instek PSW 250-13.5 is a high-performance 1080W programmable switching DC power supply featuring multi-range voltage (0 - 250V) and current (0 - 13.5A) operation. Key features include CV/CC priority, adjustable slew rates, parallel operation (up to 3 units), standard USB/LAN interfaces, and a high-power density design suitable for battery and LED testing. The GW Instek PSW 250-13.5 (0 -250V, 0 - 13.5A, 1080W) is a programmable, multi-range switching DC power supply designed for high-power, flexible applications. Key uses include CV/CC priority testing (LEDs/capacitive loads), industrial burn-in/aging, battery simulation, and automated testing (ATE) in manufacturing.

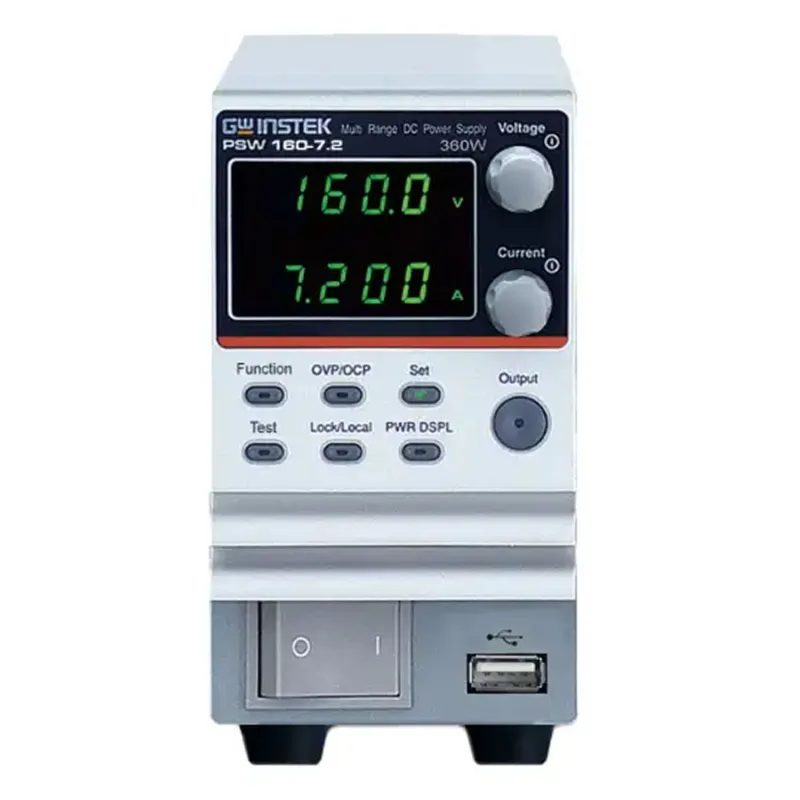

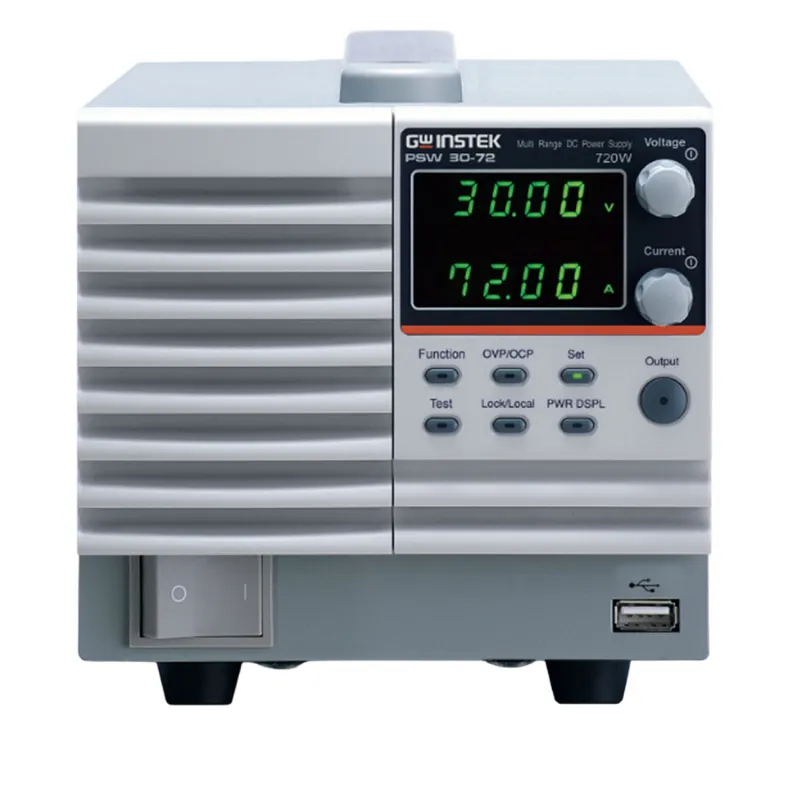

The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30 V, 40 V, 80 V, 160 V, 250 V, and 800 V rated voltages and 360 W, 720 W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements. The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode. Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.

  Product Options 0 Item Selected
Model
Product Name
Price
Available
Quantity
GW Instek PSW [PSW 250-13.5] Single-Channel Multi-Range Programmable Switching DC Power Supply, 250V/13.5A, 1080W
PSW 250-13.5
Rp.90,108,3870
4 - 6 WEEKS
