Checkline Cedar DI-1M Digital Torque Tester (4 Models In This Product Family)

Name: Checkline Cedar DI-1M Digital Torque Tester (4 Models In This Product Family)
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Checkline Cedar DI-1M Digital Torque Tester (4 Models In This Product Family)

from

Rp.83,074,8390

Ex Tax: Rp.83,074,8390

Brand: Checkline
Part Number: DI-1M
Availability: 4 - 6 WEEKS
Last Updated: 29 Jan 2025

Checkline

Qty

Add to Cart

Add to Wish List Compare this Product

Configure Options

Tags: Additel , Digital , Pressure , Calibrators

Description

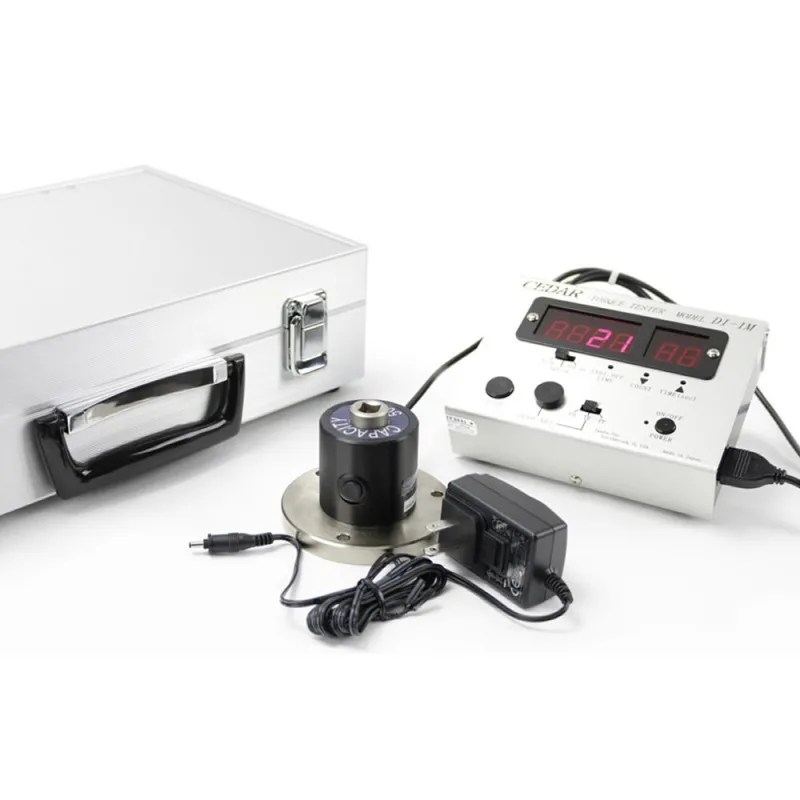

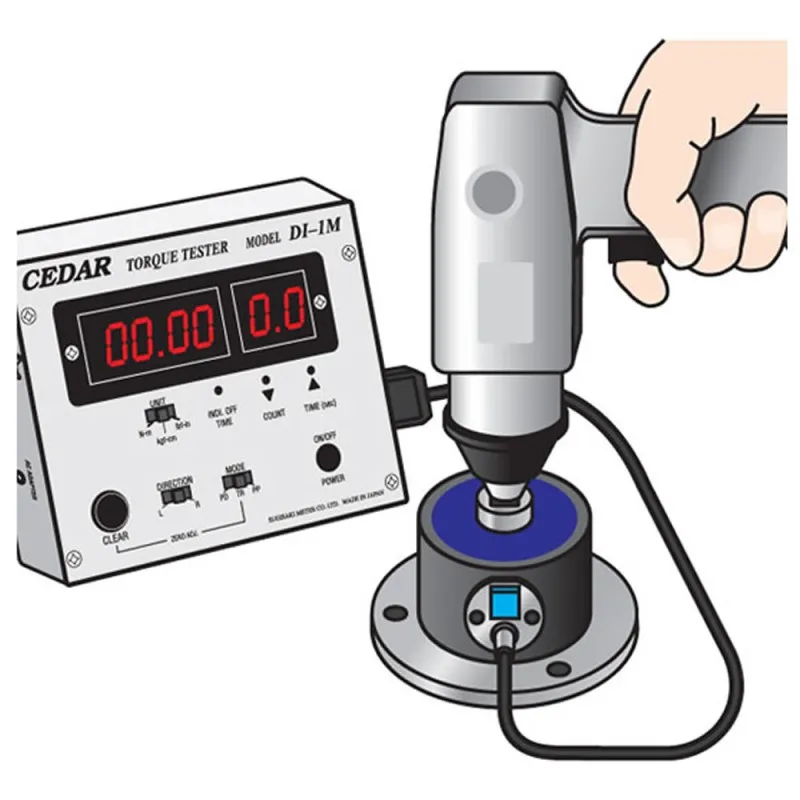

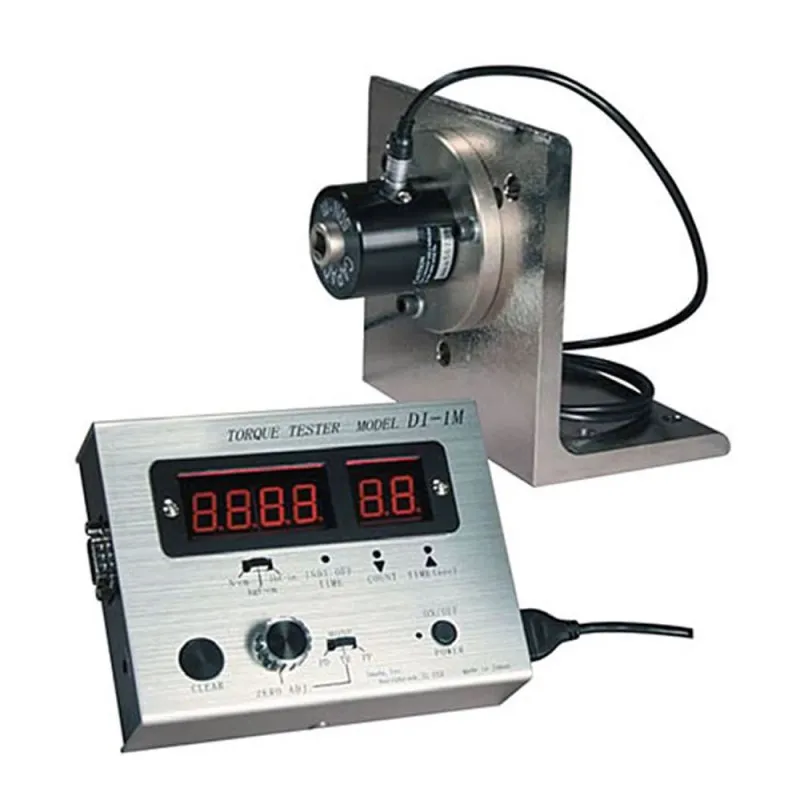

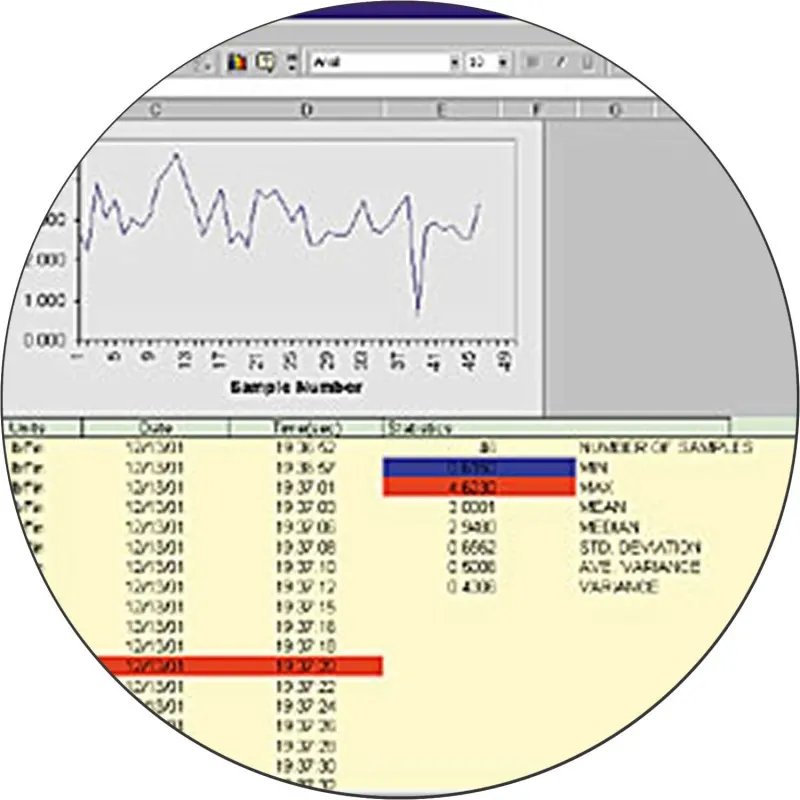

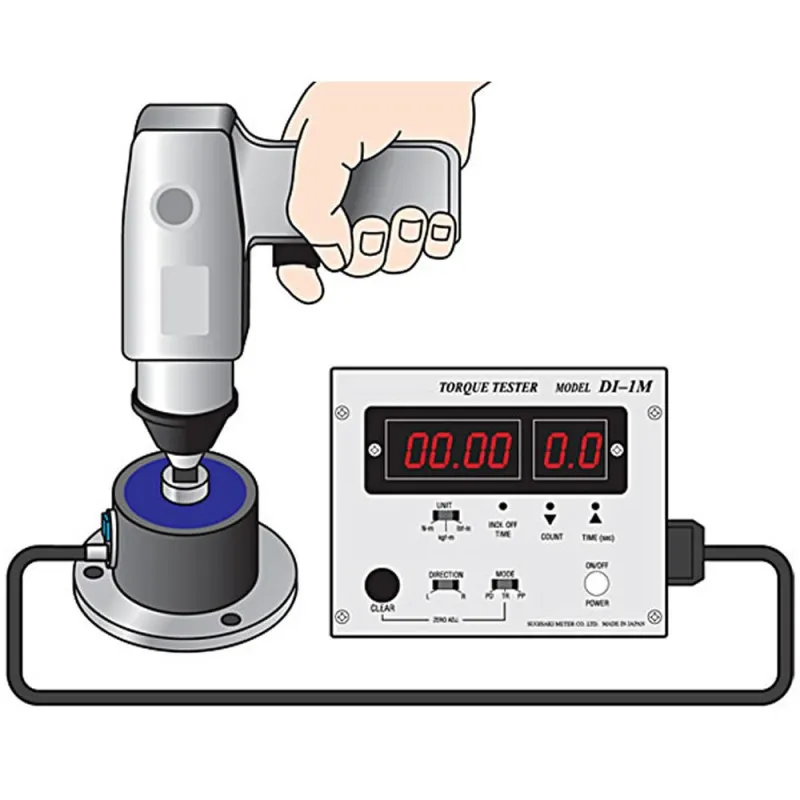

The DI-1M Digital Torque Tester is perfectly suited for on-the-spot calibration of impact drivers and air tools. Calibrate your own air tools and impact wrenches and save down time. These fast response units give a digital readout of peak value in either clockwise or counterclockwise direction and also indicate the number of blows for a selected time period from 0.1 to 9.9 seconds. These instruments have an accuracy of ±0.5%, ±1 LSD and lbf-in/lbf-ft, kgf-cm/kgf-m, or N-cm/N-m units are selectable. Virtual RS-232 serial output, auto zero reset, auto shutoff and low battery indicator complete the set of features. It is powered by an internal NiMH battery or the included AC adapter. Operation Modes: Peak, Real Time and Peak Down modes are selectable. Peak mode captures the peak torque achieved during a test. PEAK reading will not change until a higher value is measured. Real Time mode displays the real time transient torque value. Peak down captures the critical first peak value and will not change even if a higher value is subsequently measured. The DI-1M also provides peak data for SPC (statistical process control) via the USB Virtual COM port. Click on the link here for torque tester data acquisition software.
