HT Instruments XL422 [HV000422] TRMS Three-Phase Current Datalogger

HT Instruments XL422 [HV000422] TRMS Three-Phase Current Datalogger
HT Instruments XL422 [HV000422] TRMS Three-Phase Current Datalogger
0 reviews • Write a review
from
Rp.38,500,0000
  • Brand: HT Instruments
  • Part Number: HV000422
  • Availability: 3 - 4 WEEKS
  • Last Updated: 07 Jun 2024
HT Instruments HT Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: HT Instruments , GSC60 , Power , Analyzer , Electrical , Safety , Tester

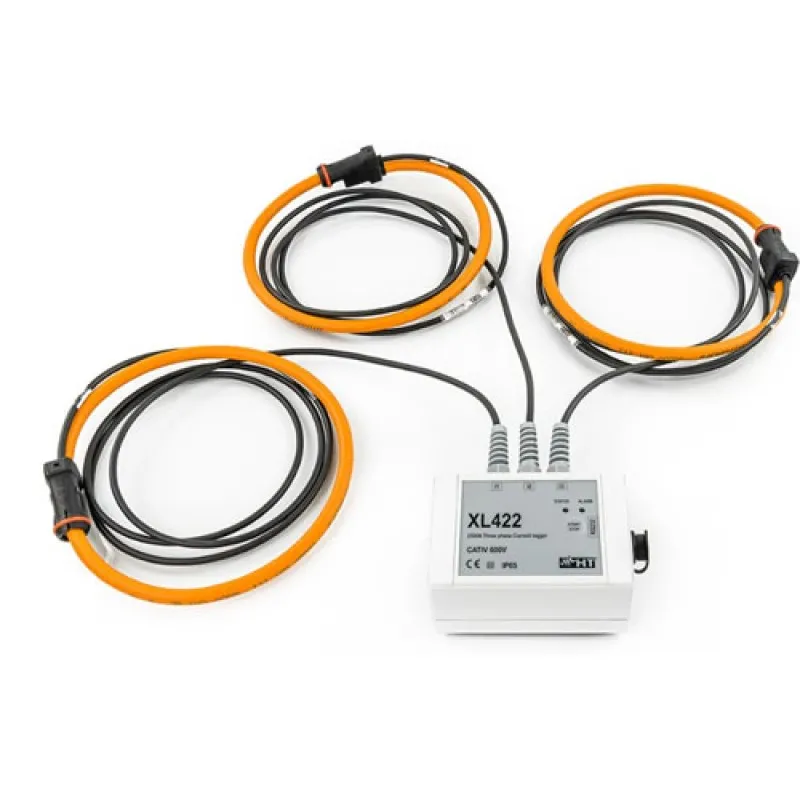

TRMS three-phase current data logger
XL422 is a Data Logger capable of measuring and recording the true root mean square(TRMS) value of AC current up to 2500A in three-phase 3-wire electric systems for different applications (evaluation of load currents, rated powers of transformers, etc.).
The device has a comfortable structure with integrated flex clamp jaws which allow surrounding also big-sized cables or bars. Thanks to a an advanced memory management algorithm it is possible to monitor a system even for a long time. The device starts recording with a sampling period which can be selected through software among 1, 6, 30 and 60 seconds and, when memory is almost full, the previously recorded values are “re-sampled” according to the subsequent value of the sampling period, thus freeing part of the memory; the device then goes on recording new values, using the new measuring interval. In this way, it is possible to keep the device recording up to approximately 90 days. Each recording is kept stored in the internal memory and can be downloaded and displayed on the PC always through a dedicated software. Data Logger XL422 is also provided with a special adhesive strap which makes it possible to place it in any place in the installation where measuring is needed. The high protection rating (IP65) makes this device fully reliable also under extreme operating conditions.
