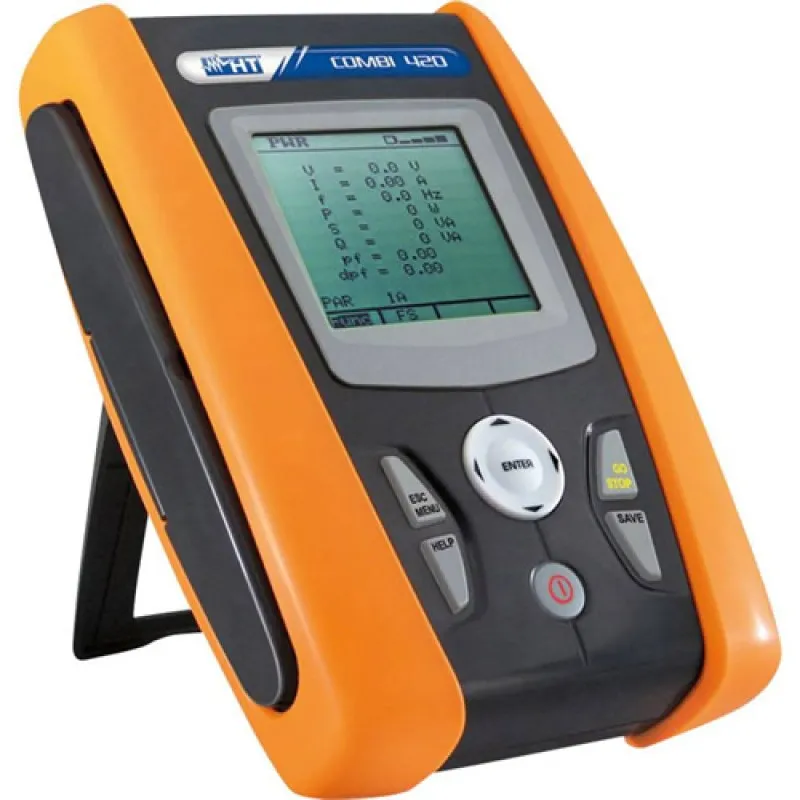

HT Instruments COMBI 420 [HV000420] Multifunction Installation Tester

HT Instruments COMBI 420 [HV000420] Multifunction Installation Tester
HT Instruments COMBI 420 [HV000420] Multifunction Installation Tester
0 reviews • Write a review
from
Rp.28,650,0000
Ex Tax: Rp.28,650,0000
  • Brand: HT Instruments
  • Part Number: HV000420
  • Availability: 3 - 4 WEEKS
  • Last Updated: 07 Jun 2024
HT Instruments HT Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

COMBI420 tests to all local regulations (17th edition) and provides test results for complete documentation. It measures overall earth resistance, tests on RCDs type A and AC up to a rated current of 1A, Insulation up to 1000V, Continuity with 200mA and short-circuit currents, it also allows measuring and saving environmental parameters (illuminance, temperature), leakage current and the electric quantities active power, harmonics, power factor on single-phase systems and, last but not least, it offers the possibility of checking phase sequence only using one lead.

The internal memory allows saving the measurements carried out in order to subsequently transfer them onto the PC through the serial connection. The instrument has been provided with the innovative AUTO function: by selecting this function and only setting the value of RCD current, COMBI420, connected to a power outlet, carries out tests of overall earth resistance, on RCDs and insulation tests in a sequence. At the end of the test, the device shows all results with the indication of compliance or non-compliance with the standards with simple symbols OK or NOT OK.
