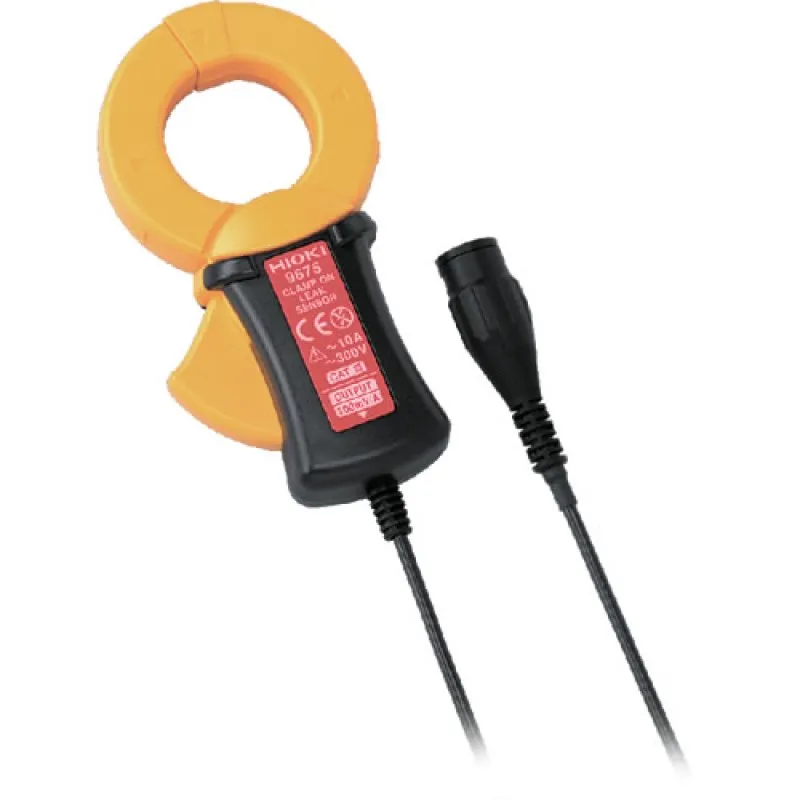

Hioki 9675 [9675] Clamp On Leak Sensor, 10 AAC Voltage Output

Hioki 9675 [9675] Clamp On Leak Sensor, 10 AAC Voltage Output
Hioki 9675 [9675] Clamp On Leak Sensor, 10 AAC Voltage Output
from
Rp.13,800,0000
Ex Tax: Rp.13,800,0000
  • Brand: Hioki
  • Part Number: 9675
  • Availability: 2 - 4 WEEKS
  • Last Updated: 04 Jun 2024
Hioki Hioki
Add to Cart
Add to Wish List Compare this Product
Tags: Hioki , 9675 , Clamp On , Leak Sensor , 10 AAC , Voltage , Output

10 amps AC rated input. Maximum rated voltage to earth 300 volts. 1-11/64" diameter. 9.84' cord length. 1 Year warranty.Primary current rating: 10 A AC (Leak current, 50/60 Hz. Max. allowable input: Continuous 10 Arms (45 to 66 Hz).Output voltage: AC 100 mV/ A. Amplitude Accuracy: ±1.0 % rdg. ±0.005% f.s. (45 to 66 Hz). Phase Accuracy:  ±5° (50 or 60 Hz). Frequency characteristics: 40 Hz to 5 kHz: ±5 % (deviation from accuracy). Residual current:1 mA (With 10 A AC forward and return lines). Effect of external magnetic fields: Equivalent to 7.5A max. (With a magenetic fi eld of AC 400 A/m).Max. rated voltage to earth:  Less than 300 Vrms, (Insulated conductor). Core diameter: φ 30 mm (1.18 in). Power supply: Not required


Quickview
Hioki PW3360 [PW3360-20] Clamp-on Power Logger, 3-Phase 4-Wire Circuits, Main Unit Only
Brand: Hioki
Hioki PW3360 [PW3360-20] Clamp-on Power Logger, 3-Phase 4-Wire Circuits, Main Unit Only
The Hioki PW3360-20 Clamp On Power Meter is a multi-channel power measuring device utilizing clamp sensor input to accurately and safely measure power..
from
Rp.42,500,0000
Ex Tax:Rp.42,500,0000
Add to Cart
Add to Wish List Compare this Product
Quickview
Hioki PW3360 [PW3360-20-01/100] Clamp-on Power Logger Kit (100 A) with CT9660 Clamps
Brand: Hioki
Hioki PW3360 [PW3360-20-01/100] Clamp-on Power Logger Kit (100 A) with CT9660 Clamps
The Hioki PW3360-20-01/100 Clamp On Power Meter with CT9660 Clamp Sensor set is a multi-channel power measuring device utilizing clamp sensor input to..
from
Rp.67,950,0000
Ex Tax:Rp.67,950,0000
Add to Cart
Add to Wish List Compare this Product
Quickview
Hioki PW3360 [PW3360-20-01/1000] Clamp-on Power Logger Kit (1000 A) with CT9669 Clamps
Brand: Hioki
Hioki PW3360 [PW3360-20-01/1000] Clamp-on Power Logger Kit (1000 A) with CT9669 Clamps
The Hioki PW3360-20-01/1000 Clamp On Power Meter with CT9669 Clamp Sensor set is a multi-channel power measuring device utilizing clamp sensor input t..
from
Rp.74,850,0000
Ex Tax:Rp.74,850,0000
Add to Cart
Add to Wish List Compare this Product
Quickview
Hioki PW3360 [PW3360-20-01/5000] Clamp-on Power Logger Kit (5000 A) with CT9667 Clamps
Brand: Hioki
Hioki PW3360 [PW3360-20-01/5000] Clamp-on Power Logger Kit (5000 A) with CT9667 Clamps
The Hioki PW3360-20-01/5000 Clamp On Power Meter with CT9667 Clamp Sensor set is a multi-channel power measuring device utilizing clamp sensor input t..
from
Rp.79,500,0000
Ex Tax:Rp.79,500,0000
Add to Cart
Add to Wish List Compare this Product
Quickview
Hioki PW3360 [PW3360-21] Clamp-on Power Logger, 3-Phase 4-Wire Circuits with Harmonic Analysis
Brand: Hioki
Hioki PW3360 [PW3360-21] Clamp-on Power Logger, 3-Phase 4-Wire Circuits with Harmonic Analysis
The Hioki PW3360-21 monitors power demand and other power parameters to aid in energy audits and validate energy saving measures. It shows the demand ..
from
Rp.42,500,0000
Ex Tax:Rp.42,500,0000
Add to Cart
Add to Wish List Compare this Product
Quickview
Hioki PW3360 [PW3360-21-01/100] Clamp-on Power Logger Kit with Harmonic Analysis and (100 A) CT9660 Clamps
Brand: Hioki
Hioki PW3360 [PW3360-21-01/100] Clamp-on Power Logger Kit with Harmonic Analysis and (100 A) CT9660 Clamps
Hioki PW3360-21-01/100 Power Demand Analyzer Kit (100 A) with Harmonic Analysis and CT9660 Clamps. Hioki Clamp On Power Logger PW3360-21 can record po..
from
Rp.67,950,0000
Ex Tax:Rp.67,950,0000
Add to Cart
Add to Wish List Compare this Product
Quickview
Hioki PW3360 [PW3360-21-01/1000] Clamp-on Power Logger Kit (1000 A) with Harmonic Analysis and CT9669 Clamps
Brand: Hioki
Hioki PW3360 [PW3360-21-01/1000] Clamp-on Power Logger Kit (1000 A) with Harmonic Analysis and CT9669 Clamps
Hioki PW3360-21-01/1000 Power Demand Analyzer Kit (1000 A) with Harmonic Analysis and CT9669 Clamps. Hioki Clamp On Power Logger PW3360-21 can record ..
from
Rp.74,950,0000
Ex Tax:Rp.74,950,0000
Add to Cart
Add to Wish List Compare this Product
Quickview
Hioki PW3360 [PW3360-21-01/500] Clamp-on Power Logger Kit (500 A) with Harmonic Analysis and CT9661 Clamps
Brand: Hioki
Hioki PW3360 [PW3360-21-01/500] Clamp-on Power Logger Kit (500 A) with Harmonic Analysis and CT9661 Clamps
Hioki PW3360-21-01/500 Power Demand Analyzer Kit (500 A) with Harmonic Analysis and CT9661 Clamps. Hioki Clamp On Power Logger PW3360-21 can record po..
from
Rp.63,500,0000
Ex Tax:Rp.63,500,0000
Add to Cart
Add to Wish List Compare this Product
