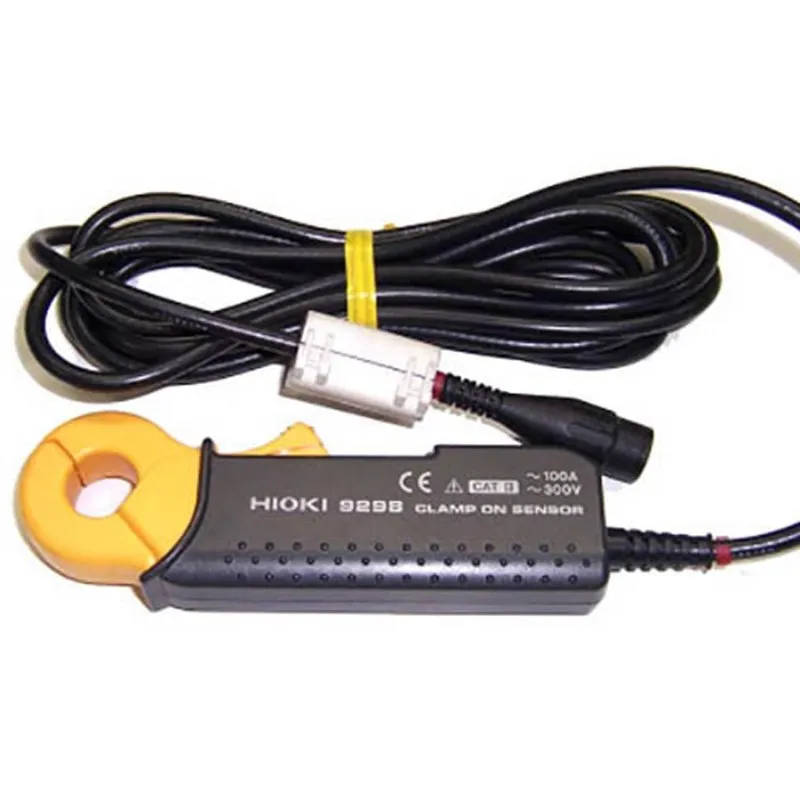

Hioki 9298 [9298] 300V/130A AC Current Output Clamp-on Sensor *DISCONTINUED*

Hioki 9298 [9298] 300V/130A AC Current Output Clamp-on Sensor *DISCONTINUED*
Hioki 9298 [9298] 300V/130A AC Current Output Clamp-on Sensor *DISCONTINUED*
0 reviews • Write a review
from
Rp.13,700,0000
  • Brand: Hioki
  • Part Number: 9298
  • Availability: DISCONTINUED
  • Last Updated: 04 Jun 2024
Hioki Hioki
Add to Cart
Add to Wish List Compare this Product
Tags: Hioki , 9290-10 , Clamp On , Adapter , 1000 A AC

Clamp-on  sensors for the clamp logger 3636-20, and Micro HiCorder 8205-10/8206-10, for input up to AC 500A. Sensors are designed with a safety barrier to protect the user from being in direct contact with live conductors and completely meet all CE marking requirements. Rated output current 100 mA AC. Accuracy (at 45 to 66 Hz) Amplitude: +/-0.5 percent rdg. +/-0.2 percent f.s., Full scale (f.s.) is the 3166 range value. Phase: +/-1 degree or less, +/-1.3 degree (at 90 A or more). Frequency characteristics 66 Hz to 5 kHz (+/-1 percent or less). Maximum allowable input continuous 130 A rms (45 to 66 Hz). Maximum circuit voltage 300 V AC rms (insulated wire). Core jaw diameter is 15mm (0.59'). Measures 1-103/128' width by 5-39/128' height by 53/64' depth. Cord length: 3m (9.84'). 1 Year warranty. & Sensors are designed with a safety barrier to protect the user from being in direct contact with live conductors,Completely meet all CE marking requirements,Clamp-on sensors for the clamp logger 3636-20, and Micro HiCorder 8205-10/8206-10,Rated output current 100 mA AC,1 Year warranty
