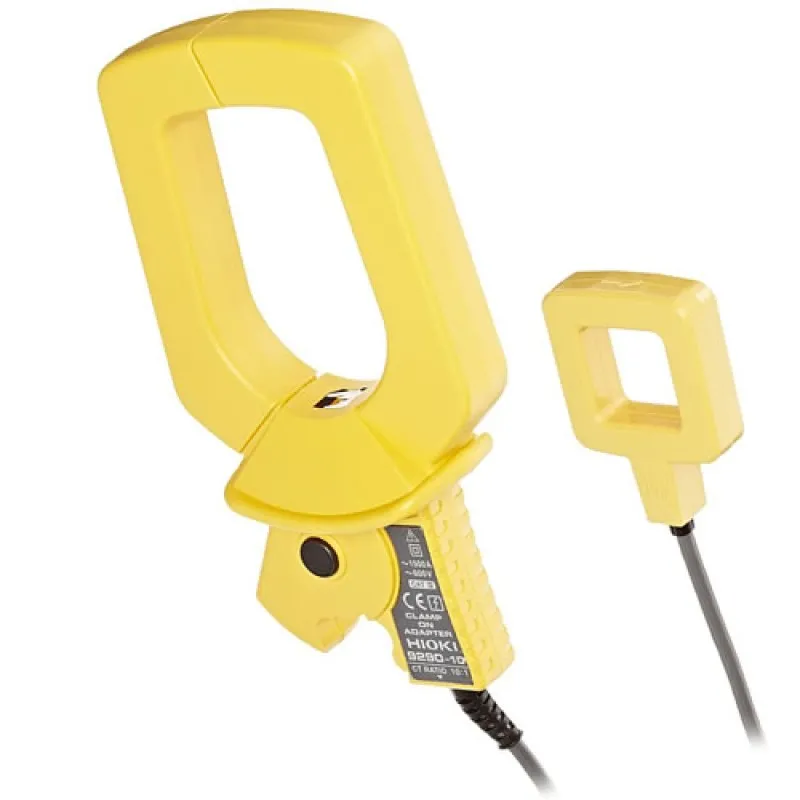

Hioki 929010 [9290-10] 1000A AC Clamp On Adapter

Hioki 929010 [9290-10] 1000A AC Clamp On Adapter
Hioki 929010 [9290-10] 1000A AC Clamp On Adapter
from
Rp.13,500,0000
Ex Tax: Rp.13,500,0000
  • Brand: Hioki
  • Part Number: 9290-10
  • Availability: 2 - 4 WEEKS
  • Last Updated: 04 Jun 2024
Hioki Hioki
Add to Cart
Add to Wish List Compare this Product
Tags: Hioki , 9290-10 , Clamp On , Adapter , 1000 A AC

Measurement range 0 to 1000 A AC (50/60 Hz, continuous use), Maximum 1500 A AC (50/60 Hz, 5 minutes or shorter) CT ratio 10 : 1. Accuracy (at 45 to 66 Hz) Amplitude: +/-1.5 percent rdg. at primary current 10 to 1500 A. Phase: +/-1.0 degree max. at primary current 10 to 1500 A. Frequency characteristics Amplitude: 40 to 1 kHz / +/-1 percent rdg. , 20 to 4 kHz / +/-2.5 percent rdg. Phase: 40 to 1 kHz / +/-1.0 degree max. , 20to 4 kHz / +/-3.0 degree maximum. Max. circuit voltage 600 V AC rms (insulated wire). Core jaw diameter 2-5/32" or 3-9/64" width busbar. Secondary core diameter 1-3/64" by 1-3/64". Dimensions 3-57/64" Width by 7-5/8" height by 1-19/64" depth, 3m cord length. Accessories Mark band (6). 1 year warranty.
