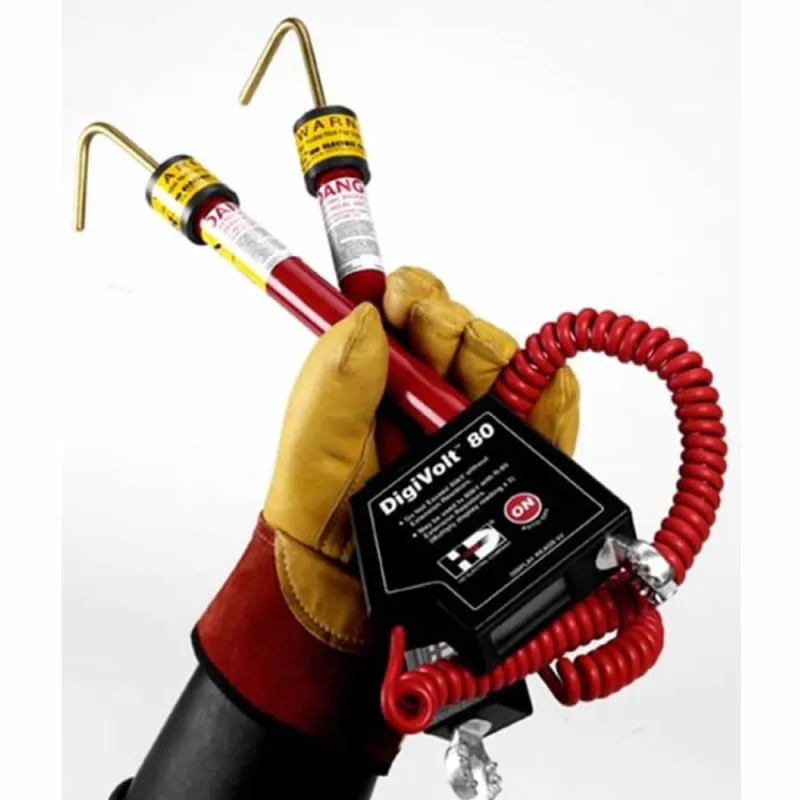

HDE DVM80T [DVM-80T] Dual Stick Phasing Voltmeter with Capacitive Test Point Mode, 50V-80kV

HDE DVM80T [DVM-80T] Dual Stick Phasing Voltmeter with Capacitive Test Point Mode, 50V-80kV
HDE DVM80T [DVM-80T] Dual Stick Phasing Voltmeter with Capacitive Test Point Mode, 50V-80kV
from
Rp.42,500,000
Ex Tax: Rp.42,500,000
  • Brand: HDE Company
  • Part Number: DVM-80T
  • Availability: 4 - 6 WEEKS
  • Last Updated: 04 Jun 2024
Tags: Fluke , Basic , Battery , Analyzer

The DigiVolt-80 products are compact, high accuracy digital voltmeter and phasing instruments designed to measure voltages up to 40kV and up to 80kV when used with a pair of add-on resistors. The two-stick design can be used in both overhead and underground applications. The digital meter displays the true RMS voltage on the conductor.

The DVM-80 unitsincorporate Phase Accurate Technology which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1%. The DVM-80 products are the only digital high voltage metersto include thistechnology for high accuracy voltage measurements.

The DigiVolt-80T includes an elbow test point mode, which is displayed by a blinking decimal point. Simply presstheON button to activate and de-activate thisfeature.

Applications:

  • Measure voltage and phase conductors on both overhead and underground systems
  • Verify a conductor is de-energized prior to grounding
  • Determine if multiple conductors are in-phase or out-of-phase
  • Test underground cable for faults (optional Cable Fault Tester and bushing probesrequired)
  • Discharge underground cables and other equipment that hold capacitive charges
  • Test point mode on DVM-80T allows measurements and phasing on elbow test points
