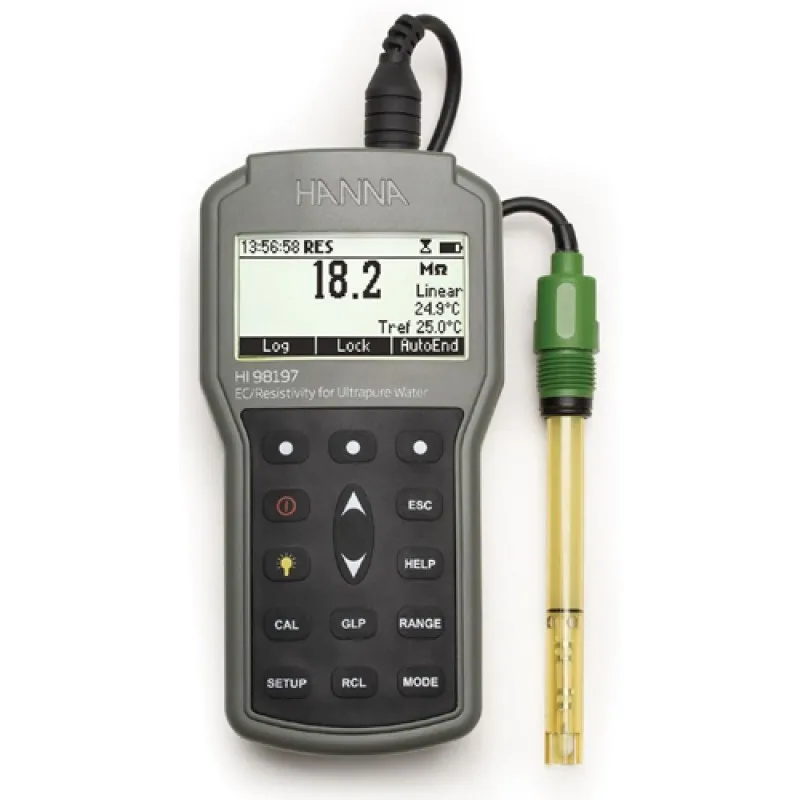

Hanna Instruments HI98197 Ultra Pure Water EC / Resistivity Waterproof Portable Meter

Hanna Instruments HI98197 Ultra Pure Water EC / Resistivity Waterproof Portable Meter
Hanna Instruments HI98197 Ultra Pure Water EC / Resistivity Waterproof Portable Meter
from
Rp.32,150,0000
Ex Tax: Rp.32,150,0000
  • Brand: Hanna Instruments
  • Part Number: HI98197
  • Availability: 021 - 53167044 | 0812-83861970
  • Last Updated: 04 Jun 2024
Hanna Instruments Hanna Instruments
Add to Cart
Add to Wish List Compare this Product
Tags: Hanna , Instruments , HI701 , Checker , HC , Free Chlorine , Colorimeter

The HI98197 is supplied with a specialized HI763123 four-ring conductivity probe that not only allows for a 0.001 μS/cm resolution measurement but also has screw type threads for insertion into the HI605453 AISI 316 stainless steel flow cell. The HI763123 has a built-in temperature sensor and a adjustable temperature coefficient for accurate readings that cover a complete range with a single sensor. The four-ring technology also eliminates the polarization effect that is common with standard two pole versions. The HI763123 conductivity probe connects to the meter with a unique quick connect waterproof DIN connector allowing for a secure attachment without a threaded connection that is also easy to remove.

High purity water used in power generation, semiconductor manufacturing and other industries can be difficult to measure can be difficult to measure due the ability of carbon dioxide (CO2) to diffuse into water and forming carbonic acid (H2CO3). The carbonic acid will dissociate into hydrogen ions (H+) and bicarbonate ions (HCO3-). These ions will increase the conductivity and decrease the resistivity of the water. In order to measure high purity water accurately it is necessary to perform a continuous flow measurement. The HI98197 uses the HI763123 four ring probe with a threaded connection that is screwed into a stainless steel body flow cell. The flow cell is connected to a water source to determine the conductivity or resistivity whichever is preferred. The HI98197 is an ideal meter for monitoring the mixed bed resin or equivalent system that produces high purity water of 18.2 MΩ * cm at 25 °C.
