Greyline Instruments SE16B [SE16B] Single Clamp-On Transit Time Ultrasonic Transducer (two are required for use)

Greyline Instruments SE16B [SE16B] Single Clamp-On Transit Time Ultrasonic Transducer (two are required for use)
Greyline Instruments SE16B [SE16B] Single Clamp-On Transit Time Ultrasonic Transducer (two are required for use)
from
Rp.17,850,0000
  • Brand: Greyline Instruments
  • Part Number: SE16B
  • Availability: 4 - 6 WEEKS
  • Last Updated: 30 May 2024

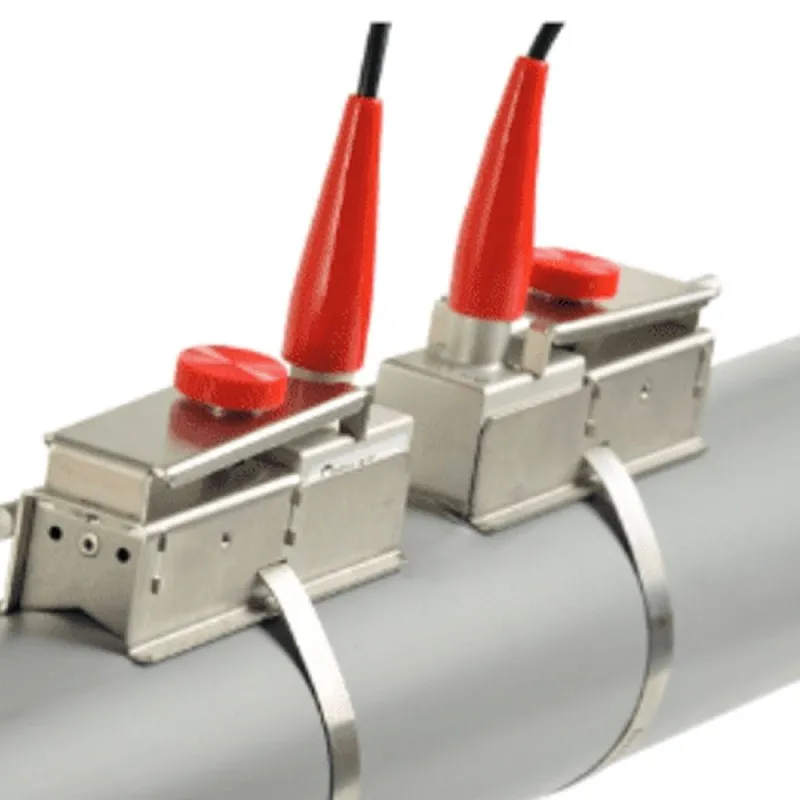

The Greyline Instruments SE16B is a clamp-on transit time ultrasonic transducer for measuring flow in any pipe material that conducts ultrasound including PVC, carbon steel, stainless steel, cast iron, fiberglass, and lined pipes. The clamp-on sensor is designed to fit on the outside of any pipe diameter from 1 to 24 inches. This is a single transducer; two transducers are required for the meter to function.


Features:


  • For pipe diameters from 2 to 24 inches
  • -40 to 250°F (-40 to 120°C) operating temperature
  • 1.28MHz operating frequency
  • Stainless steel and Ultem sensor housing
  • 25ft (7.5m) RG58 coaxial cable w/ BNC connectors
    • Extend via optional TTJB junction box & DXC cable

      What's In The Box:

      • (1) SE16B Ultrasonic Transducer

      Brochure/Datasheet


      Instruction manual


      Note: Prices are not binding , subject to change without prior notice
