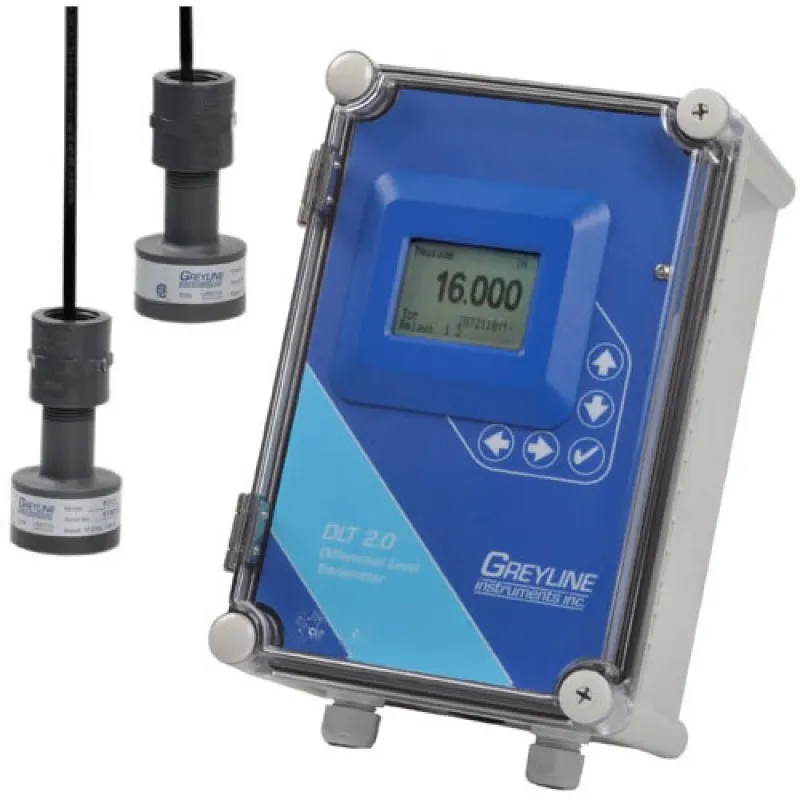

Greyline Instruments DLT 2.0 Differential Level Transmitter

Greyline Instruments DLT 2.0 Differential Level Transmitter
Greyline Instruments DLT 2.0 Differential Level Transmitter
from
Rp.84,700,0000
Ex Tax: Rp.84,700,0000
  • Brand: Greyline Instruments
  • Part Number: DLT-2.0-A-1-A-1-D-1-A-1-A
  • Availability: 4 - 6 WEEKS
  • Last Updated: 30 May 2024
Greyline Instruments Greyline Instruments
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: GE , TransPort , Tansducers , Pipes , Ultrasonic Flow Meter

Differential level and control plus open channel flow monitoring with two non-contacting ultrasonic sensors.
The Greyline Instruments DLT 2.0 differential level transmitter uses two non-contacting ultrasonic sensors to provide differential level and control as well as open channel flow monitoring. This versatility reduces costs and simplifies instrumentation and makes the DLT 2.0 a great solution for barscreen level control at wastewater treatment plants, pump stations and combined sewer systems.

The DLT 2.0 can measure both differential level plus flow through a flume. It includes two non-contacting ultrasonic sensors to measure level. With sensors positioned above a channel, up and downstream from the barscreen, the DLT 2.0 can display and transmit differential level. The downstream sensor can also be installed above a flume or weir to measure and totalize open channel flow.

The DLT 2.0 is easy to set up and operate. Simply use the built-in 5-button keypad/menu system to input the calibration parameters. Three 4-20mA outputs are configured to transmit upstream level, downstream level (or flow) and differential level. Built-in relays can be calibrated for level control, differential level control or open channel flow.

Other DLT 2.0 applications include two-tank inventory where you can monitor level in two tanks with one instrument. The DLT 2.0 will alternate display of level in both tanks plus transmit 4-20mA outputs. Use the built-in relays to activate alarms or level controls. This versatile dual-sensor instrument can also be configured as a submergence alarm for Parshall flumes.

Features:

  • Measures level, differential level and open channel flow
  • Two non-contacting ultrasonic sensors
  • Accuracy: ±0.25% of Range or 2 mm (0.08") whichever is greater
  • Repeatability and Linearity: ±0.1%
  • Watertight, dust tight NEMA4X (IP66) polycarbonate enclosure
  • Large white backlit LCD display
  • Three isolated 4-20mA outputs
  • Built-in 5-key calibratior
  • 2 programmable control relays
  • Optional 2 million point data logger
  • Optional intrinsically safe sensors
What's In The Box:
  • (2) PZ15 ultrasonic sensors with 15 ft. range
  • (2) 25 ft. coaxial sensor cables
  • (1) PC software utilities disk
  • (1) Installation and operation manual

Brochure/Datasheet

Instruction manual
