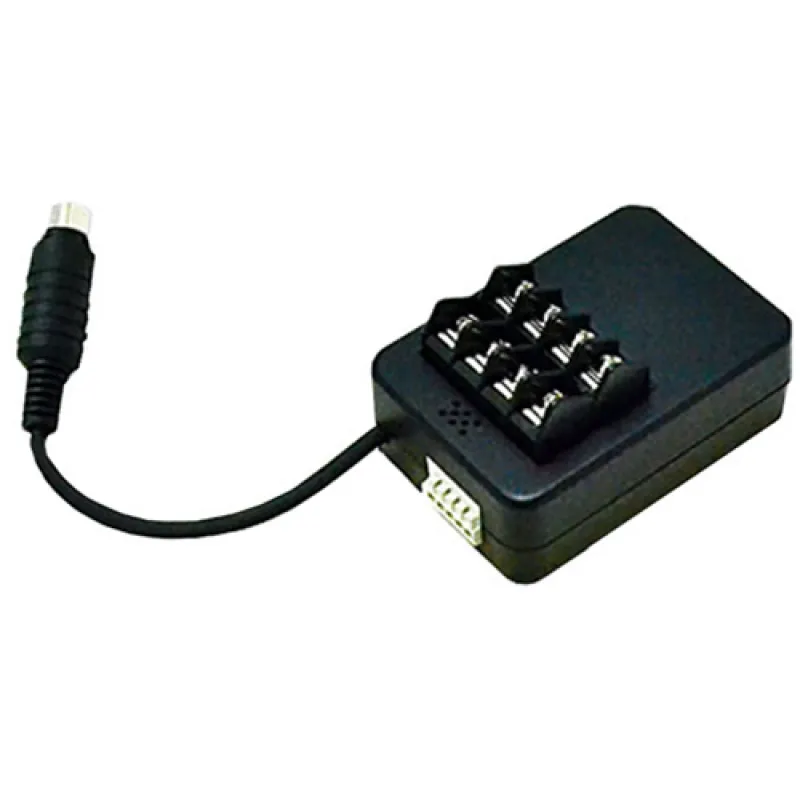

Graphtec GS-4VT [GS-4VT] 4-Channel Voltage and Temperature Terminal, 20 mV to 50 V, K/T-type

Graphtec GS-4VT [GS-4VT] 4-Channel Voltage and Temperature Terminal, 20 mV to 50 V, K/T-type
Graphtec GS-4VT [GS-4VT] 4-Channel Voltage and Temperature Terminal, 20 mV to 50 V, K/T-type
0 reviews • Write a review
from
Rp.14,700,000
  • Brand: Graphtec
  • Part Number: GS-4VT
  • Availability: 3 - 4 WEEKS
  • Last Updated: 30 May 2024
Graphtec Graphtec
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The GS-4VT 4-Channel Voltage/Temperature Terminal connects to the GL100 Data Logger for up to 4 channels of voltage DC (20 mV to 50 V as well as 1-5 V) and thermocouple (K or T type) temperature measurement. Each voltage/temperature channel is configurable. The GS4VT allows the combination of pulse and logic channels to be measured at the same time.

Features:

  • Measures Analog Voltage or Temperature
  • Can measure in Logic (signal pattern) or Pulse (instant/accumulated count)
  • Voltage/Temperature: 4 channels (measurement type for channels can each be separately selected)
  • Logic/pulse: 4 channels (measurement type for channels can be selected as set of 4 channels)
  • Input method of voltage/temperature: Scans by the photo-MOS-relay, all channels isolated input
  • Thermocouple range: K type -200 degree C to 1370 degree C, T type -200 degree C to 400 degree C
  • Burnout checking: Displaying warning when Thermocouple has failed
  • Can switch between Celsius and Fahrenheit temperature measurements
  • Connects to the GL100-N and GL100-WL Data Loggers

    What's In The Box:

    • (1) User manual
    • (1) Connection cable

    Brochure/Datasheet

    Instruction manual

    Note: Prices are not binding , subject to change without prior notice
