Name: Graphtec GL100 [GL100-N-DPA-AC50A] Data Logger with AC Current Sensor with Max 50A Current Sensor
Brand: PT. Indomultimeter Test Instrument
Availability: OutOfStock
Rating: 5 (1 reviews)

Graphtec GL100 [GL100-N-DPA-AC50A] Data Logger with AC Current Sensor with Max 50A Current Sensor

from

Rp.17,500,0000

Ex Tax: Rp.17,500,0000

Brand: Graphtec
Part Number: GL100-N-DPA-AC50A
Availability: 2 - 4 WEEKS
Last Updated: 30 May 2024

Graphtec

Qty

Add to Cart

Add to Wish List Compare this Product

Tags: Additel , Digital , Pressure , Calibrators

Description

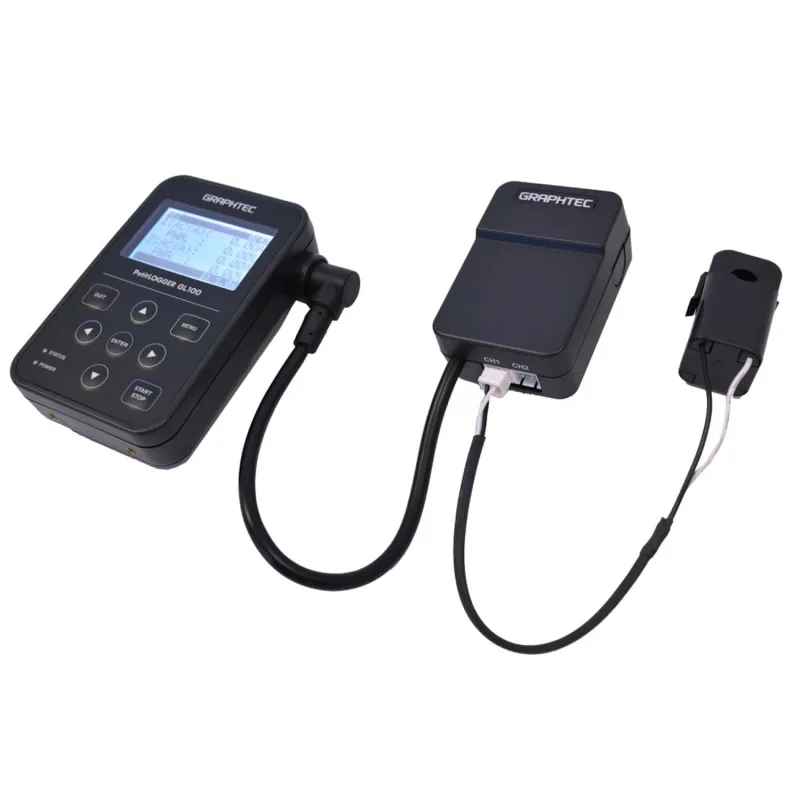

The Graphtec GL100-N-DPA-AC50A is a set that comes with the GL100-N compact Data Logger as well as the GS-DAP-AC AC Current Sensor Adapter, and the GS-AC50A AC Current Sensor. Its body allows users to switch sensors and terminals for measuring various signals. The main body dimension is a slight 2.6 in. wide x 3.93 in. tall x 1.06 in. thick (66 mm x 100 mm x 27 mm).

Powered by two AA batteries (not included) or USB bus power (included MicroB-A USB cable). With an on-board memory of 4.9 MB and external memory via Micro SD card slot, the GL100 body also includes one USB port (Micro B connection).

The display of the GL100NDPAAC50A is a backlit monochrome with 128×64 dot resolution displaying measured values and settings. Recorded data is not displayed on the main unit; Captured data can only be displayed on PC using included application software.

The GS-DAP-AC is an AC current sensor adapter that can connect with up to 2 sensors simultaneously, and can be connected to the GS-TH(not included with the GL100-N-CO2-DPA-LXUV), the GS-CO2, and the GS-LVUX.

The included GS-AC50A AC current sensor is 1 of 3 current sensors that can be connected to the GS-DAP-AC adapter and is rated at 50 A AC in current measurements.

Features:

This set comes with the GL100-N Data Logger, the GS-DAP-AC AC Current Sensor Adapter, and the

GS-AC50A AC Current Sensor

GS-DAP-AC can connect up to 2 of the GS-TH, GS-CO2, or GS-LXUV
GS-DAP-AC Current Sensor Adapter is not able to connect two sensors of the same type.
GS-AC50A has a rated measuring current of 50 A AC
Supports a variety of measurements by exchanging the input module
Real-time data capturing
Display the captured data value to the LCD in real-time and save the monitoring values
PC and smart mobile device software available
Industry-specific software: agriculture, logistics, power
Built-in memory: 4.9 MB
microSD memory card port

What's In The Box:

(1) GL100-N Standard Data Logger
(1) Quick Start Guide
(1) CD-Rom
(1) USB Cable
(1) 50AC AC Current Sensor
(1) Current Sensor Adapter

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice

Butuh penawaran harga? Silahkan segera klik disini!
