Graphtec GL100 [GL100-N-4TSR] Compact Data Logger Thermistor Set

Graphtec GL100 [GL100-N-4TSR] Compact Data Logger Thermistor Set
Graphtec GL100 [GL100-N-4TSR] Compact Data Logger Thermistor Set
0 reviews • Write a review
from
Rp.14,500,0000
  • Brand: Graphtec
  • Part Number: GL100-N-4TSR
  • Availability: 3 - 4 WEEKS
  • Last Updated: 30 May 2024
Graphtec Graphtec
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Configure the GL100-N-4TSR to Your Data Capture Needs

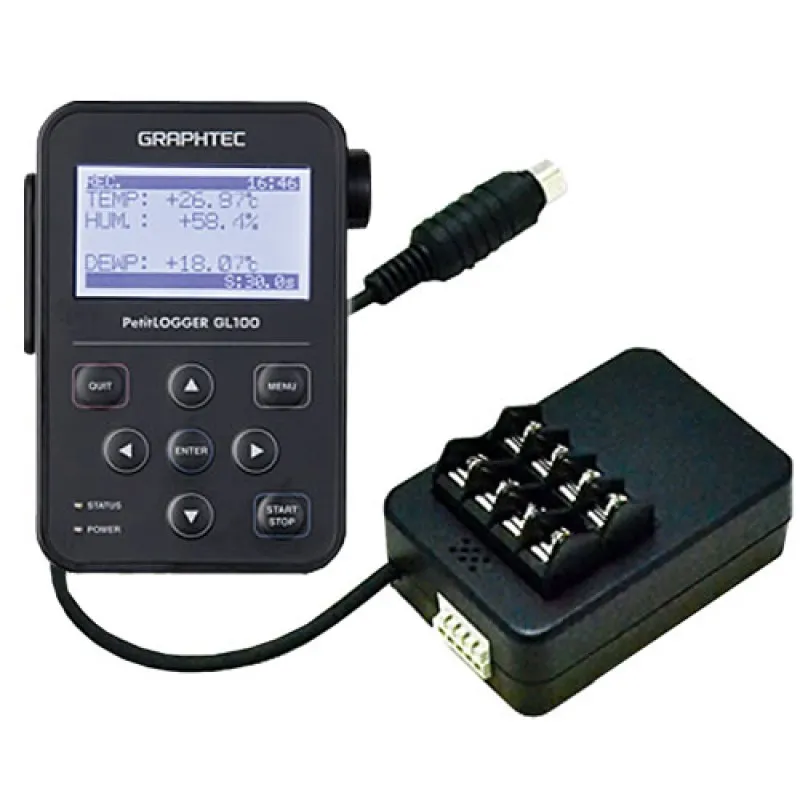

The GL100-N-4TSR is a set that comes with the GL100-N compact Data Logger as well as the GS-4TSR 4-Channel Input Thermistor Adapter. Its body allows users to switch sensors and terminals for measuring various signals. The main body dimension is a slight 2.6 in. wide x 3.93 in. tall x 1.06 in. thick (66 mm x 100 mm x 27 mm). Powered by two AA batteries (not included) or USB bus power (included MicroB-A USB cable). With an on-board memory of 4.9 MB and external memory via Micro SD card slot, the GL100 body also includes one USB port (Micro B connection).

The display of the GL100N4TSR is a backlit monochrome with 128×64 dot resolution displaying measured values and settings. Recorded data is not displayed on the main unit; Captured data can only be displayed on PC using included application software.

Features:

  • This set comes with the GL100-N Data Logger and the GS-4TSR Acceleration/Temperature Sensor
  • Real-time data capturing
  • Display the captured data value to the LCD in real-time and save the monitoring values
  • Supports a variety of measurements by exchanging the input module
  • PC and smart mobile device software available
  • Industry-specific software: agriculture, logistics, power
  • Built-in memory: 4.9 MB
  • microSD memory card port

    What's In The Box:

    • (1) User manual
    • (1) USB cable
    • (1) Input Thermistor Adapter
    • (1) Connection cable

    Brochure/Datasheet

    Instruction manual
