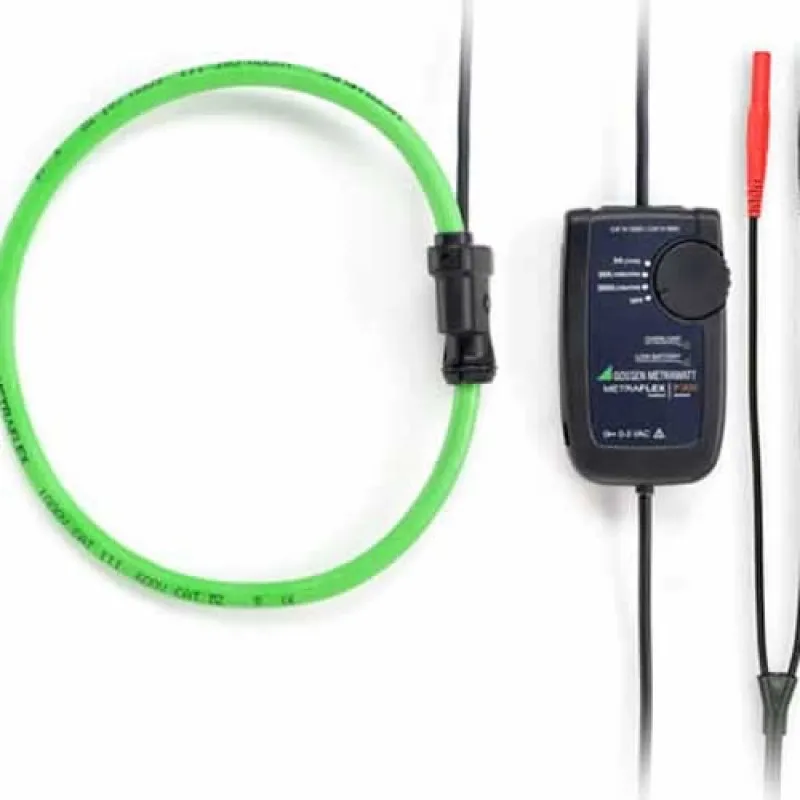

Gossen Metrawatt Z502E METRAFlex P300 Flexible AC Current Sensor

Gossen Metrawatt Z502E METRAFlex P300 Flexible AC Current Sensor
Gossen Metrawatt Z502E METRAFlex P300 Flexible AC Current Sensor
from
Rp.17,850,0000
Ex Tax: Rp.17,850,0000
  • Brand: Gossen Metrawatt
  • Part Number: Z502E
  • Availability: 4 - 6 WEEKS
  • Last Updated: 30 May 2024
Gossen Metrawatt Gossen Metrawatt
Add to Cart
Add to Wish List Compare this Product
Tags: Extech , PQ3220 , Flexible , Current , Clamp , Probes , 3000A

The flexible current sensor is used in combination with measuring instruments of up to 3 V AC. The flexible sensor loop can be placed around one or several conductors of any type and design (insulated cable, busbars, pipes). Internal batteries allow for an independent operation of the measuring amplifier.

Features:

  • Wide range of applications, 3 measuring ranges 3/30/300 A AC, but not for power measurements
  • Large bandwidth 20 Hz ... 4 kHz for harmonic analysis
  • Precise measurements even with low currents, due to wide dynamic range and high sensor sensitivity
  • Low conductor position influence and minimum stray field influence
  • Easy to operate in restricted space thanks to small sensor cross-section of 9.9 mm and slim end cap of 13.6 mm
  • Safe handling even with protection gloves; opening of sensor and measuring range setting in one-hand operation
  • Current sensor with protection type IP65, measuring amplifier with IP40
  • High level of safety for the user, measurement category 1000 V@CAT III, 600 V @ CAT IV and unlimited overload capacity

      What's In The Box:

      • (1) Z502E METRAFlex P300 Flexible AC Current Sensor
      • (1) Operating instructions

      Brochure/Datasheet

      Instruction manual

      Note: Prices are not binding , subject to change without prior notice
