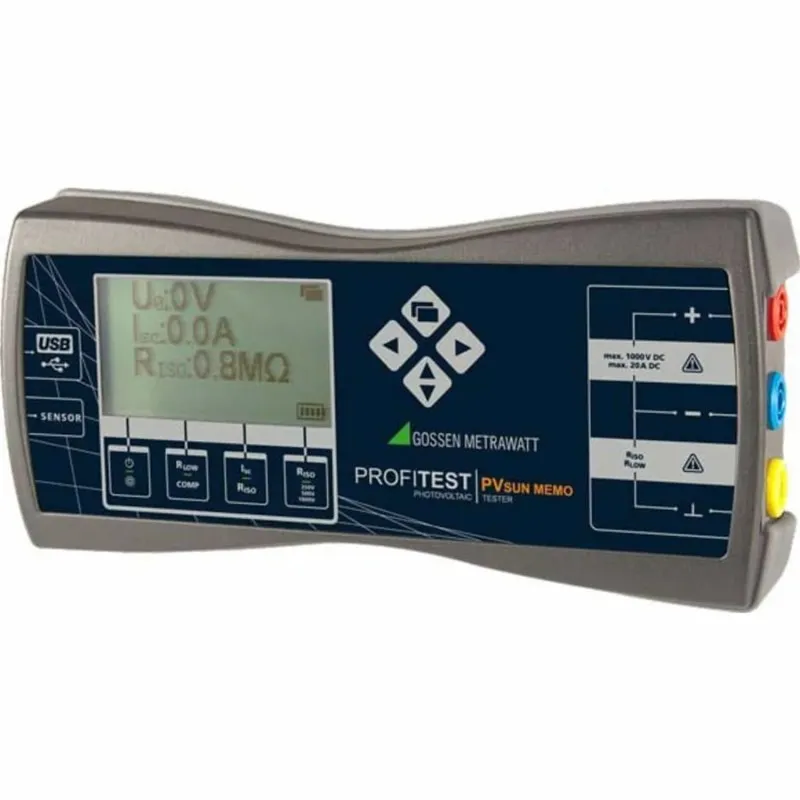

Gossen Metrawatt PROFITEST PVsun Memo [ M360E] PVsun Memo and Sensor Kit

Gossen Metrawatt PROFITEST PVsun Memo [ M360E] PVsun Memo and Sensor Kit
Gossen Metrawatt PROFITEST PVsun Memo [ M360E] PVsun Memo and Sensor Kit
from
Rp.50,950,0000
Ex Tax: Rp.50,950,0000
  • Brand: Gossen Metrawatt
  • Part Number: M360E
  • Availability: 4 - 6 WEEKS
  • Last Updated: 30 May 2024
Gossen Metrawatt Gossen Metrawatt
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The associated software allows for the acquisition of all PV system data and for direct transfer to the tester prior to performing the measurement. The PV system and the associated string are selected on site before each measurement. The measurement is stored after successful testing. After having successfully completed all tests and measurements, the entire data can be read in a simple and reliable manner via the USB interface and evaluated with the software.

Applications
With the PROFITEST PVSUN and the PROFITEST PVSUN MEMO, all required electrical safety tests at photovoltaic systems can be executed simply and safely in accordance with DIN EN 62446. The test instruments are suitable for testing PV modules and strings with up to 1,000 V / 20 A. In addition to insulation measurement, polarity testing and ground fault testing, protective conductor continuity can also be tested. The testers are distinguished by their ergonomic design and easy handling with a weight of only 500 g.

Features:

  • Voltage measurement: 0 - 1000 V DC
  • Current measurement (direct): 0 - 20 A DC
  • Insulation resistance measurement
  • Measuring range: 0 - 20 MΩ
  • Test voltages: 250, 500, 1000 V DC
  • Ground fault measurement: 0 - 1000 V DC
  • Testing for protective conductor continuity: 0 - 10 Ω / > 200 mA
  • Polarity test
  • Backlit LCD panel
  • Compact and rugged - for service calls under harsh conditions
  • Extensive accessories
  • DAkkS calibration certificate (optional)

What's In The Box:

  • (1) Test Instrument PROFITEST PVSUN MEMO
  • (4) Batteries 1.5V IEC LR6 (AA)
  • (3) Safety Measurements Cables 1.5m Red, Blue, and Yellow
  • (1) Solar Plug Adapter to MC3 and MC4
  • (1) Plug-on Safety Test Probe with Socket
  • (1) Plug-on Safety Alligator Clip with Socket
  • (1) Carrying Case with Foam Insert
  • (1) Set of Operating Instructions
  • (1) Interface Cable
  • (1) Analysis Software

Brochure/Datasheet

Instruction manual
