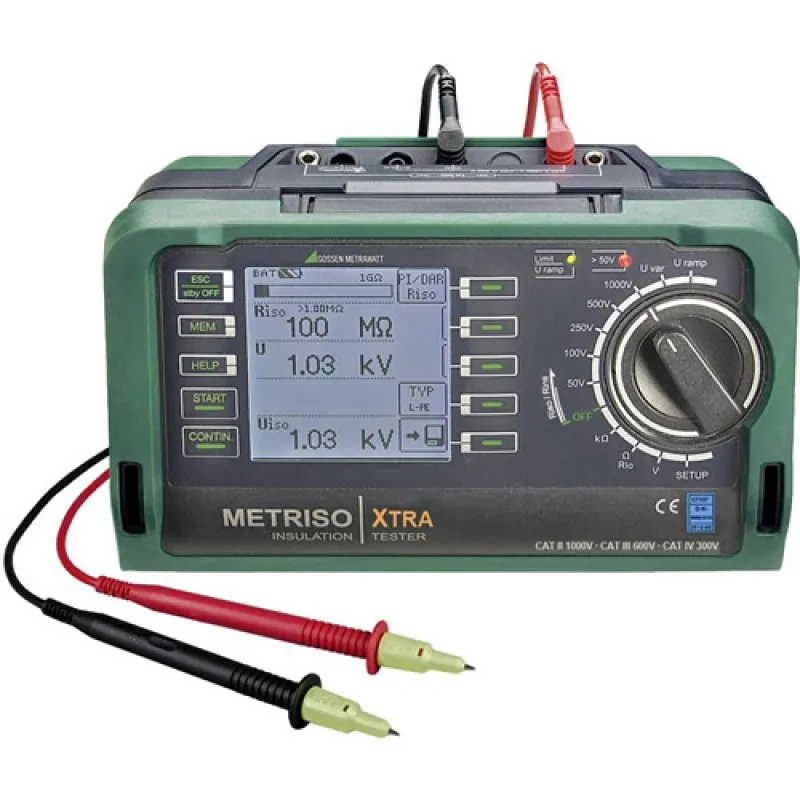

Gossen Metrawatt METRISO XTRA [M550S] 50V / 100V / 250V / 500V / 1000V Insulation and Resistance Tester

Gossen Metrawatt METRISO XTRA [M550S] 50V / 100V / 250V / 500V / 1000V Insulation and Resistance Tester
Gossen Metrawatt METRISO XTRA [M550S] 50V / 100V / 250V / 500V / 1000V Insulation and Resistance Tester
0 reviews • Write a review
from
Rp.36,500,0000
Ex Tax: Rp.36,500,0000
  • Brand: Gossen Metrawatt
  • Part Number: M550S
  • Availability: 3 - 4 WEEKS
  • Last Updated: 30 May 2024
Gossen Metrawatt Gossen Metrawatt
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Test voltage: 50 to 1000 V, test voltage in fixed steps, variable or as ramp, measuring range: 10 kOhm to 999 GOhm, polarization index measurement, voltage measurement up to 1000 V, resistance measurement: 10Ohm ... 10 kOhm, data storage in the device, connections: charging socket, USB port (slave) for data transmission to the PC, RS 232 port for barcode scanner, additional: USB cable

The insulation and resistance measuring instrument allows for quick and effective testing of protective measures in accordance with DIN VDE 0100, ÖVE-EN 1 (Austria), NIV/NIN SEV 1000 (Switzerland) and regulations specific to other countries as well

Features:

  • Insulation measurement per IEC/EN 61557-2
  • Test voltages in fixed increments, variable or as a ramp 50 V, 100 V, 250 V, 500 V, 1000 V
  • Polarization index and absorption ratio
  • Intelligent filter – measurement-dependent and precise activation for the measurement of very high resistances
  • Backlit dot matrix display for measured and limit values
  • Signalling of dangerous contact voltage
  • Acoustic signalling when limit value is exceeded
  • Detection of interference voltage in switch position OFF
  • Overvoltage protection Protects the instrument in the event of inadvertent connection to mains power
    • Fuse link for all resistance measuring ranges
    • Electronic fuse for the protection of low resistance and resistance measurement RLO and R
  • Low resistance mesurement per IEC 61557-4
  • Guard terminal for compensating surface current
  • Compact and rugged For service calls under harsh conditions
  • One measuring point self-test with test resistance of 10 MΩ per IEC/HD 60364-6 / EN 50110
  • Bidirectional interface to ETC (report generating software)

What's In The Box:
  • (1) Insulation and resistance measuring instrument
  • (1) AkkS calibration certificate
  • (1) Set of batteries
  • (1) Carrying strap
  • (1) Alligator clip
  • (1) Cable set KS17-4
  • (1) USB cable
  • (1) Condensed operating instructions
  • (1) Supplement Safety Information

Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
