Gossen Metrawatt METRAHIT H+E CAR Set [M227U] Insulation, Milliohmmeter, Multimeter

Gossen Metrawatt METRAHIT H+E CAR Set [M227U] Insulation, Milliohmmeter, Multimeter
Gossen Metrawatt METRAHIT H+E CAR Set [M227U] Insulation, Milliohmmeter, Multimeter
from
Rp.51,700,000
Ex Tax: Rp.51,700,000
  • Brand: Gossen Metrawatt
  • Part Number: M227U
  • Availability: 4 - 6 WEEKS
  • Last Updated: 30 May 2024
Tags: Fluke , Basic , Battery , Analyzer

In addition to a milliohmmeter and a multimeter, an insulation tester has been integrated into the METRAHIT 27 H+E CAR for measurements up through the gigaohm range. Especially where service and repairs in the field of aviation technology are involved, the instrument can be used in a broad range of applications.


Features:


  • Insulation resistance measurement 30.00 MOhm to 3.000 GOhm with adjustable test voltage
      of 50, 100, 250 or 500 V
  • Milliohmmeter
  • 3.000 mOhm to 300.00 mOhm with 1 A measuring current and
  • 30.00 mOhm to 30.00 Ohm with 200 mA measuring current
  • Kelvin connection (4-wire measurement)
  • Resistance measurement from 300 Ohm to 30 MOhm
  • Voltage measurement from 3 to 600 VDC and 3 to 600 VAC with 30.000 digits
  • Frequency measurement from 300 Hz to 3 kHz
  • DATA hold memory for up to 1200 measured values
  • Continuity and diode testing
  • Overload protection
  • DAkkS calibration certificate as standard feature
  • LCD including background illumination
  • provided with 3 rechargeable NiMH batteries and a charger as standard equipment

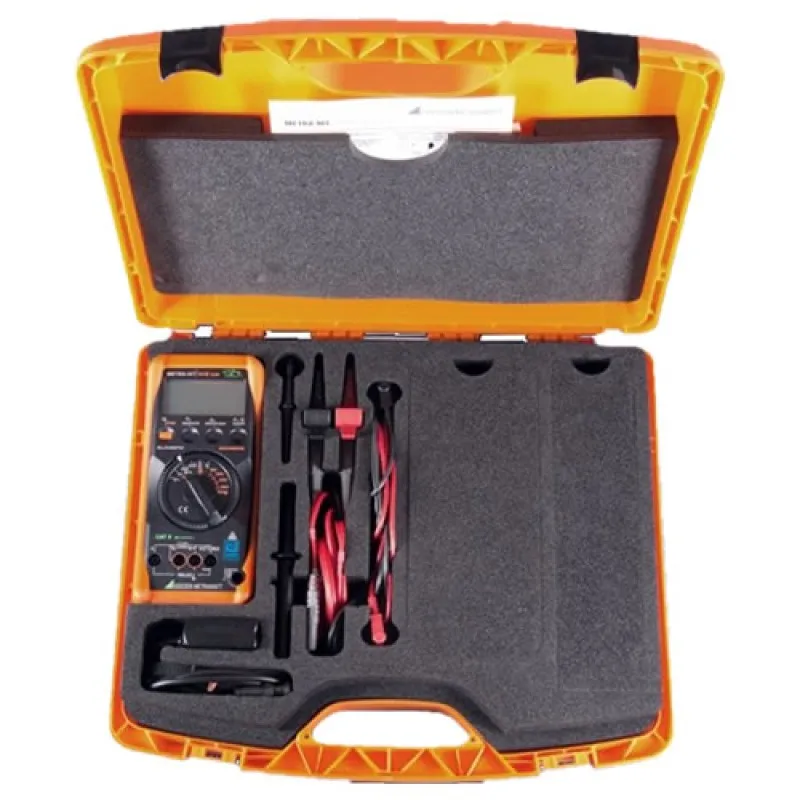

What's In The Box:

  • (1) METRA HIT H+E CAR
  • (1) Orange protective rubber cover
  • (3) Size AA NiMH storage batteries
  • (1) NA HIT 27 mains power battery charger
  • (1) Abbreviated operating instructions
  • (1) Operating instructions in German/English/French
  • (1) DAkkS calibration certificate
  • (1) Orange hybrid test case kit with
    • (1) Pair of fused test probes
    • (1) Pair of lantern fronted probes
    • (1) Pair of measuring cables (2 meters long)
    • (1) Pair of Kelvin measuring cables with crocodile clips

Brochure/Datasheet


Instruction manual
