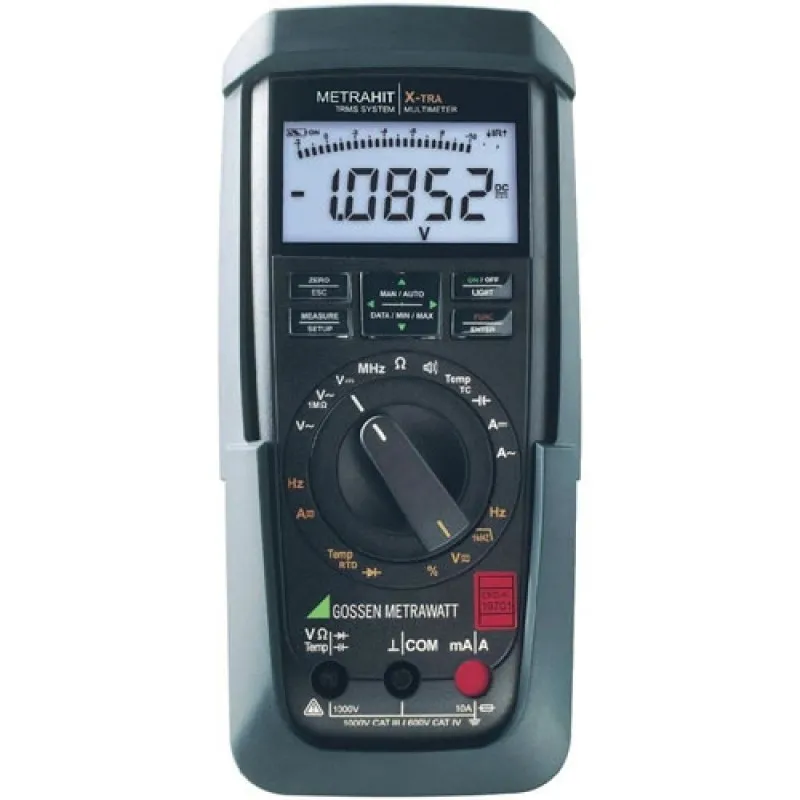

Gossen Metrawatt METRAHIT AM XTRA [M240A] TRMS System Multimeter

Gossen Metrawatt METRAHIT AM XTRA [M240A] TRMS System Multimeter
Gossen Metrawatt METRAHIT AM XTRA [M240A] TRMS System Multimeter
0 reviews • Write a review
from
Rp.21,500,0000
  • Brand: Gossen Metrawatt
  • Part Number: M240A
  • Availability: 2 - 4 WEEKS
  • Last Updated: 30 May 2024
Gossen Metrawatt Gossen Metrawatt
Add to Cart
Add to Wish List Compare this Product
Tags: Fluke , Basic , Battery , Analyzer

TRMS System Multimeter with Infrared Interface, ±12,000 Digits Our new STARLINE generation instruments, including METRAHIT BASE, PRO and X-TRA, are rugged, reliable digital multimeters with housings made of impact-resistant plastic. They feature a new design and are equipped with state-of-the-art technology. Applications The multimeter is suitable for universal use in electricalengineering, electrical installation, laboratory applications,telecommunication, training etc. The instrument can be used in the field and is equipped withinternal, mains-independent supply power. Features in detail Three Connector Jacks with Automatic Blocking Sockets (ABS)((Patented (patent no. DE 10 2005 062 624, US 7,439,725)) All current ranges are implemented via a single connector jack which prevents any possibility of operator error. Beyond this, the automatic blocking sockets prevent incorrect connection of the measurement cables, as well as selection of the wrong measured quantity. Danger to the user, the instrument and the device under test resulting from operator error is thus ruled out. Overload Protection The instrument is safeguarded for up to 1000 V in all measuring functions by overload protection. Voltages of greater than 1000 V and current of greater than 10 or 16 A are indicated acoustically. Dangerous contact voltages are indicated when the 1 kHz lowpass filter is activated. RMS Value with Distorted Waveshape The utilized measuring method allows for waveshape independent RMS measurement (TRMS AC and AC+DC) for voltage and current(up to 20 kHz). Activatable Filter for V AC Measurement A 1 kHz low-pass filter can be activated if required, for example when measuring motor voltage at electronic frequency converters. The input signal is checked by a voltage comparator for dangerous voltages as long as the low-pass filter is activated

Features:
  • Resolution: ± 12,000 digits, 4½-place
  • 3 connector jacks with patented automatic blocking sockets (ABS)
  • TRMS AC and AC / DC function
  • Voltage measurement with a basic accuracy­ of ±0.05% (V DC)
  • Automatic and manual measuring range selection
  • Automatic storage of measured values: DATA / MIN / MAX
  • Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic
      processes
  • Separate battery and fuse compartments
  • IP 52 protection against dust and water
  • Measuring categories: 1000 V CAT III and 600 V CAT IV
  • Made in Germany
  • DAkkS calibration certificate included

What's In The Box:
  • (1) Multimeter
  • (1) Pair of safety measurement cables (1.5 m) with 4 mm test probes, 1000 V CAT III, 600 V CAT IV (KS17-2)
  • (2) Batteries, 1.5 V, type AA
  • (1) Condensed operating instructions, English/German
  • (1) CD ROM, content: operating instructions in English and German)
  • (1) DAkkS calibration certificate
Brochure/Datasheet

Instruction manual

Note: Prices are not binding , subject to change without prior notice
