Global Water WL400 Vented Water Level & Temperature Sensor (46 Models In This Product Family)

Global Water WL400 Vented Water Level & Temperature Sensor (46 Models In This Product Family)
Global Water WL400 Vented Water Level & Temperature Sensor (46 Models In This Product Family)
0 reviews • Write a review
from
Rp.32,206,240
Global Water Instruments Global Water Instruments
Add to Cart
Add to Wish List Compare this Product
 Configure Options
Tags: Additel , Digital , Pressure , Calibrators

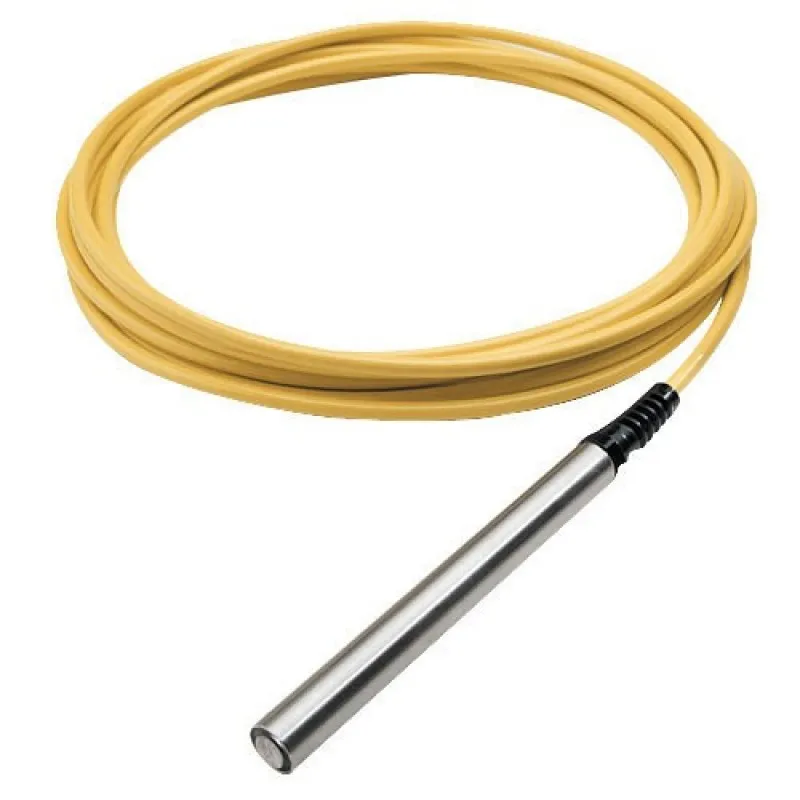

Global Water's WL400 Water Level Sensor provides highly accurate water level measurement for a wide variety of applications, including those in severe environments. The submersible pressure transducers have a dynamic temperature compensation system, enabling high accuracy measurements over a wide temperature range. The water level sensor is easily adapted to all dataloggers, telemetry, monitoring equipment, and displays. Each of the water level sensors consist of a solid state submersible pressure transducer encapsulated in a stainless steel 13/16 inch diameter housing. The water level sensor has a molded waterproof cable and a two-wire 4-20mA output for connection to a monitoring device. A 25 ft cable is standard, and optional cable lengths are available up to 500 ft. The Water Level Sensor's submersible pressure transducer is fully encapsulated with marine-grade epoxy so that moisture can never leak in or work its way down the vent tube to cause drift or level sensor failure. The sensor uses a unique, highly flexible silicon diaphragm to interface between water and the sensing element. This silicon diaphragm protects the water level sensor's electronics from moisture and provides each sensor with exceptional linearity and very low hysteresis. Water level ranges of 0-3, 0-15, 0-30, 0-60, 0-120, and 0-250 feet are available. The 0-3 ft low-level range is ideal for measuring shallow flows or small water level changes like those encountered in sewers, storm drains, weirs, and flumes. The 0-3 ft water monitoring sensor accurately measures small changes in water, even when the water's depth is only a few inches deep.

  WL400 with 0-3 ft. (0-0.9 m) range 0 Item Selected
Model
Product Name
Price
Available
Quantity
Global Water WL400 [400738-3] Vented Water Level & Temperature Sensor with 0-3 ft. (0 - 0.9 m) range, 3 ft. (0.9 m) cable
400738-3
Rp.32,595,360
4 - 6 WEEKS
Global Water WL400-3-25 [400738-25] Vented Water Level & Temperature Sensor with 0-3 ft. (0 - 0.9 m) range, 25 ft. (7.62 m) cable
400738-25
Rp.32,765,600
4 - 6 WEEKS
Global Water WL400-3-50 [400738-50] Vented Water Level & Temperature Sensor with 0-3 ft. (0 - 0.9 m) range, 50 ft. (15.24 m) cable
400738-50
Rp.35,003,040
4 - 6 WEEKS
Global Water WL400-3-75 [400738-75] Vented Water Level & Temperature Sensor with 0-3 ft. (0 - 0.9 m) Range, 75 ft. (22.86 m) Cable
400738-75
Rp.40,791,200
4 - 6 WEEKS
Global Water WL400-3-100 [400738-100] Vented Water Level & Temperature Sensor with 0-3 ft. (0 - 0.9 m) Range, 100 ft. (30.48 m) Cable
400738-100
Rp.44,633,760
4 - 6 WEEKS
Global Water WL400-3-125 [400738-125] Vented Water Level & Temperature Sensor with 0-3 ft. (0 - 0.9 m) Range, 125 ft. (38.1 m) Cable
400738-125
Rp.47,479,200
4 - 6 WEEKS
Global Water WL400-3-150 [400738-150] Vented Water Level & Temperature Sensor with 0-3 ft. (0 - 0.9 m) Range, 150 ft. (45.72 m) Cable
400738-150
Rp.50,057,120
4 - 6 WEEKS
Global Water WL400-3-200 [400738-200] Vented Water Level & Temperature Sensor with 0-3 ft. (0 - 0.9 m) Range, 200 ft. (60.96 m) Cable
400738-200
Rp.55,480,480
4 - 6 WEEKS
  WL400 with 0-15 ft. (4.6 m) range 0 Item Selected
  WL400 with 0-30 ft. (9.144 m) range 0 Item Selected
  WL400 with 0-60 ft. (18.288 m) range 0 Item Selected
  WL400 with 0-120 ft. (36.576 m) range 0 Item Selected
  WL400 with 0-250 ft. (0 - 76.2 m) range 0 Item Selected
