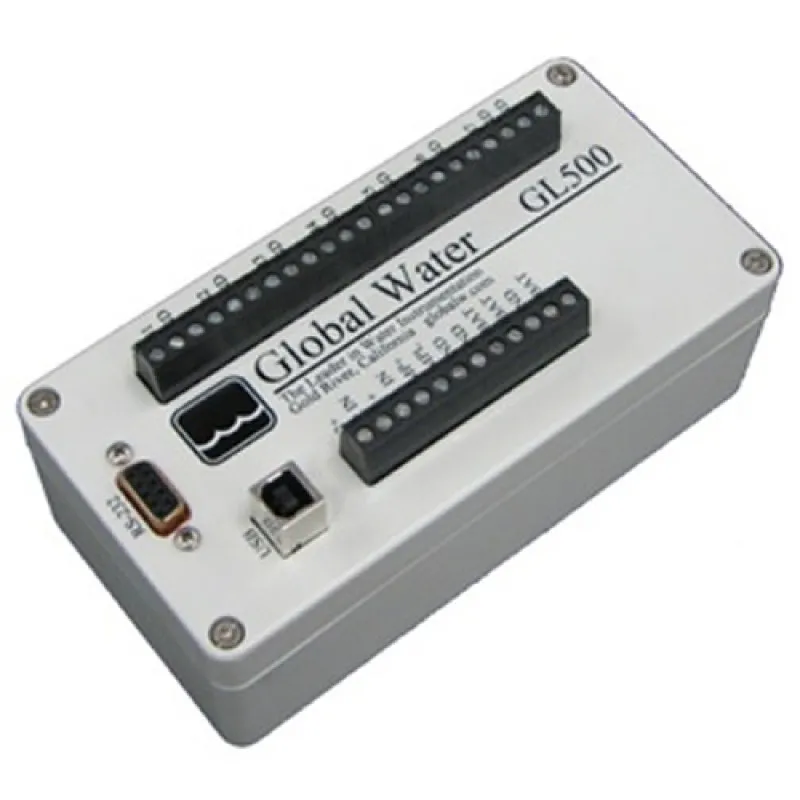

Global Water GL500 [FQ0000] Multi-Channel Data Logger

Global Water GL500 [FQ0000] Multi-Channel Data Logger
Global Water GL500 [FQ0000] Multi-Channel Data Logger
0 reviews • Write a review
from
Rp.21,995,0000
Ex Tax: Rp.21,995,0000
  • Brand: Global Water
  • Part Number: FQ0000
  • Availability: 2 - 4 WEEKS
  • Last Updated: 29 May 2024
Global Water Global Water
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

The Global Water GL500 multi-channel data logger features 7 analog channels and 2 digital channels for data recording. The GL500 can record over 40,000 readings and has four unique recording options, fast (10 samples per second), programmable interval (1 second to multiple years), logarithmic, and exception. The data logger also has a sample on demand input that triggers a recording of special events, such as when a water sampler was triggered, when a door was opened, etc. Daily start and stop alarm times can be programmed to limit recording intervals during a day. The GL500 includes Windows software, allowing easy upload of data to a laptop or desktop.

An optional version with integrated Bluetooth 2.0 allows users to access data and settings without the use of a custom connection cable. Using a laptop or desktop computer with Bluetooth capability, the data logger's data and settings can be viewed, stored and programmed using the Global Logger II desktop software package, as well as the Flow Monitor software. All of the features in these data logger software packages are available using the Bluetooth interface. Because the Bluetooth module draws power when turned on, the data logger features a power switch to turn it off when not in use.  A red LED indicates when the data logger's Bluetooth module is on and a blue LED shows the status of the Bluetooth connection.

The GL500 data logger is setup to accept any 4-20mA sensor and provides switched power to the sensors based on the sample interval and sensor warm up time settings. Twisted pair 2-wire and 3-wire sensors can be quickly connected to the data logger's terminal strip and calibrated via the Global data logger software. Sensors can be accessed through dial-out to a remote modem attached to the GL500's serial communication port. The data logger software has online help files that are easily accessed using drop down menus and links to quickly find the answers to questions.

Features:

  • Four sample modes: 10 times per second, timed, logarithmic, and exception
  • Both USB and Serial communication ports
  • Monitor up to 9 sensors at a time in addition to battery voltage
  • Battery powered for remote locations
  • User friendly Windows and PDA software included
  • Accepts any 4-20mA input
  • Optional rugged, lockable, weather resistant enclosure

    What's In The Box:

    • (1) User manual

            Brochure/Datasheet

            Instruction manual

            Note: Prices are not binding , subject to change without prior notice
