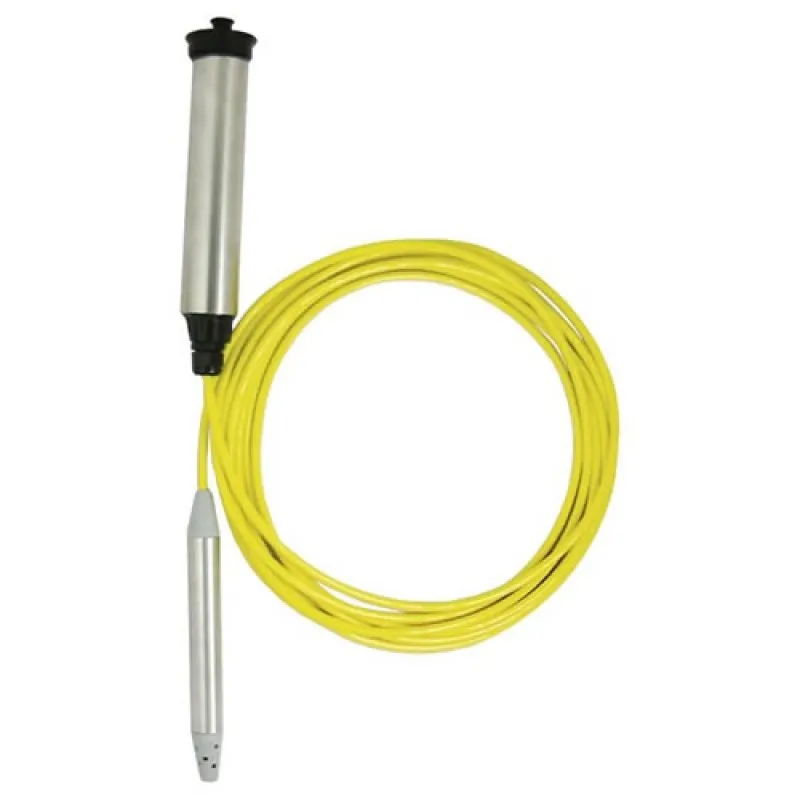

Global Water FL16U-003-025 [ARJ025] USB Flow Logger 0-3' Range, 25' Cable

Global Water FL16U-003-025 [ARJ025] USB Flow Logger 0-3' Range, 25' Cable
Global Water FL16U-003-025 [ARJ025] USB Flow Logger 0-3' Range, 25' Cable
0 reviews • Write a review
from
Rp.31,350,0000
Ex Tax: Rp.31,350,0000
  • Brand: Global Water
  • Part Number: ARJ025
  • Availability: 4 - 6 WEEKS
  • Last Updated: 29 May 2024
Global Water Global Water
Add to Cart
Add to Wish List Compare this Product
Tags: Additel , Digital , Pressure , Calibrators

Global Water's FL16 Water Flow Logger revolutionizes flow data collection for applications such as inflow & infiltration studies, stormwater and wastewater collection systems, open channels and a host of other gravity flow systems. The FL16 Water Flow Loggers will record over 81,000 depth, temperature, water flow and velocity readings in sewer and drainage pipes, as well as other open channel applications like flumes, weirs and square channels. The specially engineered, non-fouling water level sensor works in depths as little as 0.5 inch and allows for deployment in manholes and other difficult to access areas without the need to enter the confined space.

The FL16 Water Flow Recorder's vented water flow sensor is fully encapsulated with marine-grade epoxy.  The water flow sensor's electronics are encapsulated so that moisture can never leak in through O-ring seals or work its way into the vent tube and cause drift or sensor failure, as is the case with many other vented water flow sensors. The vent tube is sealed directly to the wet-wet sensing element, and any moisture that may enter the vent tube from the Water Flow Recorder's housing will only contact the ceramic parts, not the electronics.

FL16 Water Flow Recorder's user-friendly Windows-based software is tailored specifically for calculating water flows in partially filled sewer and drainage pipes using the Manning's Equation, with pull-down menus for selecting and entering the necessary information. The Water Flow Recorder software has a unique calibration feature which allows users to view calculated water velocity, compare this to actual measured data, and adjust the water flow parameters to calibrate for the water flow conditions of a specific application. Water flow equations for over 40 standard flumes and weirs are provided, as well as user-definable custom lookup tables which can be used to convert water level to flow for virtually any application. Once configured, all setup and water flow parameters are stored in the Water Flow Recorder's memory and are uploaded to the software automatically upon connection. This information can also be saved to a file for later use, allowing Water Flow Recorders to be deployed in multiple locations without the need to re-enter the water flow parameters each time the Water Flow Recorders are moved. The Water Flow Recorders operate on two standard 9 volt batteries, which they monitor so you are never caught off guard with dead batteries. A third onboard lithium battery ensures your data will be safe in the event you are unable to change the 9V batteries before they fail. An optional protective housing includes hardware for mounting the Water Flow Recorders to a manhole step or other structure and also allows for easy installation and replacement in the field.

Features:

  • Compact, self-powered and easy to use
  • No confined space entry required for sensor deployment
  • User friendly Windows and PDA software included
  • USB and Serial communication options available
  • PDA software simplifies field data collection
  • User programmable start and stop alarms, engineering units, and field calibration setup
  • Automatic barometric pressure and temperature compensation
  • Wet-wet transducer eliminates vent tube concerns

    What's In The Box:

    • (1) FL16S (Serial) or FL16U (USB) Data Logger
    • (1) FL16 Sewer Flow Level Sensor
    • (1) FL16 Flow Logger Manual
    • (1) FL16S comes with a RS-232 Serial Cable
    • (1) FL16U comes with a USB Cable, Type A to B
    • (1) Global Logger Interface Software on CDROM

            Brochure/Datasheet

            Instruction manual

            Note: Prices are not binding , subject to change without prior notice
