GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)

GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
GF Signet 4630 Chlorine Analyzer System (3 Models In This Product Family)
from
Rp.150,192,800
 Configure Options

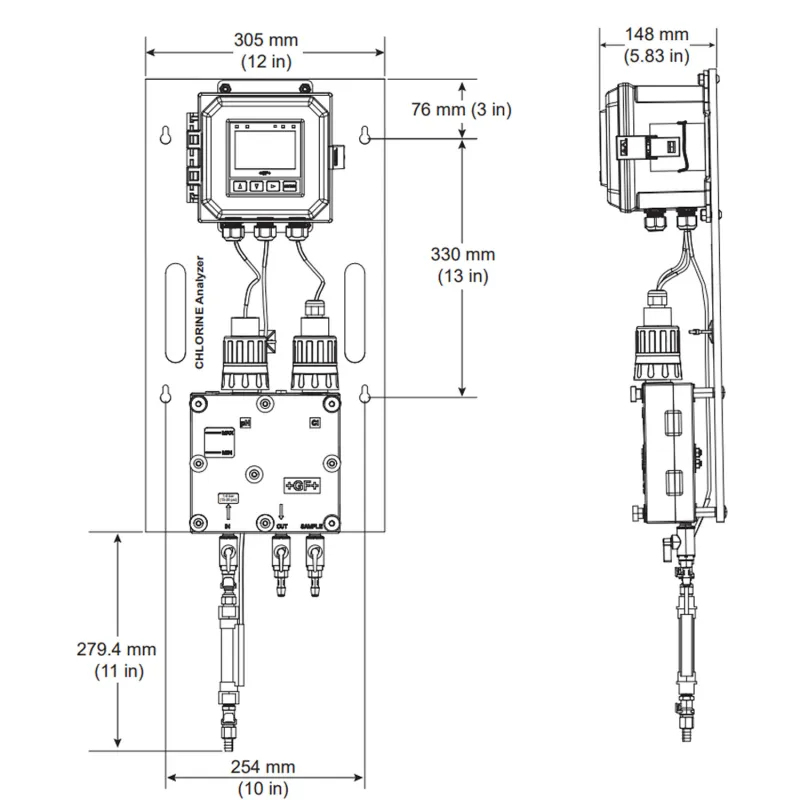

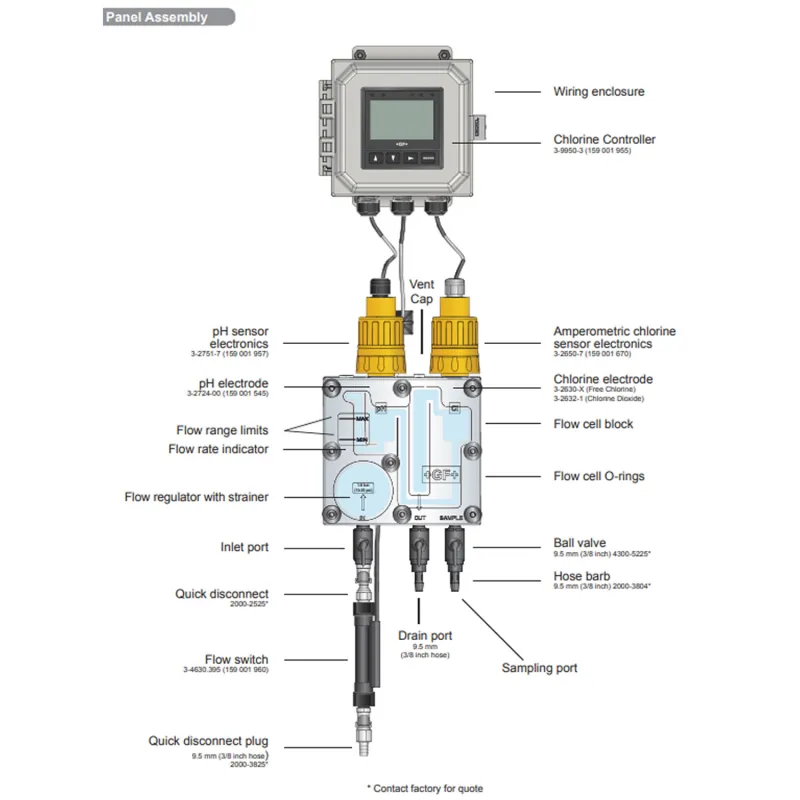

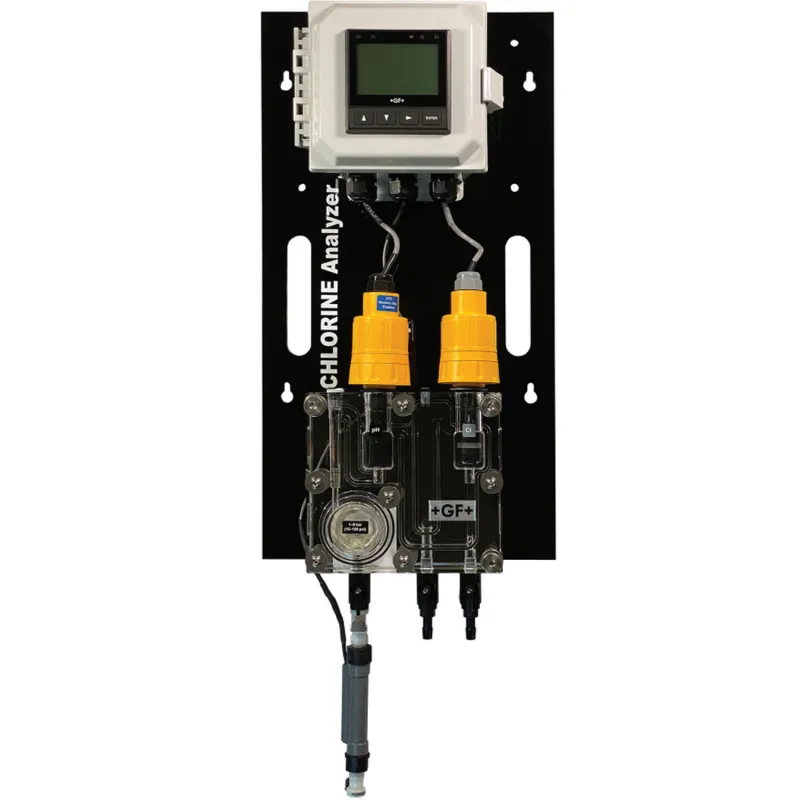

The GF 4630 Free Chlorine Analyzer System is an integrated all-in-one system designed to measure free chlorine. The 3-4630 Free Chlorine Analyzer with pH sensor is used to accurately calculate free chlorine in applications that have varying pH values (±0.20 pH units). The advanced 9950-3 Chlorine Controller includes a new feature called the "Chemical Guard" relay control. Because free chlorine concentration is pH dependent, the Chemical Guard feature interrupts/disables the relay that is assigned to the oxidant chemical (such as sodium hydrochloride) until the pH of the application is corrected. The 4630 series also comes complete with a flow switch that will disable the mechanical relays to the dosing pumps when the system is off or flow is interrupted to the flow cell. The unique integrated clear flow cell accommodates the free chlorine and pH electrode, flow regulator, filter and variable area flow indicator in one compact unit. An integrated flow regulator with removable filter accepts inlet pressures of 1 to 8 bar (15 to 120 psi), while maintaining constant flow and minimal pressure to the sensors. Water flows vertically into sensor tip eliminating bubble entrapment. The flow cell is designed to maintain a minimum amount of water to ensure sensors stay submerged, even when the system and flow is turned off. The 4630 Free Chlorine Analyzer System comes complete with everything needed to support chlorine monitoring for 1 full year of operation. Panel design allows quick and easy installation and comes complete with four 4 to 20 mA outputs, flow switch with relay interrupt, four binary inputs and two mechanical relays. The 9950-3 can also be used with the optional 3-9950.395-M (159 001 905) Modbus Module.

  Chlorine Sensor 0 Item Selected
Model
Product Name
Price
Available
Quantity
GF Signet  3-2630-1 [159 001 746] 4630 Free Chlorine Electrode, 0.02 to 2 ppm (mg/l)
GF Signet 3-2630-2 [159 001 662] 3260 Free Chlorine Electrode, 0.05 to 5 ppm (mg/l)
GF Signet 3-2630-3 [159 001 747] Free Chlorine Electrode, 0.1 to 20 ppm (mg/l)

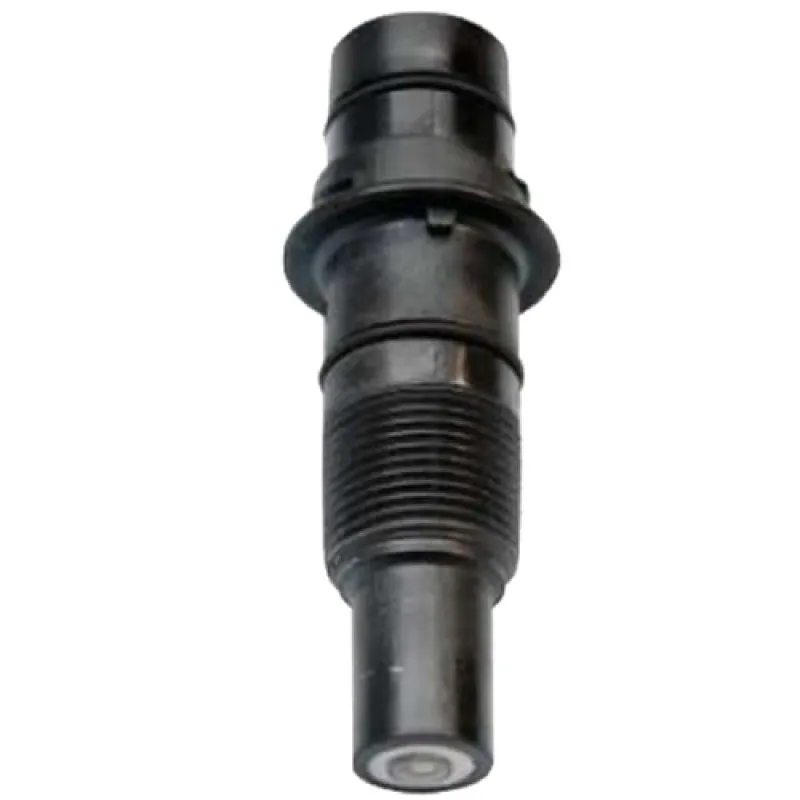

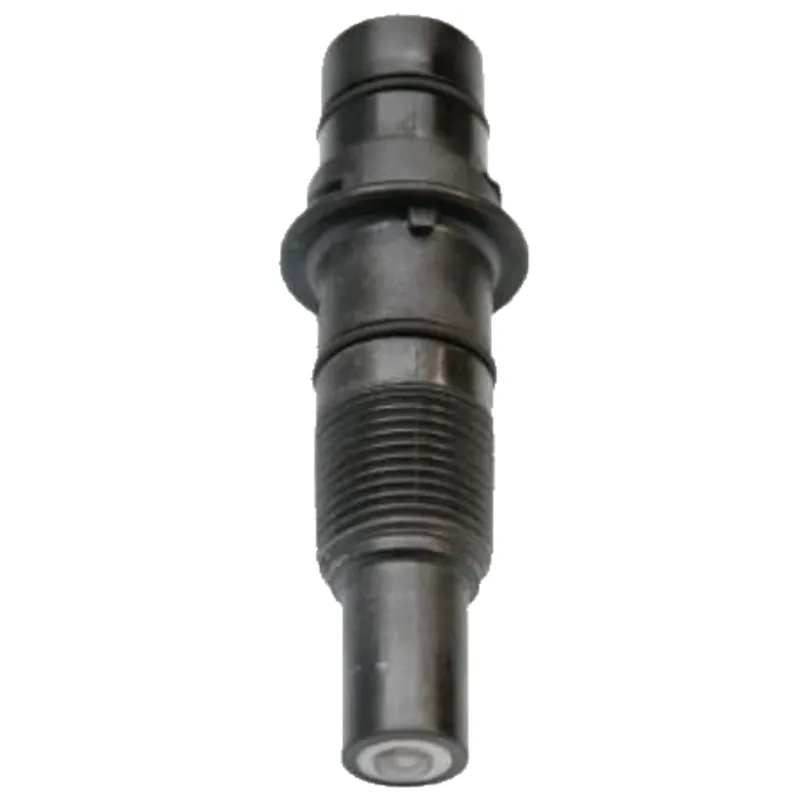

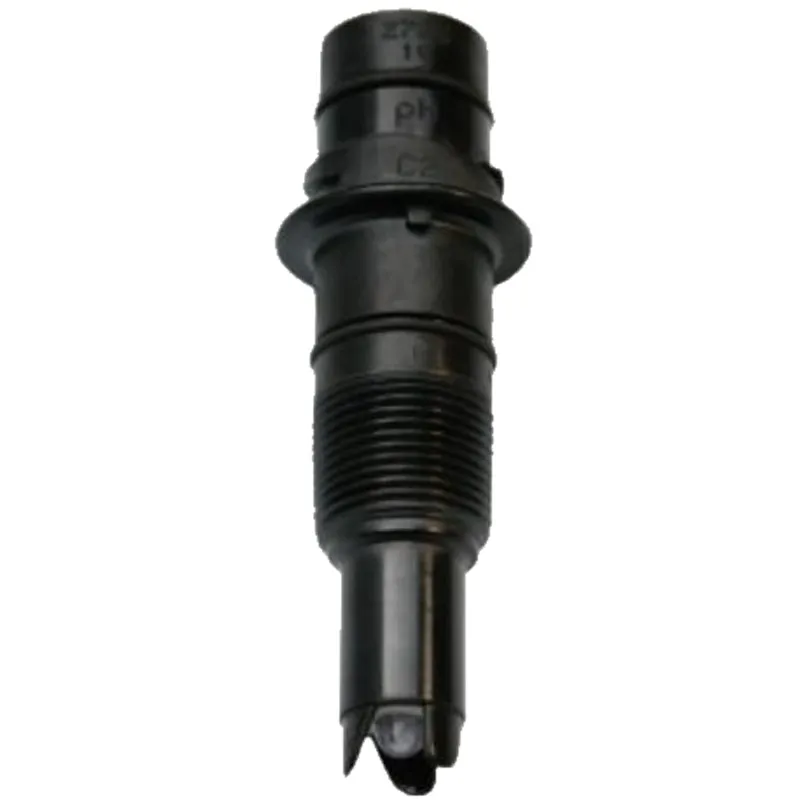

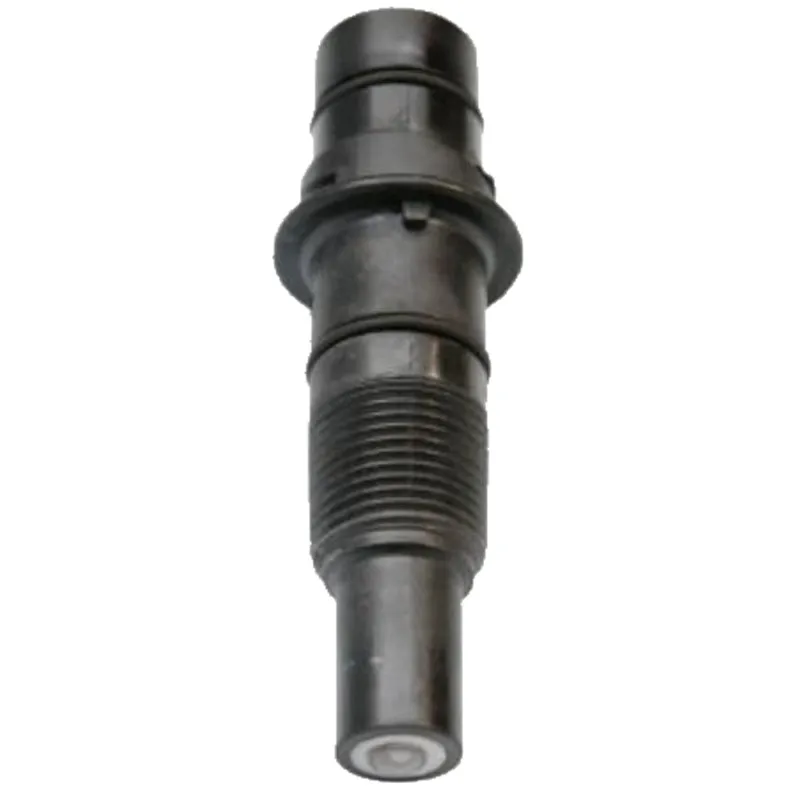

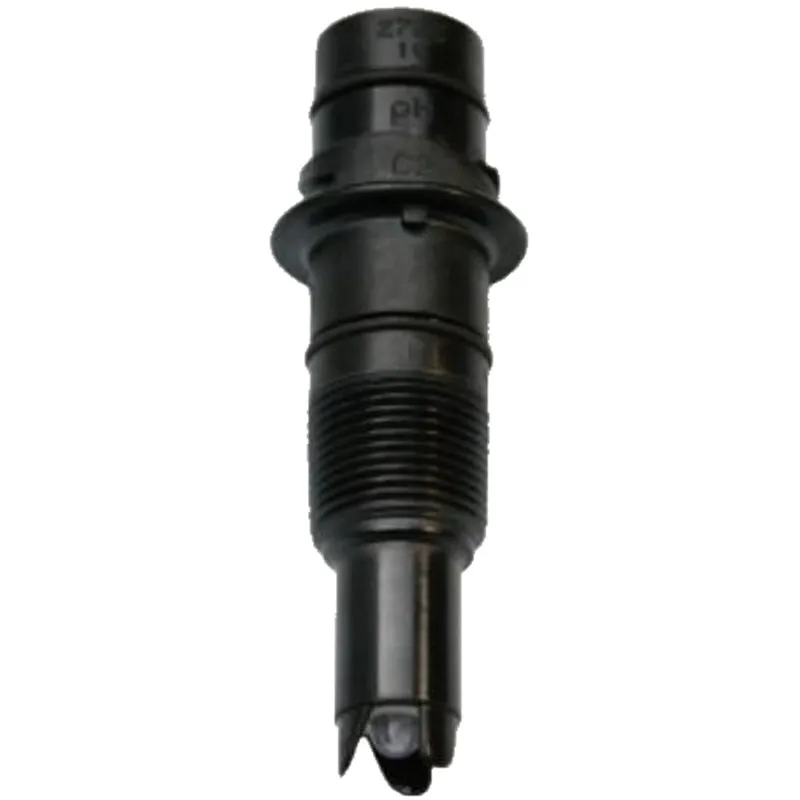

  pH and ORP Electrodes 0 Item Selected
  Accessories 0 Item Selected
